Monel Alloy 400 Socket Weld Fittings Manufacturer

  Home   Products

ASTM B564 Monel 400 Socket Weld 45 Deg Elbow, Monel Alloy 400 Socket Weld 90° Elbow, Monel UNS N04400 Socket Weld Cross, Nickel Alloy 400 Socket Weld Bend Manufacturer in India.

Unifit Metalloys Inc is an eminent manufacturer and stockist of Monel Alloy 400 Socket Weld Fittings, which is broadly used in different application in industries such as petrochemical, oil & gas, processing, etc. We provide a huge range of customized and standard Monel Alloy 400 Socket Weld Elbow Fittings to meet up with your different requirements. These Monel Alloy 400 Socket Weld Tee Fittings are being used amid the mass buyers and as well being used all over different industries. These Monel Alloy 400 Socket Weld Cross Fittings for all the time come in dissimilar classes, sizes and grades, making the sought after.

Socket Weld Fittings Manufacturing Factory

Socket Weld Fittings

Manufacturing Factory

Table of Contents

Nickel Alloy 400 Socket Weld Hex Plug, Monel UNS N04400 Socket Weld Union, Monel NW 4400 Socket Weld Hex Plug, Monel Alloy 400 Socket Weld Bends, Monel DIN 2.4066 Socket Weld Cap Supplier in Mumbai, India.

Monel Alloy 400 Socket Weld Fittings

Get a best quote for ANSI B16.11 ASTM B564 Monel Alloy 400 Socket Weld Fittings from Leading Manufacturer, Buy Monel 400 Socket Weld Elbow at Best Price in India.


We offer Monel Alloy 400 Socket Weld Cap Fittings at a very affordable and reasonable price to our esteemed clients. We offer Monel Alloy 400 Socket Weld Coupling Fittings in an exterior look of a hollow cylinder, by having concentric circles in its internal diameter of the cylinder. These Monel Alloy 400 Socket Weld Bend Fittings are designed and fabricated by using the qualitative class of steel throughout the procedures of production. Meanwhile, our Monel Alloy 400 Socket Weld Union Fittings are being designed with bigger accuracy and set wider applications in automotive, paper and print, engineering, and a lot of more industries. Available in different forms, Monel Alloy 400 Socket Weld Plug Fittings are extremely long-lasting and can as well fit in to any length with no trouble due to the accessibility of different sizes and shapes.

ASTM B564 Monel Alloy 400 Socket Weld Fittings Specification

Forged Fittings Specifications ASTM B564/ ASME SB564
400 Alloy Forged Fittings size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Monel 400 Forged Fittings Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Monel 400 Forged Fittings Types Socketweld Fittings, Screwed-Threaded Fittings
ASTM B564 400 Monel Forged Fittings Pressure Rating Threaded End-2000lb/ 3000lb/ 6000lbs
Socket-weld End-3000/ 6000/ 9000lbs
Monel 400 Forged Fittings Thread NPT, BSPT, BSPP
400 Monel Forged Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Monel Alloy 400 Forged Fittings Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of Socket Weld 90º Elbows, Socket Weld 45º Elbows, Socket Weld Tees, Socket Weld Cross, Socket Weld Couplings, Socket Weld Reducers, Socket Weld Inserts, Socket Weld Caps, Socket Weld Nipples, Socket Weld Unions, Socket Weld Equal Tees & Reducing Tees, Socket Weld Plugs
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASTM B564 Monel 400 Socket Weld Fittings

Products Size
ASTM B564 Monel Alloy 400 Socket Weld 90° Elbow ASTM B564 Monel Alloy 400 Socket Weld 45° Elbow Sizes 1/8″– 4″
Pressure Ratings –
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
ASTM B564 Monel Alloy 400 Socket Weld Adapters ASTM B564 Monel Alloy 400 Socket Weld Pipe Nipple
ASTM B564 Monel Alloy 400 Socket Weld Socket weld Cap ASTM B564 Monel Alloy 400 Socket Weld Coupling
ASTM B564 Monel Alloy 400 Socket Weld Forged Tee ASTM B564 Monel Alloy 400 Socket Weld Union
ASTM B564 Monel Alloy 400 Socket Weld Cross ASTM B564 Monel Alloy 400 Socket Weld Reducer Insert
ASTM B564 Monel Alloy 400 Socket Weld Branch Outlet ASTM B564 Monel Alloy 400 Socket Weld Street Elbow
ASTM B564 Monel Alloy 400 Socket Weld Pipe Nipple ASTM B564 Monel Alloy 400 Socket Weld Unequal Tee

ASTM B564 Monel 400 Socket Weld Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Monel 400 2.4066 N04400 NW 4400 NA 13 МНЖМц 28-2,5-1,5 NU-30M NiCu30Fe

Monel 400 Alloy Socket Weld Fittings Chemical Composition

Grade C Mn Si P S Cu Mo Ni Fe
Monel 400 0.30 max 2 max 0.50 max – 0.024 max 28 – 34 – 63.00 min 2.50 max

ASTM B564 Monel Alloy 400 Socket Weld Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.8 g/cm3 1350 °C (2550 °F) Psi – 80000 , MPa – 550 Psi – 35000 , MPa – 240 40 %

ASME SB564 Monel Alloy 400 Socket Weld Fittings Types

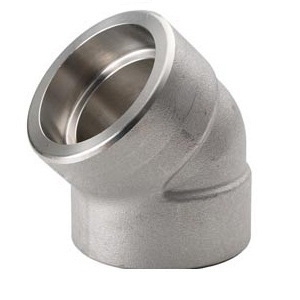

ASTM B564 Monel Alloy 400 45° Socket Weld Elbow
ASTM B564 Monel Alloy 400 45° Socket Weld Elbow

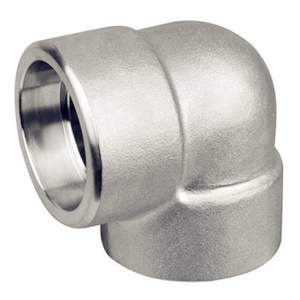

ASTM B564 Monel Alloy 400 90° Socket Weld Elbow
ASTM B564 Monel Alloy 400 90° Socket Weld Elbow

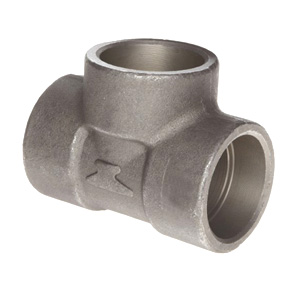

ASTM B564 Monel Alloy 400 Socket Weld Tee
ASTM B564 Monel Alloy 400 Socket Weld Equal Tee

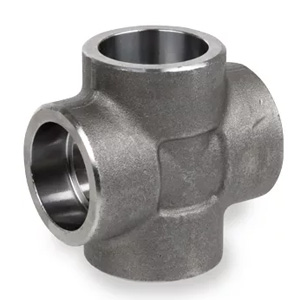

ASTM B564 Monel Alloy 400 Socket Weld Cross
ASTM B564 Monel Alloy 400 Socket Weld Cross

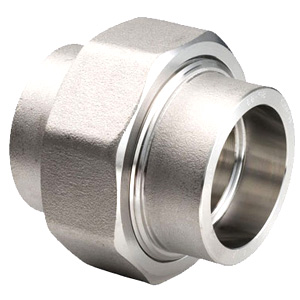

ASTM B564 Monel Alloy 400 Socket Weld Union
ASTM B564 Monel Alloy 400 Socket Weld Union

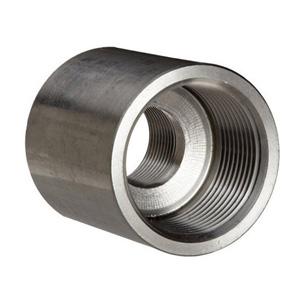

ASTM B564 Monel Alloy 400 Socket Weld Coupling
ASTM B564 Monel Alloy 400 Socket Weld Coupling

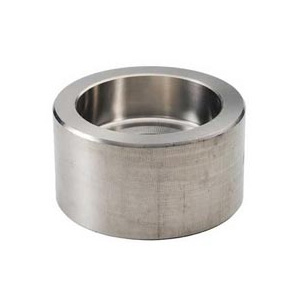

ASTM B564 Monel Alloy 400 Socket Weld Pipe End Cap
ASTM B564 Monel Alloy 400 Socket Weld Pipe End Cap
ASTM B564 Monel Alloy 400 Socket Weld Boss
ASTM B564 Monel Alloy 400 Socket Weld Boss
ASTM B564 Monel Alloy 400 Socket Weld Hex Plug
ASTM B564 Monel Alloy 400 Socket Weld Hex Plug
ASTM B564 Monel Alloy 400 Socket Weld Lateral Tee
ASTM B564 Monel Alloy 400 Socket Weld Lateral Tee

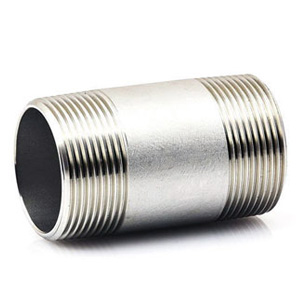

ASTM B564 Monel Alloy 400 Socket Weld Pipe Nipples
ASTM B564 Monel Alloy 400 Socket Weld Nipples

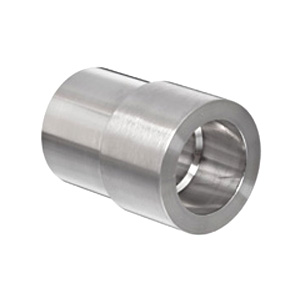

ASTM B564 Monel Alloy 400 Socket Weld Pipe Reducer Inserts
ASTM B564 Monel Alloy 400 Socket Weld Reducer Inserts

ASTM B564 Monel Alloy 400 Socket Weld Fittings Manufacturing Standards

ASTM B564 / SB564 Forged Fittings and valves and parts for high temperature service.
Standard Specification for Wrought Austenitic Alloy Steel Forged Fittings
BS21 Threading.
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B16.11 Forged steel fittings socket-welding and threaded.
Socket Welding and Threaded Forged Fittings
ANSI/ASME B1.20.1 Pipe threads, general purpose (inch).
ISO 4144 Stainless steel fittings threaded to ISO 7-1.
MSS SP-95 Swage(d) Nipples and Bull Plugs

Other Types of Monel 400 Socket Weld Fittings in Stock

  • Monel JIS NW 4400 Socket Weld Round Head Plug
  • UNS N04400 Socket Weld Equal Cross
  • Monel EN NiCu30Fe Socket Weld Tees
  • Nickel Alloy 400 Socket Weld Pipe Cap
  • Alloy 400 Socket Weld Welding Boss
  • ASTM B564 400 Monel Socket Weld Pipe Tee
  • GOST МНЖМц 28-2,5-1,5 Monel Socket Weld Cross
  • Monel Alloy 400 Socket Weld Bull Plug
  • Grade 400 Monel Socket Weld Unequal Cross
  • ASME SB564 Alloy 400 Socket Weld Elbow
  • Monel DIN 2.4066 Socket Weld Screwed Fittings
  • Monel BS NA 13 Socket Weld Street Elbow

Manufacturer and Supplier of ASTM B564 Monel Alloy 400 90°/45° Socket Weld Elbow in India, view weight chart & dimensions

B564 Monel Alloy 400 Socket Weld Fittings Class, Size & Wall Thickness

Description Class Designation
3000 6000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings,
Half-Couplings,
End or Pipe Caps		 1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
Pipe Size
by Wall Thickness		 SCH 80 / XS SCH 160 XXS

ASTM B564 Monel Alloy 400 Socket Weld Forged Fittings Size Range & Dimensions

DN-NPT MAJOR DIAMETER MM TAPPING /DRILL SIZE MM TPI PITCH MM
1/16″ 7.895 6.00 27 0.941
1/8″ 10.242 8.25 27 0.941
1/4″ 13.616 10.70 18 1.411
3/8″ 17.055 14.10 18 1.411
1/2″ 21.223 17.40 14 1.814
3/4″ 26.568 22.60 14 1.814
1″ 33.228 28.50 11.5 2.209
1¼” 41.985 37.00 11.5 2.209
1½” 48.054 43.50 11.5 2.209
2″ 60.092 55.00 11.5 2.209
2½” 72.699 65.50 8 3.175
3″ 88.608 81.50 8 3.175
3½” 101.316 94.30 8 3.175
4″ 113.973 107.00 8 3.175
5″ 141.300 134.384 8 3.175
6″ 168.275 161.191 8 3.175
8″ 219.075 211.673 8 3.175
10″ 273.050 265.311 8 3.175
12″ 323.850 315.793 8 3.175
Nominal Pipe Size Centre to End Elbows, Tee, Crosses A Centre to End 45º Elbows C Outside Diameter of Band H Minimum Wall Thickness G Lengths of Thread Min
2000# 3000# 6000# 2000# 3000# 6000# 2000# 3000# 6000# 2000# 3000# 6000# B L2
1/8 13/16 13/16 31/32 11/16 11/16 3/4 7/8 7/8 1 .125 .125 .250 .25 .2639
1/4 13/16 31/32 1-1/8 11/16 3/4 7/8 7/8 1 1-5/16 .125 .130 .260 .32 .4018
3/8 3/32 1-1/8 1-5/16 3/4 7/8 1 1 1-5/16 1-1/2 .125 .138 .275 .36 .4078
1/2 1-1/8 1-5/16 1-1/2 7/8 1 1-1/8 1-5/16 1-1/2 1-13/16 .125 .161 .321 .43 .5337
3/4 1-5/16 1-1/2 1-3/4 1 1-1/8 1-5/16 1-1/2 1-13/16 2-3/16 .123 .168 .336 .50 .5457
1 1-1/2 1-3/4 2 1-1/8 1-5/16 1-3/8 1-13/16 2-3/16 2-7/16 .145 .196 .391 .58 .6828
1-1/4 1-3/4 2 2-3/8 1-15/16 1-3/8 1-11/16 2-3/16 2-7/16 2-31/32 .153 .208 .417 .67 .7068
1-1/2 2 2-3/8 2-1/2 1-3/8 1-11/16 1-23/32 2-7/16 2-31/32 3-5/16 .158 .218 .436 .70 .7235
2 2-3/8 2-1/2 3-3/4 1-11/16 1-23/32 2-1/16 2-31/32 3-5/16 4 .168 .238 .476 .75 .7565
2-1/2 3 3-1/4 3-3/4 2-1/16 2-1/16 2-1/2 3-5/8 4 4 .221 .301 .602 .932 1.138
3 3-3/8 3-3/4 4-3/16 2-1/2 2-1/2 3-1/8 4-5/16 4-3/4 4-3/4 .236 .327 .655 1.016 1.200
4 3-3/16 4-1/2 4-1/2 3-1/8 3-1/8 3-1/8 5-3/4 5 6 .258 .368 .735 1.094 1.300
Nominal Pipe Size End to End Couplings W End to End Caps H Outside Diameter D End Wall Thickness G Min Length of Thead Min
3000# & 6000# 3000# 6000# 3000# 6000# 3000# 6000# B L2
1/8 1-1/4 3/4 5/8 7/8 3/16 .25 .2639
1/4 1-3/8 1 1-1/16 3/4 1 3/16 1/4 .32 .4018
3/8 1-1/2 1 1-1/16 7/8 1-1/4 3/16 1/4 .36 .4078
1/2 1-7/8 1-1/4 1-5/16 1-1/8 1-1/2 1/4 5/16 .43 .5337
3/4 2 1-7/16 1-1/2 1-3/8 1-3/4 1/4 5/16 .50 .5457
1 2-3/8 1-5/8 1-11/16 1-3/4 2-1/4 3/8 7/16 .58 .6828
1-1/4 2-5/8 1-3/4 1-13/16 2-1/4 2-1/2 3/8 7/16 .67 .7068
1-1/2 3-1/8 1-3/4 1-7/8 2-1/2 3 7/16 1/2 .70 .7235
2 3-3/8 1-7/8 2 3 3-5/8 1/2 5/8 .75 .7565
2-1/2 3-5/8 2-3/8 2-1/2 3-5/8 4-1/4 5/8 3/4 .932 1.138
3 4-1/4 2-9/16 2-11/16 4-1/4 5 3/4 7/8 1.016 1.200
4 4-3/4 2-11/16 2-15/16 5-1/2 6-1/4 7/8 1-1/8 1.094 1.300
