Alloy 20 Socket Weld Fittings Manufacturer

  Home   Products

ASTM B462 Alloy 20 Socket Weld Inserts, UNS N08020 Socket Weld Fittings, Carpenter 20Cb-3® Socket Weld Full Coupling, Alloy 20 Socket Weld Bushing, Carpenter 20 Forged Socket weld 90 deg. Elbow Manufacturer in India.

Unifit Metalloys Inc is an eminent exporter and seller of Alloy 20 Socket Weld Fittings, which are being manufactured by using best quality of steel. These Alloy 20 Socket Weld Elbow Fittings are subjected to a painstaking chemical scrutiny in the company of thorough mechanical and physical tests. The best quality of these Alloy 20 Socket Weld Tee Fittings is then cold-rolled and / or cold-drawn on draw benches in the company of accurate pull forces, squiring the preferred dimensions and a smooth finish. Whether it is the dimensional accuracy, welding integrity or surface finish, these Alloy 20 Socket Weld Cross Fittings meet up the supreme quality of standards.

Socket Weld Fittings Manufacturing Factory

Socket Weld Fittings

Manufacturing Factory

Table of Contents

EN NiCr20CuMo Socket weld Pipe 90 Deg Elbow, Alloy 20 Socketweld Bushing, Alloy 20 Socketweld Equal Cross, Carpenter 20Cb-3® Socket Weld Bends, WERKSTOFF NR. 2.4660 Socket Weld Fittings Supplier in Mumbai, India.

Alloy 20 Socket Weld Fittings

Get a best quote for ANSI B16.11 Alloy 20 Socket Weld Fittings from Leading Manufacturer, Buy Carpenter 20 Socket Weld Elbow at Best Price in India.


Our clients are able to rely on these Alloy 20 Socket Weld Cap Fittings for their important usages by means of an absolute peace of mind. After cutting to its different size, and depending on the clients’ specific requirements, these Alloy 20 Socket Weld Coupling Fittings are then straightened, solution-annealed, cut to final size, passivized, polished and pickled before it is subjected to different tests, marked and then released for shipment. By means of its desirable manufacturing infrastructure in Alloy 20 Socket Weld Union Fittings, huge experience and profundity in considerate of the subject matter, its abilities match in the company of the finest in business, internationally. With respect to the super soaring strength and corrosion-resistant features, these UNS N08020 Socket Weld Plug Fittings are just the right thing for oil and gas industry.

Alloy 20 Socket Weld Fittings Specification

Specifications ASTM B462/ ASME SB462
Socket Weld Forged Fittings Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Socket Weld Fittings Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Socket Weld Fittings Types Socketweld Fittings, Screwed-Threaded Fittings
ASTM B462 Socket Weld Forged Fittings Pressure Rating Socket-weld End-3000/ 6000/ 9000lbs
Socket Weld Forged Fittings Thread NPT, BSPT, BSPP
Socket Weld Forged Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Socket Weld Forged Fittings Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian
Specialized manufacturer of Socket Weld 90º Elbows, Socket Weld 45º Elbows, Socket Weld Tees, Socket Weld Cross, Socket Weld Couplings, Socket Weld Reducers, Socket Weld Inserts, Socket Weld Caps, Socket Weld Nipples, and Socket Weld Unions, Forged Pipe Fittings, Socket Weld & Threaded, Socket Weld Equal Tees & Socket Weld Reducing Tees, Socket Weld Plugs
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASTM B462 Carpenter 20 Socket Weld Fittings

Products Size
ASTM B462 Alloy 20 Socket Weld 90° Elbow ASTM B462 Alloy 20 Socket Weld 45° Elbow Sizes 1/8″– 4″
Pressure Ratings –
2000 LBS, 3000 LBS, 8250 LBS, 9000 LBS
ASTM B462 Alloy 20 Socket Weld Adapters ASTM B462 Alloy 20 Socket Weld Pipe Nipple
ASTM B462 Alloy 20 Socket Weld Socket weld Cap ASTM B462 Alloy 20 Socket Weld Coupling
ASTM B462 Alloy 20 Socket Weld Forged Tee ASTM B462 Alloy 20 Socket Weld Union
ASTM B462 Alloy 20 Socket Weld Cross ASTM B462 Alloy 20 Socket Weld Reducer Insert
ASTM B462 Alloy 20 Socket Weld Branch Outlet ASTM B462 Alloy 20 Socket Weld Street Elbow
ASTM B462 Alloy 20 Socket Weld Pipe Nipple ASTM B462 Alloy 20 Socket Weld Unequal Tee

ASTM B462 Alloy 20 Socket Weld Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS AFNOR EN
Alloy 20 2.4660 N08020 Z2NCUD31-20AZ NiCr20CuMo

UNS N08020 Alloy 20 Socket Weld Fittings Chemical Composition

Element C Mn Si S Cu Ni Cr Fe Mo P
Alloy 20 0.07 max 2.00 max 1.00 max 0.035 max 3.00 – 4.00 32.00 – 38.00 19.00 – 21.00 29.85 min* 2.00 – 3.00 0.045 max

ASTM B462 Alloy 20 Socket Weld Fittings Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.1 g/cm3 1443 °C (2430 °F) Psi - 35,000, MPa - 241 Psi -80,000, MPa -551 30 %

Alloy 20 Socket Weld Fittings Types

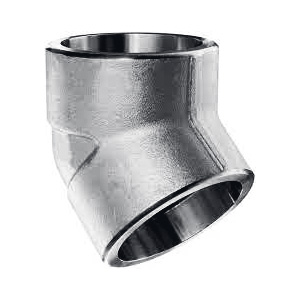

Alloy 20 45° Socket Weld Elbow
Alloy 20 45° Socket Weld Elbow

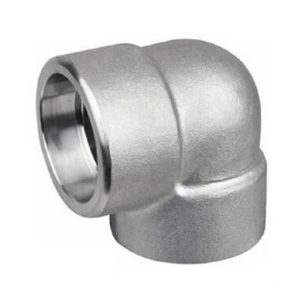

Alloy 20 90° Socket Weld Elbow
Alloy 20 90° Socket Weld Elbow

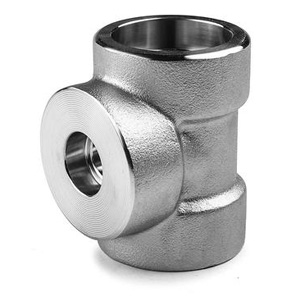

Alloy 20 Socket Weld Tee
Alloy 20 Socket Weld Tee

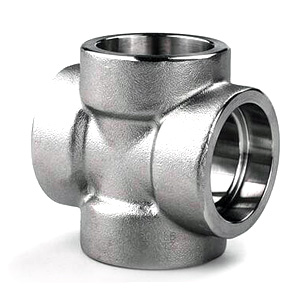

Alloy 20 Socket Weld Cross
Alloy 20 Socket Weld Cross

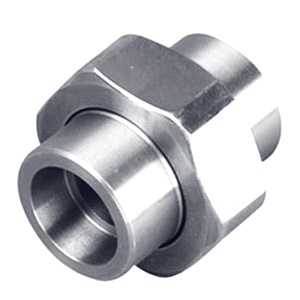

Alloy 20 Socket Weld Union
Alloy 20 Socket Weld Union

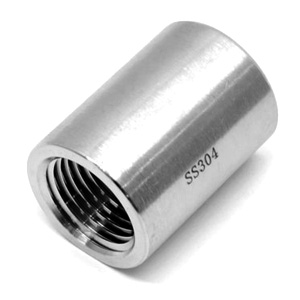

Alloy 20 Socket Weld Coupling
Alloy 20 Socket Weld Full Coupling

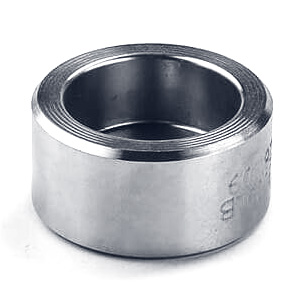

Alloy 20 Socket Weld Pipe End Cap
Alloy 20 Socket Weld Pipe End Cap

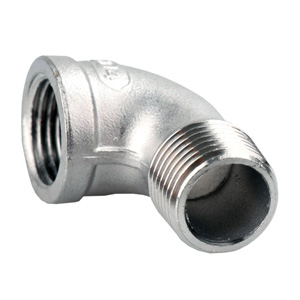

Alloy 20 Socket Weld Street Elbow
Alloy 20 Socket Weld Street Elbow

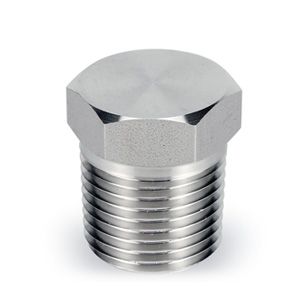

Alloy 20 Socket Weld Hex Plug
Alloy 20 Socket Weld Hex Plug

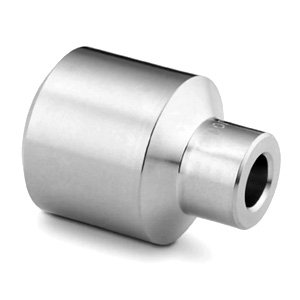

Alloy 20 Socket Weld Adapter
Alloy 20 Socket Weld Adapter

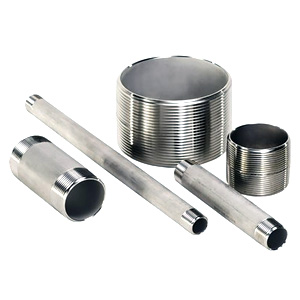

Alloy 20 Socket Weld Pipe Nipples
Alloy 20 Socket Weld Nipples

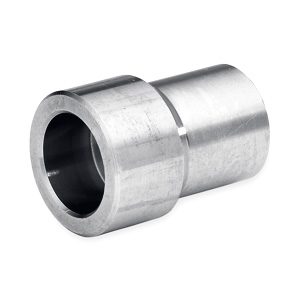

Alloy 20 Socket Weld Pipe Reducer Inserts
Alloy 20 Socket Weld Reducer Inserts

Alloy 20 Socket Weld Fittings Manufacturing Standards

ASTM B462 / SB462 Forged Fittings and valves and parts for high temperature service.
Standard Specification for Wrought Austenitic Super Duplex Steel Forged Fittings
BS21 Threading.
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B16.11 Forged steel fittings socket-welding and threaded.
Socket Welding and Threaded Forged Fittings
ANSI/ASME B1.20.1 Pipe threads, general purpose (inch).
ISO 4144 Super Duplex Steel fittings threaded to ISO 7-1.
MSS SP-95 Swage(d) Nipples and Bull Plugs

Other Types of Alloy 20 Socket Weld Fittings in Stock

  • Carpenter 20Cb-3® Socket Weld Square Head Plug
  • DIN 2.4660 Socket Weld Union
  • Carpenter 20 Socket Weld Tees
  • Alloy 20 Socket Weld Half Coupling
  • UNS N08020 Socket Weld Hex Nipple
  • AFNOR Z2NCUD31-20AZ Socket Weld Equal Cross
  • EN NiCr20CuMo Socket Weld Half Coupling
  • Alloy 20 Socket Weld Pipe Elbow
  • Alloy 20 Socket Weld Hex Head Bushing
  • Carpenter 20Cb-3® Socket Weld Reducing Cross

Manufacturer and Supplier of ASTM B462 Alloy 20 90°/45° Socket Weld Elbow in India, view weight chart & dimensions

ASTM B462 Alloy 20 Socket Weld Fittings Class, Size & Wall Thickness

Description Class Designation
3000 6000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings,
Half-Couplings,
End or Pipe Caps		 1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
Pipe Size
by Wall Thickness		 SCH 80 / XS SCH 160 XXS

SS ASTM B462 Alloy 20 Socket Weld Forged Fittings Size Range & Dimensions

DN-NPT MAJOR DIAMETER MM TAPPING /DRILL SIZE MM TPI PITCH MM
1/16″ 7.895 6.00 27 0.941
1/8″ 10.242 8.25 27 0.941
1/4″ 13.616 10.70 18 1.411
3/8″ 17.055 14.10 18 1.411
1/2″ 21.223 17.40 14 1.814
3/4″ 26.568 22.60 14 1.814
1″ 33.228 28.50 11.5 2.209
1¼” 41.985 37.00 11.5 2.209
1½” 48.054 43.50 11.5 2.209
2″ 60.092 55.00 11.5 2.209
2½” 72.699 65.50 8 3.175
3″ 88.608 81.50 8 3.175
3½” 101.316 94.30 8 3.175
4″ 113.973 107.00 8 3.175
5″ 141.300 134.384 8 3.175
6″ 168.275 161.191 8 3.175
8″ 219.075 211.673 8 3.175
10″ 273.050 265.311 8 3.175
12″ 323.850 315.793 8 3.175
Nominal Pipe Size Centre to End Elbows, Tee, Crosses A Centre to End 45º Elbows C Outside Diameter of Band H Minimum Wall Thickness G Lengths of Thread Min
2000# 3000# 6000# 2000# 3000# 6000# 2000# 3000# 6000# 2000# 3000# 6000# B L2
1/8 13/16 13/16 31/32 11/16 11/16 3/4 7/8 7/8 1 .125 .125 .250 .25 .2639
1/4 13/16 31/32 1-1/8 11/16 3/4 7/8 7/8 1 1-5/16 .125 .130 .260 .32 .4018
3/8 3/32 1-1/8 1-5/16 3/4 7/8 1 1 1-5/16 1-1/2 .125 .138 .275 .36 .4078
1/2 1-1/8 1-5/16 1-1/2 7/8 1 1-1/8 1-5/16 1-1/2 1-13/16 .125 .161 .321 .43 .5337
3/4 1-5/16 1-1/2 1-3/4 1 1-1/8 1-5/16 1-1/2 1-13/16 2-3/16 .123 .168 .336 .50 .5457
1 1-1/2 1-3/4 2 1-1/8 1-5/16 1-3/8 1-13/16 2-3/16 2-7/16 .145 .196 .391 .58 .6828
1-1/4 1-3/4 2 2-3/8 1-15/16 1-3/8 1-11/16 2-3/16 2-7/16 2-31/32 .153 .208 .417 .67 .7068
1-1/2 2 2-3/8 2-1/2 1-3/8 1-11/16 1-23/32 2-7/16 2-31/32 3-5/16 .158 .218 .436 .70 .7235
2 2-3/8 2-1/2 3-3/4 1-11/16 1-23/32 2-1/16 2-31/32 3-5/16 4 .168 .238 .476 .75 .7565
2-1/2 3 3-1/4 3-3/4 2-1/16 2-1/16 2-1/2 3-5/8 4 4 .221 .301 .602 .932 1.138
3 3-3/8 3-3/4 4-3/16 2-1/2 2-1/2 3-1/8 4-5/16 4-3/4 4-3/4 .236 .327 .655 1.016 1.200
4 3-3/16 4-1/2 4-1/2 3-1/8 3-1/8 3-1/8 5-3/4 5 6 .258 .368 .735 1.094 1.300
Nominal Pipe Size End to End Couplings W End to End Caps H Outside Diameter D End Wall Thickness G Min Length of Thead Min
3000# & 6000# 3000# 6000# 3000# 6000# 3000# 6000# B L2
1/8 1-1/4 3/4 5/8 7/8 3/16 .25 .2639
1/4 1-3/8 1 1-1/16 3/4 1 3/16 1/4 .32 .4018
3/8 1-1/2 1 1-1/16 7/8 1-1/4 3/16 1/4 .36 .4078
1/2 1-7/8 1-1/4 1-5/16 1-1/8 1-1/2 1/4 5/16 .43 .5337
3/4 2 1-7/16 1-1/2 1-3/8 1-3/4 1/4 5/16 .50 .5457
1 2-3/8 1-5/8 1-11/16 1-3/4 2-1/4 3/8 7/16 .58 .6828
1-1/4 2-5/8 1-3/4 1-13/16 2-1/4 2-1/2 3/8 7/16 .67 .7068
1-1/2 3-1/8 1-3/4 1-7/8 2-1/2 3 7/16 1/2 .70 .7235
2 3-3/8 1-7/8 2 3 3-5/8 1/2 5/8 .75 .7565
2-1/2 3-5/8 2-3/8 2-1/2 3-5/8 4-1/4 5/8 3/4 .932 1.138
3 4-1/4 2-9/16 2-11/16 4-1/4 5 3/4 7/8 1.016 1.200
4 4-3/4 2-11/16 2-15/16 5-1/2 6-1/4 7/8 1-1/8 1.094 1.300
