Hastelloy C22 Socket Weld Fittings Manufacturer

  Home   Products

EN NiCr21Mo14W Socket Weld Coupling, WERKSTOFF NR. 2.4602 Socket Weld Boss, C22 Hastelloy Forged Socket weld 90 deg. Elbow, ASTM B564 C-22 Hastelloy Bushing, Hastelloy C22 Socket weld Pipe Elbow Manufacturer in India.

Unifit Metalloys Inc is an eminent exporter and manufacturer of Hastelloy Alloy C22 Socket Weld Fittings, which provide higher temperature strength. These Hastelloy Alloy C22 Socket Weld Elbow Fittings are in the outline of burners, boiler parts, injector nozzles in molten compounds, metal to glass bonding parts, thermocouple protectors, and flame rods. We offer these Alloy C22 Socket Weld Tee Fittings in different grades, sizes and specifications to suit the requirements given by the clients. We also offer these Hastelloy C22 Socket Weld Cross Fittings at highly competitive rates in the market.

Socket Weld Fittings Manufacturing Factory

Socket Weld Fittings

Manufacturing Factory

Table of Contents

Hastelloy C22 Socket Weld 45 Deg Elbow, ASME B16.11 Alloy C22 S/W Reducer Insert, Hastelloy® Alloy C22 Socket Weld Bends, UNS N06022 Socket Weld Union, Alloy C22 Socket Weld Lateral Tee Supplier in Mumbai, India.

Hastelloy C22 Socket Weld Fittings

Get a best quote for ANSI B16.11 ASTM B564 Hastelloy C22 Socket Weld Fittings from Leading Manufacturer, Buy Hastelloy® Alloy C22 Socket Weld Elbow at Best Price in India.


Hastelloy Alloy C22 Socket Weld Cap Fittings is being used in different types of industries such as pumps & petrochemicals, sugar mills, cement & construction industries, and so on. Hastelloy Alloy C22 Socket Weld Coupling Fittings are very economical, making our products truly valuable among clients. In addition, Hastelloy Alloy C22 Socket Weld Bend Fittings are also available in different specifications and designs as per requirements of our clients. Our range of Hastelloy C22 Socket Weld Union Fittings is always recognized for their several characteristics such as durable and reliable finish, sturdy construction, non-corrosive, and easy to install. This premium quality of Hastelloy Alloy C22 Socket Weld Plug Fittings is at length used in industries like chemical, engineering, sugar, pharmaceutical and sugar.

ASTM B564 Hastelloy C22 Socket Weld Fittings Specification

Specifications ASTM B564 / ASME SB564
Socket Weld Fittings size 1/8” NB to 4” NB
Socket Weld Fittings Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Pressure Rating Socket Weld end - 3000lb/ 6000lb/ 9000lbs
Socket Weld Fittings Manufacturing process Push, Press, Forge, Cast, etc.
Specialized manufacturer of Socket Weld 90º Elbows, Socket Weld 45º Elbows, Socket Weld Tees, Socket Weld Cross, Socket Weld Couplings, Socket Weld Reducers, Socket Weld Inserts, Socket Weld Caps, Socket Weld Nipples, Socket Weld Unions, Socket Weld Equal Tees & Reducing Tees, Socket Weld Plugs
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Socket Weld Fittings uses & application
  • Socket Weld Fitting To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • Hastelloy C22 SW Fitting also have a thicker wall for higher-pressure applications.
  • ASTM B564 Hastelloy C22 Socket Weld Fittings are an economical alternative for lower-pressure applications.
Material Test Certificates (MTC) for B564 Hastelloy C22 Socket Weld Fittings as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASTM B564 Hastelloy C22 Socket Weld Fittings

Products Size
ASTM B564 Hastelloy C22 Socket Weld 90° Elbow ASTM B564 Hastelloy C22 Socket Weld 45° Elbow Sizes 1/8″– 4″
Pressure Ratings –
2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
ASTM B564 Hastelloy C22 Socket Weld Adapters ASTM B564 Hastelloy C22 Socket Weld Pipe Nipple
ASTM B564 Hastelloy C22 Socket Weld Socket weld Cap ASTM B564 Hastelloy C22 Socket Weld Coupling
ASTM B564 Hastelloy C22 Socket Weld Forged Tee ASTM B564 Hastelloy C22 Socket Weld Union
ASTM B564 Hastelloy C22 Socket Weld Cross ASTM B564 Hastelloy C22 Socket Weld Reducer Insert
ASTM B564 Hastelloy C22 Socket Weld Branch Outlet ASTM B564 Hastelloy C22 Socket Weld Street Elbow
ASTM B564 Hastelloy C22 Socket Weld Pipe Nipple ASTM B564 Hastelloy C22 Socket Weld Unequal Tee

ASTM B564 Hastelloy C22 Socket Weld Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS EN
Hastelloy C22 2.4602 N06022 NW 6022 NiCr21Mo14W

Hastelloy C22 Alloy Socket Weld Fittings Chemical Composition

Grade C Mn Si P S Co Mo Ni Fe Cr
Hastelloy C22 0.10 max 0.50 max 0.08 max 0.02 max 0.02 max 2.50 max 12.50 – 14.50 50.015 min* 2.00 – 6.00 20.00 – 22.50

ASTM B564 Hastelloy C22 Socket Weld Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
C-22 Alloy 8.69 g/cm3 1399 °C (2550 °F) Psi – 1,00,000 , MPa – 690 Psi – 45000 , MPa – 310 45 %

ASME SB564 Hastelloy C22 Socket Weld Fittings Types

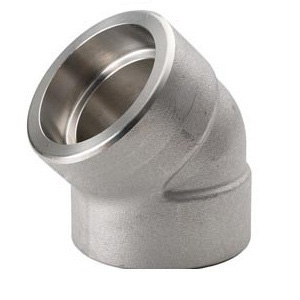

ASTM B564 Hastelloy C22 45° Socket Weld Elbow
ASTM B564 Hastelloy C22 45° Socket Weld Elbow

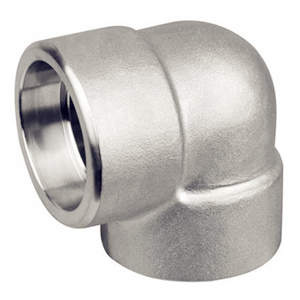

ASTM B564 Hastelloy C22 90° Socket Weld Elbow
ASTM B564 Hastelloy C22 90° Socket Weld Elbow

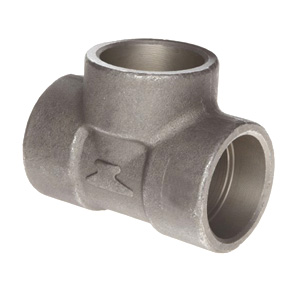

ASTM B564 Hastelloy C22 Socket Weld Tee
ASTM B564 Hastelloy C22 Socket Weld Equal Tee

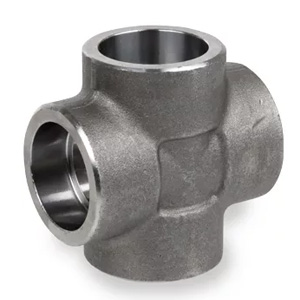

ASTM B564 Hastelloy C22 Socket Weld Cross
ASTM B564 Hastelloy C22 Socket Weld Cross

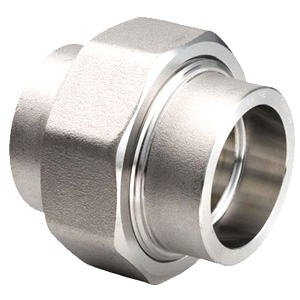

ASTM B564 Hastelloy C22 Socket Weld Union
ASTM B564 Hastelloy C22 Socket Weld Union

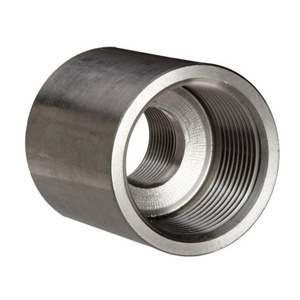

ASTM B564 Hastelloy C22 Socket Weld Coupling
ASTM B564 Hastelloy C22 Socket Weld Coupling
ASTM B564 Hastelloy C22 Socket Weld Hex Plug
ASTM B564 Hastelloy C22 Socket Weld Hex Plug
ASTM B564 Hastelloy C22 Socket Weld Lateral Tee
ASTM B564 Hastelloy C22 Socket Weld Lateral Tee
ASTM B564 Hastelloy C22 Socket Weld Pipe Nipples
ASTM B564 Hastelloy C22 Socket Weld Nipples

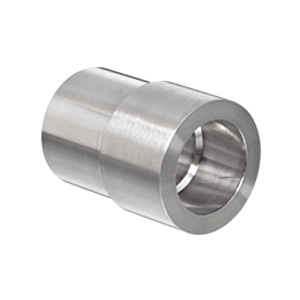

ASTM B564 Hastelloy C22 Socket Weld Pipe Reducer Inserts
ASTM B564 Hastelloy C22 Socket Weld Reducer Inserts

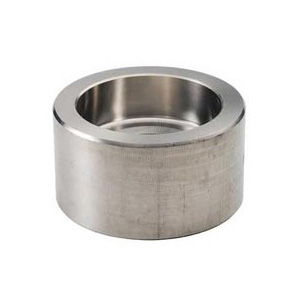

ASTM B564 Hastelloy C22 Socket Weld Pipe End Cap
ASTM B564 Hastelloy C22 Socket Weld Pipe End Cap

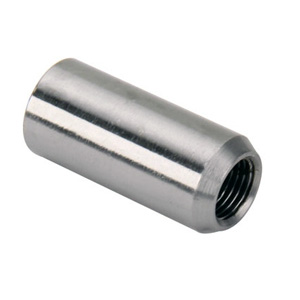

ASTM B564 Hastelloy C22 Socket Weld Boss
ASTM B564 Hastelloy C22 Socket Weld Boss

ASTM B564 Hastelloy C22 Socket Weld Fittings Manufacturing Standards

ASTM B564 / SB564 Forged Fittings and valves and parts for high temperature service.
Standard Specification for Wrought Austenitic Alloy Steel Forged Fittings
BS21 Threading.
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ANSI B16.11 Forged steel fittings socket-welding and threaded.
Socket Welding and Threaded Forged Fittings
ANSI/ASME B1.20.1 Pipe threads, general purpose (inch).
ISO 4144 Stainless steel fittings threaded to ISO 7-1.
MSS SP-95 Swage(d) Nipples and Bull Plugs

Other Types of Hastelloy C22 Socket Weld Fittings in Stock

  • EN NiCr21Mo14W Socket Weld Tees
  • Hastelloy Alloy C22 Socket Weld Lateral Tee
  • ANSI B16.11 Hastelloy C22 Socket Weld Welding Boss
  • Hastelloy® Alloy C22 Socket Weld Fittings
  • UNS N06022 Socket Weld Equal Cross
  • Alloy C22 Socket Weld Boss
  • WNR. 2.4066 Socket Weld Screwed Fittings
  • Hastelloy C22 Socket Weld Bend
  • Hastelloy C22 Socket Weld Bushing
  • Hastelloy® Alloy C22 Socket Weld Pipe Elbow
  • C22 Hastelloy Socket Weld Cross
  • Alloy C22 Socket Weld Round Head Plug

Manufacturer and Supplier of ASTM B564 Hastelloy C22 90°/45° Socket Weld Elbow in India, view weight chart & dimensions

B564 Hastelloy C22 Socket Weld Fittings Class, Size & Wall Thickness

Description Class Designation
3000 6000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings,
Half-Couplings,
End or Pipe Caps		 1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
Pipe Size
by Wall Thickness		 SCH 80 / XS SCH 160 XXS

ASTM B564 Hastelloy C22 Socket Weld Forged Fittings Size Range & Dimensions

DN-NPT MAJOR DIAMETER MM TAPPING /DRILL SIZE MM TPI PITCH MM
1/16″ 7.895 6.00 27 0.941
1/8″ 10.242 8.25 27 0.941
1/4″ 13.616 10.70 18 1.411
3/8″ 17.055 14.10 18 1.411
1/2″ 21.223 17.40 14 1.814
3/4″ 26.568 22.60 14 1.814
1″ 33.228 28.50 11.5 2.209
1¼” 41.985 37.00 11.5 2.209
1½” 48.054 43.50 11.5 2.209
2″ 60.092 55.00 11.5 2.209
2½” 72.699 65.50 8 3.175
3″ 88.608 81.50 8 3.175
3½” 101.316 94.30 8 3.175
4″ 113.973 107.00 8 3.175
5″ 141.300 134.384 8 3.175
6″ 168.275 161.191 8 3.175
8″ 219.075 211.673 8 3.175
10″ 273.050 265.311 8 3.175
12″ 323.850 315.793 8 3.175
Nominal Pipe Size Centre to End Elbows, Tee, Crosses A Centre to End 45º Elbows C Outside Diameter of Band H Minimum Wall Thickness G Lengths of Thread Min
2000# 3000# 6000# 2000# 3000# 6000# 2000# 3000# 6000# 2000# 3000# 6000# B L2
1/8 13/16 13/16 31/32 11/16 11/16 3/4 7/8 7/8 1 .125 .125 .250 .25 .2639
1/4 13/16 31/32 1-1/8 11/16 3/4 7/8 7/8 1 1-5/16 .125 .130 .260 .32 .4018
3/8 3/32 1-1/8 1-5/16 3/4 7/8 1 1 1-5/16 1-1/2 .125 .138 .275 .36 .4078
1/2 1-1/8 1-5/16 1-1/2 7/8 1 1-1/8 1-5/16 1-1/2 1-13/16 .125 .161 .321 .43 .5337
3/4 1-5/16 1-1/2 1-3/4 1 1-1/8 1-5/16 1-1/2 1-13/16 2-3/16 .123 .168 .336 .50 .5457
1 1-1/2 1-3/4 2 1-1/8 1-5/16 1-3/8 1-13/16 2-3/16 2-7/16 .145 .196 .391 .58 .6828
1-1/4 1-3/4 2 2-3/8 1-15/16 1-3/8 1-11/16 2-3/16 2-7/16 2-31/32 .153 .208 .417 .67 .7068
1-1/2 2 2-3/8 2-1/2 1-3/8 1-11/16 1-23/32 2-7/16 2-31/32 3-5/16 .158 .218 .436 .70 .7235
2 2-3/8 2-1/2 3-3/4 1-11/16 1-23/32 2-1/16 2-31/32 3-5/16 4 .168 .238 .476 .75 .7565
2-1/2 3 3-1/4 3-3/4 2-1/16 2-1/16 2-1/2 3-5/8 4 4 .221 .301 .602 .932 1.138
3 3-3/8 3-3/4 4-3/16 2-1/2 2-1/2 3-1/8 4-5/16 4-3/4 4-3/4 .236 .327 .655 1.016 1.200
4 3-3/16 4-1/2 4-1/2 3-1/8 3-1/8 3-1/8 5-3/4 5 6 .258 .368 .735 1.094 1.300
Nominal Pipe Size End to End Couplings W End to End Caps H Outside Diameter D End Wall Thickness G Min Length of Thead Min
3000# & 6000# 3000# 6000# 3000# 6000# 3000# 6000# B L2
1/8 1-1/4 3/4 5/8 7/8 3/16 .25 .2639
1/4 1-3/8 1 1-1/16 3/4 1 3/16 1/4 .32 .4018
3/8 1-1/2 1 1-1/16 7/8 1-1/4 3/16 1/4 .36 .4078
1/2 1-7/8 1-1/4 1-5/16 1-1/8 1-1/2 1/4 5/16 .43 .5337
3/4 2 1-7/16 1-1/2 1-3/8 1-3/4 1/4 5/16 .50 .5457
1 2-3/8 1-5/8 1-11/16 1-3/4 2-1/4 3/8 7/16 .58 .6828
1-1/4 2-5/8 1-3/4 1-13/16 2-1/4 2-1/2 3/8 7/16 .67 .7068
1-1/2 3-1/8 1-3/4 1-7/8 2-1/2 3 7/16 1/2 .70 .7235
2 3-3/8 1-7/8 2 3 3-5/8 1/2 5/8 .75 .7565
2-1/2 3-5/8 2-3/8 2-1/2 3-5/8 4-1/4 5/8 3/4 .932 1.138
3 4-1/4 2-9/16 2-11/16 4-1/4 5 3/4 7/8 1.016 1.200
4 4-3/4 2-11/16 2-15/16 5-1/2 6-1/4 7/8 1-1/8 1.094 1.300
