Carpenter 20Cb-3® Female Connector, Alloy 20 Reducing Union, Carpenter 20 Tube to Female Pipe, UNS N08020 Tube Fittings, Alloy 20 Union Elbow Manufacturer in India.
Unifit Metalloys Inc is a prominent distributor of Alloy 20 Tube Fittings, which are standard material of construction for nuclear reactors. Fine-grain material like Alloy 20 Tube to Union Fittings is ideal for all low-temperature appliances, most transitional temperature appliances, and those elevated temperature appliances which need resistance to shock and corrosion. Carpenter 20Cb-3® Tube to Male Fittings is used in the electronic field for such components as cathode-ray tube spiders, thyratron grids, tube support members and springs. Carpenter 20 Tube to Female Pipes has good resistance to corrosion by high-purity water, and no sign of chloride-ion stress-corrosion cracking in reactor water systems has been detected. For nuclear appliances, UNS N08020 Tube Fittings is being produced to exacting specifications and is chosen for it.
Table of Contents
- Alloy 20 Tube Fittings Specification
- ASTM B366 Alloy 20 Tube Fittings Equivalent Grades
- Carpenter 20 Ferrule Fittings Chemical Composition
- ASTM B366 Alloy 20 Tube Fittings Mechanical Properties
- Carpenter 20 Compression Tube Fittings Types
- Other Types of Grade 20 Alloy Tube Fittings in Stock
- ASTM B366 Alloy 20 Hydraulic Ferrule Fittings Outer Diameter
DIN 2.4660 Double Ferrule Tube Fittings, Alloy 20 Bulkhead Male Connector, Alloy 20 Stainless Steel Front Ferrule, EN NiCr20CuMo Male Run Tee, Carpenter 20 Cb-3® 45 Degree Male Elbow Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Alloy 20 Tube Fittings from Leading Manufacturer, Buy Carpenter 20 Instrumentation Tube Fittings at Best Price in India.
A broad array of hardness and strength is available with UNS N08020 Tube to Union Fittings, depending on condition and form. However in the annealed form, UNS N08020 Tube to Male Fittings show reasonable yield strengths. The composition of UNS N08020 Tube to Female Pipes enables it to oppose a range of corrosives. The content of chromium in Carpenter 20 Tube Fittings makes it better to commercially pure nickel under oxidizing forms, and its content of high nickel enables it to keep hold of substantial resistance under reducing forms. Meanwhile, the content of nickel in DIN 2.4660 Tube Fittings as well offers good resistance to alkaline solutions.
Alloy 20 Tube Fittings Specification
| Specifications | ASTM B366, B366/ ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT - ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel - ISO 228 | ISO/BSP Tapered - ISO 7, BS EN 10226-1 | SAE (Unified) - ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application | |
| Material Test Certificates (MTC) for Alloy 20 Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B366 Alloy 20 Tube Fittings
| Products | Size | |
| ASTM B366 Alloy 20 Male Connector Tube Fittings | ASTM B366 Alloy 20 Female Connector Tube Fittings | Sizes: 1/16” 1/2” & 1.5 MM to 38.1 MM Thread: NPT, PT, BST, NPS, PS, BSP |
| ASTM B366 Alloy 20 Bulkhead Union Tube Fittings | ASTM B366 Alloy 20 Male Elbow Tube Fittings | |
| ASTM B366 Alloy 20 Union Elbow Tube Fittings | ASTM B366 Alloy 20 Female Branch Tee Tube Fittings | |
| ASTM B366 Alloy 20 Male Run Tee Tube Fittings | ASTM B366 Alloy 20 Male Tube Adapter Tube Fittings | |
| ASTM B366 Alloy 20 Female Tube Adapter Tube Fittings | ASTM B366 Alloy 20 Front Ferrule Tube Fittings | |
| ASTM B366 Alloy 20 Back Ferrule Tube Fittings | ASTM B366 Alloy 20 Union Cross Tube Fittings | |
| ASTM B366 Alloy 20 Bulkhead Union Tube Fittings | ASTM B366 Alloy 20 Female Elbow Tube Fittings | |
| ASTM B366 Alloy 20 Reducing Union Tube Fittings | ASTM B366 Alloy 20 Branch Tee Tube Fittings | |
ASTM B366 Carpenter 20 Tube Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
Grade Carpenter 20 Tube Fittings Chemical Composition
| Element | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
ASTM B366 Alloy 20 Tube Fittings Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | Psi - 35,000, MPa - 241 | Psi -80,000, MPa -551 | 30 % |
Carpenter 20 Instrumentation Tube Fittings Types

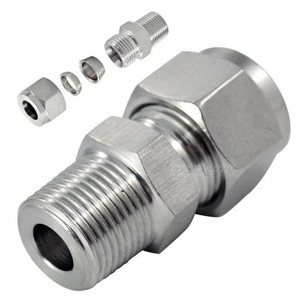

Alloy 20 Male Connector Tube Fittings

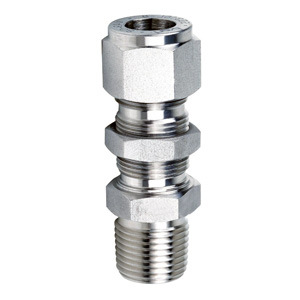

Alloy 20 Bulkhead Male Connector Fittings

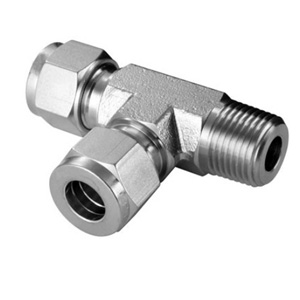

Alloy 20 Male Run Tee Fittings

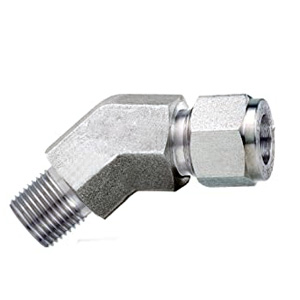

Alloy 20 45 Degree Male Elbow Fittings
Alloy 20 Female Connector Fittings

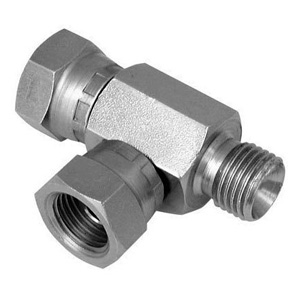

Alloy 20 Female Run Tee Fittings

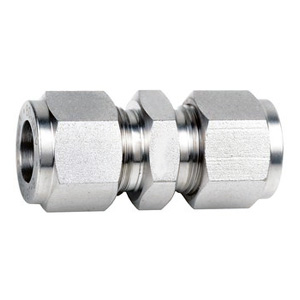

Alloy 20 Bulkhead Union Fittings

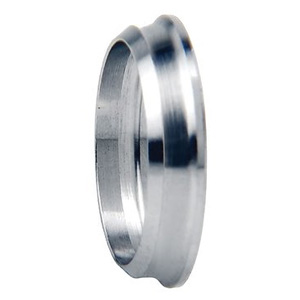

Alloy 20 Back Ferrule Fittings

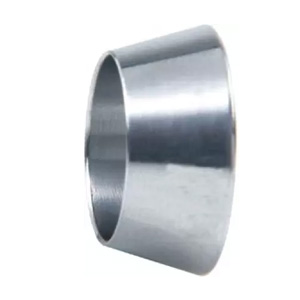

Alloy 20 Front Ferrule Fittings
Alloy 20 Union Cross Fittings

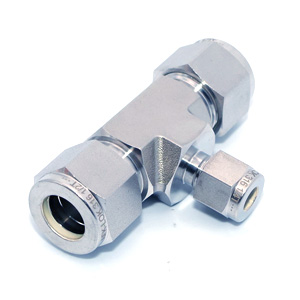

Alloy 20 Reducing Union Fittings

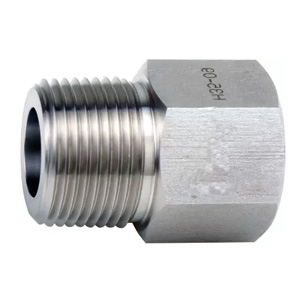

Alloy 20 Adapter
Other Types of Grade Carpenter 20 Tube Fittings in Stock
|
|
ASTM B366 Carpenter 20Cb-3® Hydraulic Ferrule Fittings Outer Diameter
| OD | OD Actual | Thread Designation - Nominal Size | Thread per inch | |
| (fraction inch) | (inches) | (inches) | NPT | BSP |
| 5/16 | 0.3125 | 1/16 | 27 | 28 |
| 13/32 | 0.405 | 1/8 | 27 | 28 |
| 35/64 | 0.540 | 1/4 | 18 | 19 |
| 43/64 | 0.675 | 3/8 | 18 | 19 |
| 27/32 | 0.840 | 1/2 | 14 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 | 11 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 | 11 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 | 11 |
| 2-3/8 | 2.375 | 2 | 8 | 11 |
| 2-7/8 | 2.875 | 2-1/2 | 8 | 11 |
| 3-1/2 | 3.5 | 3 | 8 | 11 |
| 4 | 4.0 | 3-1/2 | 8 | 11 |
| 4-1/2 | 4.5 | 4 | 8 | 11 |
| 5-5/8 | 5.563 | 5 | 8 | 11 |
| 6-5/8 | 6.625 | 6 | 8 | 11 |
