Monel DIN 2.4360 Single Ferrule Compression Tube Fittings, 400 Monel Alloy Double Ferrule Fittings, Monel 400 Back Ferrule, Nickel Alloy 400 Union Elbow Manufacturer in India.
Unifit Metalloys Inc is a prominent trader of Monel Alloy 400 Tube Fittings, which are solid solution and austenitic alloys. Monel 400 Tube to Union Fittings is used in outlet manifolds, and reducing-system piping; in ethylene making for both cracking and convection tubes, and pigtails; etc. Monel 400 Tube to Male Fittings is also used in oxy-alcohol fabrication for tubing in hydrogenation heaters; in hydrodealkylation units for heater tubing; and in the manufacture of vinyl chloride monomer for cracking tubes. Monel 400 Tube to Female Pipes has the same chromium, iron and nickel contents and usually show similar corrosion resistance. In view of the fact that Alloy 400 Tube to Union Fittings is used for their elevated temperature potency, corrosive atmospheres to which these alloys are exposed generally involve elevated temperature responses such as carburization and oxidation.
Table of Contents
- Monel Alloy 400 Tube Fittings Specification
- ASTM B366 400 Monel Alloy Tube Fittings Equivalent Grades
- Grade 400 Monel Alloy Ferrule Fittings Chemical Composition
- ASTM B366 Monel Alloy 400 Tube Fittings Mechanical Properties
- Alloy 400 Compression Tube Fittings Types
- Other Types of Grade 400 Monel Alloy Tube Fittings in Stock
- ASTM B366 400 Monel Hydraulic Ferrule Fittings Outer Diameter
Monel BS NA 13 Male Run Tee, ASTM B366 Alloy 400 Female Branch Tee, Monel DIN 2.4360 Double Ferrule Tube Fittings, Monel UNS N04400 Instrumentation Tube Fittings, Grade 400 Monel Alloy Front & Back Ferrule, Monel Alloy 400 Adapter Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Monel Alloy 400 Tube Fittings from Leading Manufacturer, Buy Alloy 400 Instrumentation Tube Fittings at Best Price in India.
For the reason of their soaring contents of nickel and chromium, Alloy 400 Tube to Male Fittings has exceptional resistance to oxidation. The chromium in Alloy 400 Tube to Female Pipes promotes the structure of a shielding surface oxide, and the nickel improves the shield, particularly during cyclic exposure to elevated temperatures. Titanium carbides, chromium carbides and Titanium nitrides for Monel UNS N04400 Tube Fittings usually appear in the alloys’ microstructure. The nitrides here in Monel N04400 Tube to Union Fittings are steady at all temperatures under the melting point and are as a result unaltered by heat treatment.
Monel Alloy 400 Tube Fittings Specification
| Specifications | ASTM B366/ ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT - ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel - ISO 228 | ISO/BSP Tapered - ISO 7, BS EN 10226-1 | SAE (Unified) - ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application | |
| Material Test Certificates (MTC) for Monel Alloy 400 Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B366 400 Monel Alloy Tube Fittings
| Products | Size | |
| ASTM B366 Monel Alloy 400 Male Connector Tube Fittings | ASTM B366 Monel Alloy 400 Female Connector Tube Fittings | Sizes: 1/16” 1/2” & 1.5 MM to 38.1 MM Thread: NPT, PT, BST, NPS, PS, BSP |
| ASTM B366 Monel Alloy 400 Bulkhead Union Tube Fittings | ASTM B366 Monel Alloy 400 Male Elbow Tube Fittings | |
| ASTM B366 Monel Alloy 400 Union Elbow Tube Fittings | ASTM B366 Monel Alloy 400 Female Branch Tee Tube Fittings | |
| ASTM B366 Monel Alloy 400 Male Run Tee Tube Fittings | ASTM B366 Monel Alloy 400 Male Tube Adapter Tube Fittings | |
| ASTM B366 Monel Alloy 400 Female Tube Adapter Tube Fittings | ASTM B366 Monel Alloy 400 Front Ferrule Tube Fittings | |
| ASTM B366 Monel Alloy 400 Back Ferrule Tube Fittings | ASTM B366 Monel Alloy 400 Union Cross Tube Fittings | |
| ASTM B366 Monel Alloy 400 Bulkhead Union Tube Fittings | ASTM B366 Monel Alloy 400 Female Elbow Tube Fittings | |
| ASTM B366 Monel Alloy 400 Reducing Union Tube Fittings | ASTM B366 Monel Alloy 400 Branch Tee Tube Fittings | |
ASTM B366 400 Monel Alloy Tube Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Alloy 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Grade 400 Monel Alloy Tube Fittings Chemical Composition
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
ASTM B366 Monel Alloy 400 Tube Fittings Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
Alloy 400 Instrumentation Tube Fittings Types

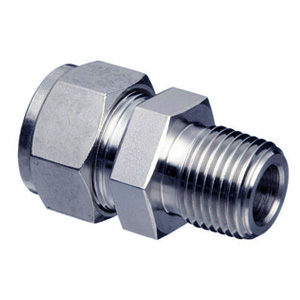

ASTM B366 Monel Alloy 400 Male Connector

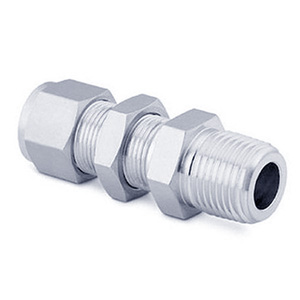

ASTM B366 Monel 400 Bulkhead Male Connector Fittings

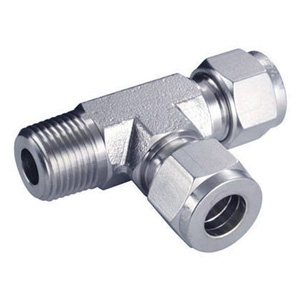

ASTM B366 Monel 400 Male Run Tee Fittings

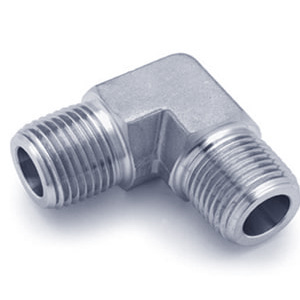

ASTM B366 Monel 400 Male Elbow Fittings

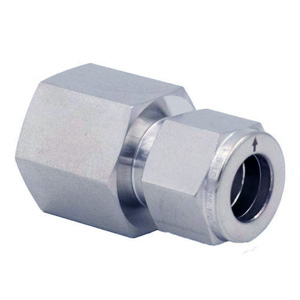

ASTM B366 Monel 400 Female Connector Fittings

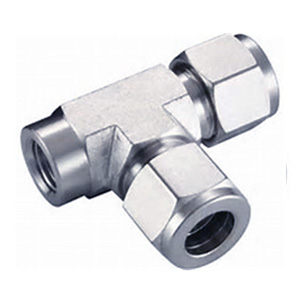

ASTM B366 Monel 400 Female Run Tee Fittings

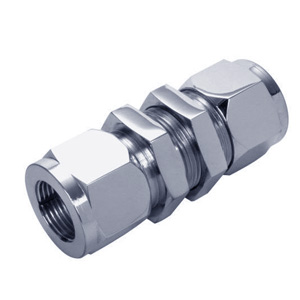

ASTM B366 Monel 400 Bulkhead Union Fittings
ASTM B366 Monel 400 Back Ferrule Fittings

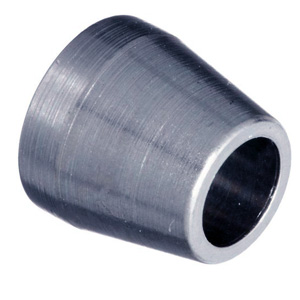

ASTM B366 Monel 400 Front Ferrule Fittings

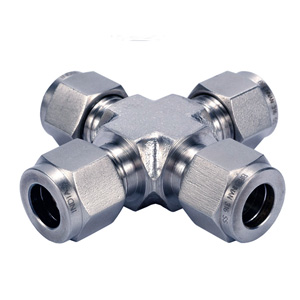

ASTM B366 Monel 400 Union Cross Fittings

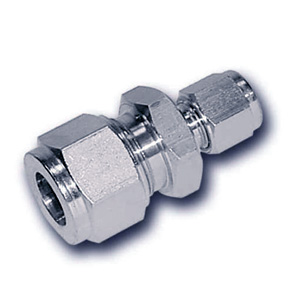

ASTM B366 Monel 400 Reducing Union Fittings

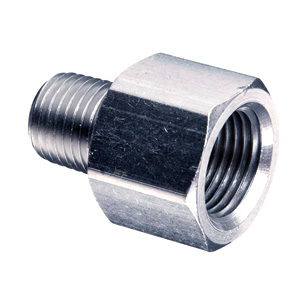

ASTM B366 Monel 400 Adapter
Other Types of Grade 400 Monel Alloy Tube Fittings in Stock
|
|
ASTM B366 Monel Alloy 400 Hydraulic Ferrule Fittings Outer Diameter
| OD | OD Actual | Thread Designation - Nominal Size | Thread per inch | |
| (fraction inch) | (inches) | (inches) | NPT | BSP |
| 5/16 | 0.3125 | 1/16 | 27 | 28 |
| 13/32 | 0.405 | 1/8 | 27 | 28 |
| 35/64 | 0.540 | 1/4 | 18 | 19 |
| 43/64 | 0.675 | 3/8 | 18 | 19 |
| 27/32 | 0.840 | 1/2 | 14 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 | 11 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 | 11 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 | 11 |
| 2-3/8 | 2.375 | 2 | 8 | 11 |
| 2-7/8 | 2.875 | 2-1/2 | 8 | 11 |
| 3-1/2 | 3.5 | 3 | 8 | 11 |
| 4 | 4.0 | 3-1/2 | 8 | 11 |
| 4-1/2 | 4.5 | 4 | 8 | 11 |
| 5-5/8 | 5.563 | 5 | 8 | 11 |
| 6-5/8 | 6.625 | 6 | 8 | 11 |
