Alloy 20 Flanges Manufacturer

  Home   Products

Alloy 20 Spectacle Blind Flange, UNS N08020 Lap Joint Flange Manufacturer in India.

Unifit Metalloys Inc is a renowned supplier and trader of Alloy 20 Pipe Flanges, which is a solid-solution alloy that can be hardened only by cold working. Other applications of Alloy 20 Slip On Raised Flanges include aerospace and defense as well as food processing. We offer these Alloy 20 Blind Raised Flanges in various specification & thickness as per requirements of our esteemed clients. We also offer these Alloy 20 Spectacle Blind Flanges at highly competitive rates in the market. Alloy 20 Threaded Flanges has high strength and toughness over a wide temperature range and excellent resistance to many corrosive environments. Our Alloy 20 Forged Flanges are widely used in many fields, especially in marine and chemical processing. However, this Alloy 20 Socket Weld Flanges is used primarily in specialized electrical and electronic applications.

Flanges Manufacturing Factory

Flanges

Manufacturing Factory

Table of Contents

Alloy 20 Blind Flanges, Carpenter 20 Ring Type Joint Flanges, WERKSTOFF NR. 2.4660 Puddle Flange Dealer, Carpenter 20Cb-3® Threaded Flanges, AFNOR Z2NCUD31-20AZ Slip on Flanges, ASME SB462 Alloy 20Cb-3 Spectacle Blind Flanges, Supplier in Mumbai, India.

Alloy 20 Flanges

Get a best quote for ANSI B16.11 Alloy 20 Flanges from Leading Manufacturer, Buy Carpenter 20 Flanges Weld Neck Flanges at Best Price in India.


Alloy 20 Weld Neck Flanges are oxidation and corrosion resistant materials, which is well suited for service in extreme environments subjected to high pressure and kinetic energy. When heated, these Alloy 20 Lap Joint Flanges form a thick and stable passivating oxide layer protecting the surface from further attack. Our Alloy 20 Ring Type Joint Flanges retains strength over a wide temperature range, and is attractive for high-temperature applications where aluminum and steel would succumb to creep as a result of thermally induced crystal vacancies. We provide these Alloy 20 Orifice Flanges at standard and customized sizes so as to one can choose accordingly.

Alloy 20 Flanges Specification

Specifications ASTM B462 / ASME SB462
Alloy 20 Flange Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Alloy 20 Flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Alloy 20 Flange Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Alloy 20 Flanges Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
ASME SA 182 Alloy 20 Flange 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Alloy 20 Flange UNI 6Bar 10Bar 16Bar 25Bar 40Bar
Alloy 20 Flange EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of Alloy 20 Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Alloy 20 Flange Production technique Forged, Heat treated and machined
Alloy 20 Flange Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
ASME B462 Alloy 20 Flange Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
ASTM B462 Alloy 20 Flange Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Alloy 20 Flange Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of Alloy 20 Flange

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ASTM B462 Alloy 20 Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
American standard (ANSI)
German (DIN)
British standard (BS)

DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B462 F316 Stainless Steel Flanges
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
ASME SB462 Alloy 20 Flange Uses & application Bitumen upgraders.
Heavy oil refineries.
Nuclear power (mostly seamless).
Petrochemicals and acids.
EN 1092-1 Alloy 20 Flange Export to Ireland, Singapore, Indonesia, Ukraine, Saudi & Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASTM B462 Alloy 20 Flanges Equivalent Grades

STANDARD WERKSTOFF NR. UNS AFNOR EN
Alloy 20 2.4660 N08020 Z2NCUD31-20AZ NiCr20CuMo

Grade 20 Alloy Flanges Chemical Composition

Element C Mn Si S Cu Ni Cr Fe Mo P
Alloy 20 0.07 max 2.00 max 1.00 max 0.035 max 3.00 – 4.00 32.00 – 38.00 19.00 – 21.00 29.85 min* 2.00 – 3.00 0.045 max

ASTM B462 Alloy 20 Flanges Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
8.1 g/cm3 1443 °C (2430 °F) Psi - 35,000, MPa - 241 Psi -80,000, MPa -551 30 %

Alloy 20 Flanges Types

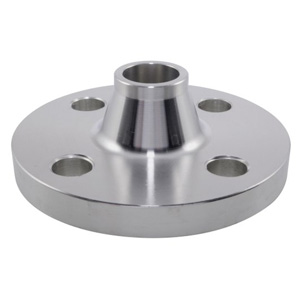

ASTM B462 Alloy 20 Weld Neck Flanges
ASTM B462 Alloy 20 Weld Neck Flanges

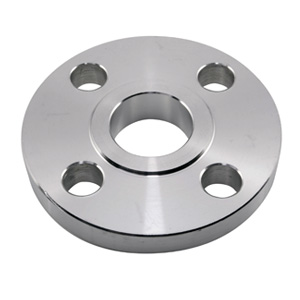

ASTM B462 Alloy 20 Slip-on Flanges
ASTM B462 Alloy 20 Slip-on Flanges
ASTM B462 Alloy 20 Blind Flanges
ASTM B462 Alloy 20 Blind Flanges
ASTM B462 Alloy 20 Socket weld Flanges
ASTM B462 Alloy 20 Socket weld Flanges

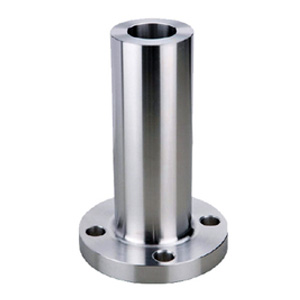

ASTM B462 Alloy 20 Long Weld Neck Flanges
ASTM B462 Alloy 20 Long Weld Neck Flanges

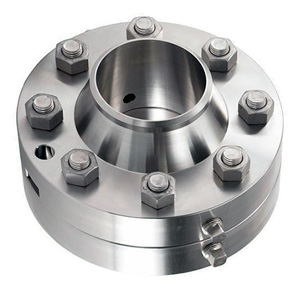

ASTM B462 Alloy 20 Orifice Flanges
ASTM B462 Alloy 20 Orifice Flanges

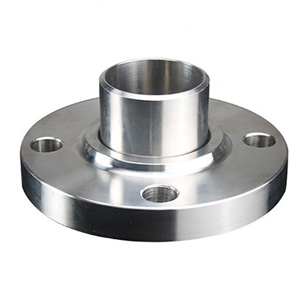

ASTM B462 Alloy 20 Lap Joint Flanges
ASTM B462 Alloy 20 Lap Joint Flanges

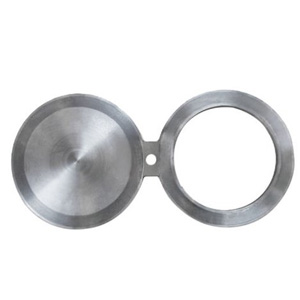

ASTM B462 Alloy 20 Spectacle Blind Flanges
ASTM B462 Alloy 20 Spectacle Blind Flanges

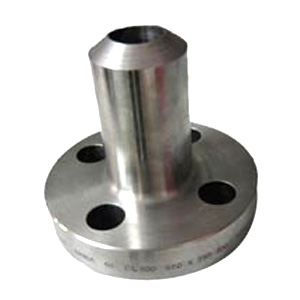

ASTM B462 Alloy 20 Nipolet Flanges
ASTM B462 Alloy 20 Nipolet Flanges

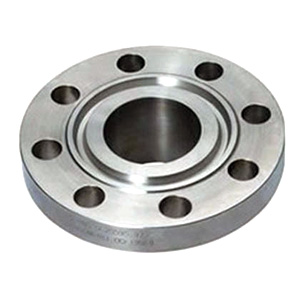

ASTM B462 Alloy 20 RTJ Flanges
ASTM B462 Alloy 20 RTJ Flanges

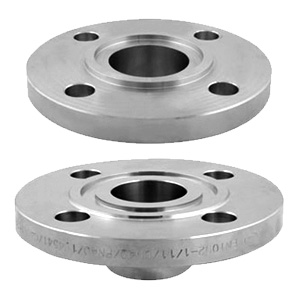

ASTM B462 Alloy 20 Groove & Tongue Flanges
ASTM B462 Alloy 20 Groove & Tongue Flanges

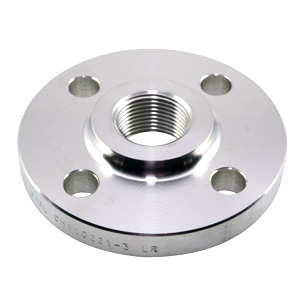

ASTM B462 Alloy 20 Screwed Flanges
ASTM B462 Alloy 20 Screwed Flanges

ASTM B462 Carpenter 20 Flanges Manufacturing Standards

American Steel Flanges Standard
Standard Code Standard Name
ANSI ASME SB-462 Forged Flanges
ANSI ASME B16.5 Slip on flange, Welding neck flange, Blind flange, Threaded flange, Lap joint flange, RTJ flange
ASME – B 16.47 Welding neck flange, Blind flange
ASME – B 16.36 Welding neck flange Slip on flange
German Steel Flanges Standard
DIN 2527 Steel Blind Flanges, BLRF
DIN 2573 / 2576 Flat Flange for Welding (Slip On)
DIN 2673 Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars)
DIN 2641 / 2642 Lapped / Loose (Lap Joint) Flanges Plain Collars
DIN 28115 Long Neck Welding Flanges
DIN PN10, PN16 Alloy 20 PN10 Flanges, Carpenter 20 DIN PN 10 Flanges, Alloy 20 PN16 Flange
DIN PN20, PN25 Alloy 20 PN20 Flanges, Carpenter 20 DIN PN 25 Flanges
DIN PN40, PN50 Alloy 20 PN40 Flanges, Carpenter 20 DIN PN 50 Flanges
Japanese Steel Flanges Standard
JIS B2220 Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL)
JIS B2291 Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL)
JIS 5K, 10K Alloy 20 5K SORF Flanges, Carpenter 20 10K SOFF Flanges
JIS 16K, 20K Alloy 20 16K Blind Flanges, Carpenter 20 20K BLRF Flanges
JIS 30K, 40K Alloy 20 30K Slip on Flanges, Carpenter 20 40K Blind Flanges
Italian Flanges Standard
UNI FLANGES Plan flanges (2276, 2277, 2278, 6083, 6084) Welding neck (2280, 2281, 2282, 2283, 2284, 2285, 2286) Lapped flanges (6088, 6089, 6090, 2999, 2300) Blind flanges (6091, 6092, 6093, 6094, 6095, 6096, 6097) threaded flanges (2253, 2254)
British Standard Pipe Flanges Standard
BS 10 Table D Alloy 20 BS 10 Table D Flanges, Alloy 20 Table D Pipe Flange
BS 10 Table E Alloy 20 BS 10 Table E Flanges, Alloy 20 Table E Pipe Flange
BS 10 Table F Alloy 20 BS 10 Table E Flanges, Alloy 20 Table E Flanges
BS 10 Table H Alloy 20 BS 10 Table E Flanges, Alloy 20 Table E Pipe Flanges

Other Types of Grade 20 Alloy Flanges in Stock

  • Incoloy Alloy 20 Male & Female Flanges
  • Alloy 20 Long Weld Neck Flanges
  • Alloy 20 BLRF Flanges Supplier
  • Alloy 20 Nipolet Flange
  • Incoloy Alloy 20 Reducing Flanges
  • Alloy 20 Swivel Ring Flange
  • Alloy 20 Socket Welding Flange
  • Alloy 20 Plate Flange
  • Carpenter® Alloy 20 Orifice Flanges
  • Alloy 20 High Hub Blind Flange
  • Nickel Alloy 20 Square Flanges
  • Nickel Alloy 20 RTJ Flanges
  • Carpenter 20 RTJF Flanges
  • Alloy 20 Backing Ring Flanges
  • Carpenter® Alloy 20 Reducing Flanges Supplier
  • Carpenter 20 Slip On Flange
  • Carpenter 20 Weld Neck Flange
  • Nickel Alloy Forging Facing Flanges Dealer
  • Carpenter 20 Reducing Flanges
  • Nickel Alloy 20 Tongue and Groove Flange
  • Alloy 20 Ring Spacer Flanges
  • Carpenter 20 Spectacle Blind Flanges
  • Nickel Alloy 20 Lap Joint Flanges
  • Incoloy Alloy 20 Expander Flanges
  • Carpenter® Alloy 20 Blind Flanges / Dummy Flange
  • Alloy 20 Paddle Blind Flanges
  • Alloy 20 B462 Long Weld Neck Flanges Stockist
  • Carpenter® Alloy 20 Screwed / Threaded Flanges
  • Carpenter® Alloy 20 Socket Weld Flanges
  • Carpenter 20 Long Weld Neck Flange
  • Alloy 20 Custom Flanges
  • UNS N08020 Flanges Manufacturer
  • Alloy 20 Weldolet Flange
  • Incoloy Alloy Ring Type Joint Flanges

Manufacturer and Supplier of ASTM B462 Carpenter 20 Slip On Flanges/ Socket Weld Flanges in India, view weight chart & dimensions

ASTM B462 Alloy 20 Flanges Schedule / Class

Flange Schedule/Class Pipe Size - Pipe Flanges Flange Connection Type Max. Pressure
ASME B16.5 Class 150 1/2" FNPT 150 psi
ASME B16.5 Class 150 1/2" Socket Weld 275 psi
ASME B16.5 Class 150 1/2" Welded 150 psi
ASME B16.5 Class 150 3/4" FNPT 150 psi
ASME B16.5 Class 150 3/4" Socket Weld 275 psi
ASME B16.5 Class 150 1-1/4" Socket Weld 275 psi
ASME B16.5 Class 150 1-1/2" Socket Weld 275 psi
ASME B16.5 Class 150 2" FNPT 150 psi
ASME B16.5 Class 150 2" Socket Weld 275 psi
ASME B16.5 Class 150 2-1/2" Socket Weld 275 psi
ASME B16.5 Class 150 3" Socket Weld 275 psi
ASME B16.5 Class 150 4" FNPT 150 psi
ASME B16.5 Class 150 4" Socket Weld 275 psi
ASME B16.5 Class 300 1/2" Slip On 720 psi
ASME B16.5 Class 300 1/2" Slip On 720 psi
ASME B16.5 Class 300 1" Slip On 720 psi
ASME B16.5 Class 300 1" Slip On 720 psi
ASME B16.5 Class 300 1-1/4" FNPT 720 psi
ASME B16.5 Class 300 1-1/4" Slip On 720 psi
ASME B16.5 Class 300 1-1/2" Slip On 720 psi
ASME B16.5 Class 300 1-1/2" Slip On 720 psi
ASME B16.5 Class 300 2" Slip On 720 psi
ASME B16.5 Class 300 2" Slip On 720 psi
ASME B16.5 Class 300 2-1/2" Slip On 720 psi
ASME B16.5 Class 300 2-1/2" Slip On 720 psi
ASME B16.5 Class 300 3" Slip On 720 psi
ASME B16.5 Class 300 3" Slip On 720 psi
ASME B16.5 Class 300 4" Slip On 720 psi
ASME B16.5 Class 300 4" Slip On 720 psi

ASME B16.5 Alloy 20 Pipe Flanges Dimensions In MM

NPS
(in.)		 Alloy 20 Flanges Dimensions
Dia. of
Flange
(in.)		 No.
of
Bolts		 Dia. of
Bolts
(in.)		 Dia. of
Bolt Holes
(in.)		 Bolt
Circle
(in.)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2

UNS N08020 Alloy 20 Flange Pressure Rating

ASME Pressure Temperature Ratings For Alloy 20 Flanges
Temperature °F Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Pressure Rating of Alloy 20 Pipe Flanges

ASME/ANSI B 16.5 Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Blind Flange [Series A & B],Welding Neck Flange
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36 Slip on Flange, Threaded Flange, Welding Neck Flange,
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange,
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100

Alloy ASTM B462 Grade 20 Flanges Suppliers in India

City We Supply Flanges
Bengaluru Mumbai Chennai Hyderabad Kolkata Pune
New Delhi Ahmedabad Jaipur Surat Salem Gandhinagar
Bhiwandi Tiruppur Sivakasi Jamnagar Thiruvananthapuram Rajahmundry
Bhubaneswar Vijaywada Firozabad Bokaro Steel City Rajkot Bharuch
Panna Raipur Cochin Ludhiana Panipat Durgapur
Peenya Pimpri-Chinchwad Channapatna Kharagpur Nashik Bareilly
Varanasi Haldia Rourkela Bangalore Moradabad Indore
Visakhapatnam Trivandrum Pithampur Dibrugarh Angul Gwalior
Coimbatore Kannur Nagpur Vadodara Rudrapur Noida
Agra Bhagalpur Jamshedpur Bhilai Lucknow Kanpur
Thane Bhopal Sri City Bareilly Hosdurg Pithampur

Alloy 20 Flanges Exporter in India

Countries we export Flanges worldwide:
Manama Atyrau Kuwait Netherlands Iran
Bahrain Qatar UAE Africa China
Nigeria Mexico Canada Venezuela United Kingdom
United States South Africa Malaysia Bangladesh Turkey
Singapore Sri Lanka Australia Brazil Germany
France Italy South Korea Poland Belgium
Russia Vietnam Jordan Portugal Egypt
Morocco Israel Costa Rica Iraq Madagascar
Kazakhstan Thailand Romania Philippines Spain
Hongkong Taiwan Japan Ukraine Chile
