Nickel Alloy 200 Flanges Manufacturer

  Home   Products

Nickel UNS N02200 Spacer Ring Flanges, Nickel 200 Spectacle Blind Flanges Manufacturer in India.

Unifit Metalloys Inc is a renowned supplier and seller of Nickel 200 Flanges, which are at length used in high pressure usages. Meanwhile, in the installed state of Nickel 200 Slip On Raised Flanges, the coupling housings cover the gasket and connect the grooves in the region of the perimeter of the pipe to make a leak-tight close up in a self-restrained pipe joint. Faces are the mating surface of Nickel 200 Blind Raised Flanges, valve or nozzle. Nickel 200 Forged Flanges faces have to be smoothing as much as necessary to make sure they offer a leak-free and tight seal by means of the flanges that are bolted together.

Flanges Manufacturing Factory

Flanges

Manufacturing Factory

Table of Contents

Nickel BS NA 11 Threaded Flanges, Nickel EN Ni 99.2 Slip-on Flanges, Nickel DIN 2.4066 Reducing Flanges, Nickel UNS N02200 Orifice Flanges, Nickel WERKSTOFF NR. 2.4066 Spectacle Blind Flanges, ASTM B564 Alloy 200 Tongue & Groove Flanges, Grade 200 Nickel Weldo Flanges Supplier in Mumbai, India.

Nickel Alloy 200 Flanges

Get a best quote for ANSI B16.11 Nickel 200 Flanges from Leading Manufacturer, Buy Alloy Grade 200 Flanges Weld Neck Flanges at Best Price in India.


Nickel 200 Threaded Flanges are used on pump facings or on fiber glass where the torque of applying pressure on the gasket will harm the flange body, and on cast iron flanges, at times found on mechanical equipment that can create difficulties because of the fragile nature of cast iron. Nickel 200 Socket Weld Flanges are usually used to lock the closing points of a piping system or to prevent the flow of liquids or gases. The appliance of Nickel 200 Weld Neck Flanges allows an ease of right to use to the system of piping once it has been blocked-up. We offer Nickel 200 Lap Joint Flanges that are being manufactured at our superlative services to the companies in different industries.

Nickel Alloy 200 Flanges Specification

B564 Gr 200 Flange Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Nickel Alloy 200 Flange Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Alloy Grade 200 Flange Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
ASTM B564 200 Nickel Flanges Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
ASME SB 564 200 Flange 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
ASME SB564 200 Nickel Alloy Flange UNI 6Bar 10Bar 16Bar 25Bar 40Bar
B564 200 Flange EN 6Bar 10Bar 16Bar 25Bar 40Bar
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Most common types of ASTM B564 200 Nickel Flange Forged / Threaded / Screwed / Plate
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
ASME SB564M Alloy 200 Flange Production technique Forged, Heat treated and machined
B564 Grade 200 Flange Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
ASME B564 Nickel Alloy 200 Flange Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
ASTM B564 Alloy 200 Flange Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Alloy 200 Flange Origin Indian / West Europe / Japan / USA / Korean
Manufacturer of Nickel Alloy ASTM B564 200 Flange

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ASTM B564 200 Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
American standard (ANSI)
German (DIN)
British standard (BS)

DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 200 Nickel Flanges
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
ASME SB564M Nickel 200 Flange Uses & application Bitumen upgraders.
Heavy oil refineries.
Nuclear power (mostly seamless).
Petrochemicals and acids.
Alloy 200 EN 1092-1 Flange Export to Ireland, Singapore, Indonesia, Ukraine, Saudi & Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASTM B564 200 Nickel Alloy Flanges Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Nickel 200 2.4066 N02200 NW 2200 NA 11 НП-2 N-100M Ni 99.2

ASME SB564 Nickel Alloy 200 Flanges Chemical Composition

Grade C Mn Si S Cu Fe Ni
Nickel 200 0.15 max 0.35 max 0.35 max 0.01 max 0.25 max 0.40 max 99.0 min

ASTM B564 Nickel Alloy 200 Flanges Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Nickel 200 8.9 g/cm3 1446 °C (2635 °F) Psi – 67000 , MPa – 462 Psi – 21500 , MPa – 148 45 %

ASTM B564 Nickel 200 Flanges Types

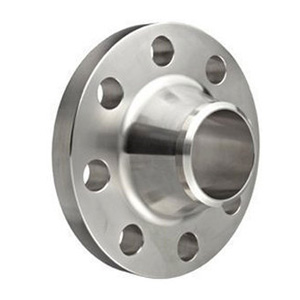

ASTM B564 Nickel 200 Weld Neck Flanges
ASTM B564 Nickel 200 Welding Neck Flanges

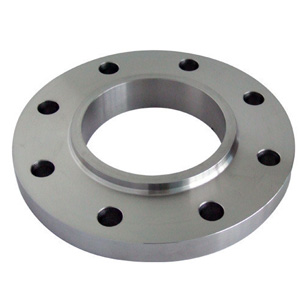

ASTM B564 Nickel 200 Slip-on Flanges
ASTM B564 Nickel 200 Slip-on Flanges

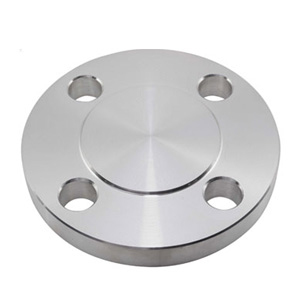

ASTM B564 Nickel 200 Blind Flanges
ASTM B564 Nickel 200 Blind Flanges

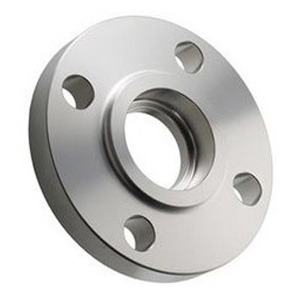

ASTM B564 Nickel 200 Socket weld Flanges
ASTM B564 Nickel 200 Socket weld Flanges

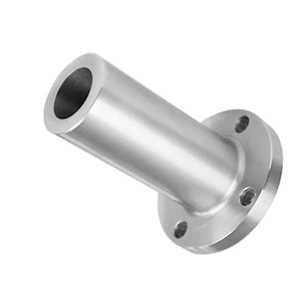

ASTM B564 Nickel 200 Long Weld Neck Flanges
ASTM B564 Nickel 200 Long Weld Neck Flanges

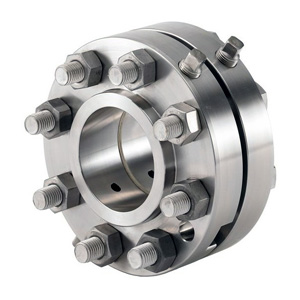

ASTM B564 Nickel 200 Orifice Flanges
ASTM B564 Nickel 200 Orifice Flanges

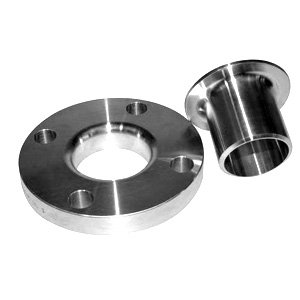

ASTM B564 Nickel 200 Lap Joint Flanges
ASTM B564 Nickel 200 Lap Joint Flanges

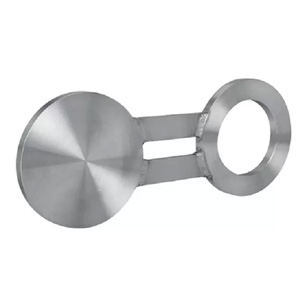

ASTM B564 Nickel 200 Spectacle Blind Flanges
ASTM B564 Nickel 200 Spectacle Blind Flanges

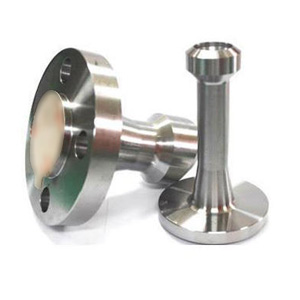

ASTM B564 Nickel 200 Nipolet Flanges
ASTM B564 Nickel 200 Nipolet Flanges

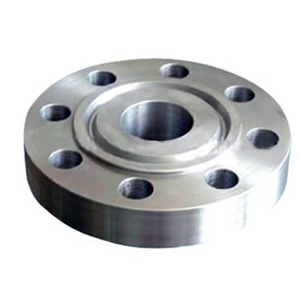

ASTM B564 Nickel 200 RTJ Flanges
ASTM B564 Nickel 200 RTJ Flanges

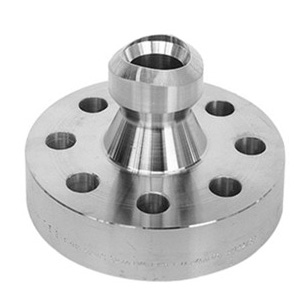

ASTM B564 Nickel 200 Weldo Flanges
ASTM B564 Nickel 200 Weldo Flanges

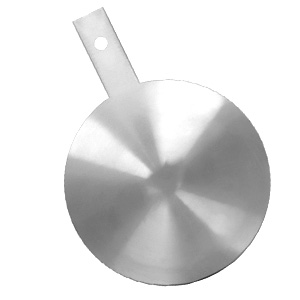

ASTM B564 Nickel 200 Paddle Blins Flanges
ASTM B564 Nickel 200 Paddle Blins Flanges

ASTM B564 Nickel Alloy 200 Flanges Manufacturing Standards

American Steel Flanges Standard
Standard Code Standard Name
ANSI ASME SB-564 Forged Flanges
ANSI ASME B16.5 Slip on flange, Welding neck flange, Blind flange, Threaded flange, Lap joint flange, RTJ flange
ASME – B 16.47 Welding neck flange, Blind flange
ASME – B 16.36 Welding neck flange Slip on flange
German Steel Flanges Standard
DIN 2527 Steel Blind Flanges, BLRF
DIN 2573 / 2576 Flat Flange for Welding (Slip On)
DIN 2673 Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars)
DIN 2641 / 2642 Lapped / Loose (Lap Joint) Flanges Plain Collars
DIN 28115 Long Neck Welding Flanges
DIN PN10, PN16 Alloy 200 PN10 Flanges, 200 Nickel DIN PN 10 Flanges, 200 Nickel PN16 Flange
DIN PN20, PN25 Alloy 200 PN20 Flanges, 200 Nickel® Alloy DIN PN 25 Flanges
DIN PN40, PN50 Alloy 200 PN40 Flanges, 200 Nickel DIN PN 50 Flanges
Japanese Steel Flanges Standard
JIS B2220 Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL)
JIS B2291 Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL)
JIS 5K, 10K Nickel 200 5K SORF Flanges, 200 Nickel 10K SOFF Flanges
JIS 16K, 20K Nickel 200 16K Blind Flanges, 200 Nickel Alloy 20K BLRF Flanges
JIS 30K, 40K Nickel 200 30K Slip on Flanges, 200 Nickel 40K Blind Flanges
Italian Flanges Standard
UNI FLANGES Plan flanges (2276, 2277, 2278, 6083, 6084) Welding neck (2280, 2281, 2282, 2283, 2284, 2285, 2286) Lapped flanges (6088, 6089, 6090, 2999, 2300) Blind flanges (6091, 6092, 6093, 6094, 6095, 6096, 6097) threaded flanges (2253, 2254)
British Standard Pipe Flanges Standard
BS 10 Table D Nickel 200 BS 10 Table D Flanges, 200 Table D Pipe Flange
BS 10 Table E Nickel 200 BS 10 Table E Flanges, 200 Table E Pipe Flange
BS 10 Table F Nickel Alloy 200 BS 10 Table E Flanges, 200 Nickel Alloy Table E Flanges
BS 10 Table H Nickel 200 BS 10 Table E Flanges, Nickel Alloy 200 Table E Pipe Flanges

Other Types of Nickel Alloy 200 Flanges in Stock

  • Nickel Alloy 200 Orifice Flanges
  • Nickel Alloy 200 Long Weld Neck Flange
  • Nickel 200 Blind Flanges / Dummy Flange
  • Nickel EN Ni 99.2 BS 4504 Flanges
  • Ni-200 AFNOR N-100M Forged Flanges
  • Nickel 200 Socket Weld Flanges
  • Nickel 200 Weld Neck Flange
  • ASME SB564 200 Nickel Orifice Flanges
  • Nickel 200 Screwed / Threaded Flanges
  • Nickel 200 RTJ Flanges
  • Nickel Alloy 200 Tongue and Groove Flange
  • Nickel 200 BLRF Flange Manufacturer
  • Nickel Alloy 200 Spectacle Blind Flanges
  • Nickel 200 Lap Joint Flanges
  • Nickel Alloy 200 Screwed Flanges
  • Nickel 200 Square Flanges
  • Nickel UNS N02200 Flanges
  • Nickel Alloy 200 Slip On Flange
  • Nickel Alloy 200 Swivel Ring Flange
  • Nickel Alloy 200 Ring Spacer Flanges
  • Nickel 200 Plate Flange
  • Nickel 200 High Hub Blind Flange
  • Nickel 200 Backing Ring Flanges
  • Nickel 200 Custom Flanges
  • Nickel Alloy 200 Weldolet Flange
  • Nickel 200 Nipolet Flange
  • Nickel 200 Expander Flanges
  • ASTM B564 Ni-200 RTJ Flanges
  • Alloy 200 WNRF Flange
  • Nickel Alloy 200 Reducing Flanges
  • Nickel 200 Paddle Blind Flanges
  • Nickel 200 ASME B16.5 Flanges
  • Nickel 200 Male & Female Flanges
  • Nickel JIS NW 2200 Reducing Flanges
  • Nickel DIN 2.4066 Nippo Flange
  • Nickel Alloy 200 Reducing Flanges

Manufacturer and Supplier of ASTM B564 Alloy 200 Slip On Flanges/ Socket Weld Flanges in India, view weight chart & dimensions

ASTM B564 Nickel Alloy 200 Flanges Schedule / Class

Flange Schedule/Class Pipe Size - Pipe Flanges Flange Connection Type Max. Pressure
ASME B16.5 Class 150 1/2" FNPT 150 psi
ASME B16.5 Class 150 1/2" Socket Weld 275 psi
ASME B16.5 Class 150 1/2" Welded 150 psi
ASME B16.5 Class 150 3/4" FNPT 150 psi
ASME B16.5 Class 150 3/4" Socket Weld 275 psi
ASME B16.5 Class 150 1-1/4" Socket Weld 275 psi
ASME B16.5 Class 150 1-1/2" Socket Weld 275 psi
ASME B16.5 Class 150 2" FNPT 150 psi
ASME B16.5 Class 150 2" Socket Weld 275 psi
ASME B16.5 Class 150 2-1/2" Socket Weld 275 psi
ASME B16.5 Class 150 3" Socket Weld 275 psi
ASME B16.5 Class 150 4" FNPT 150 psi
ASME B16.5 Class 150 4" Socket Weld 275 psi
ASME B16.5 Class 300 1/2" Slip On 720 psi
ASME B16.5 Class 300 1/2" Slip On 720 psi
ASME B16.5 Class 300 1" Slip On 720 psi
ASME B16.5 Class 300 1" Slip On 720 psi
ASME B16.5 Class 300 1-1/4" FNPT 720 psi
ASME B16.5 Class 300 1-1/4" Slip On 720 psi
ASME B16.5 Class 300 1-1/2" Slip On 720 psi
ASME B16.5 Class 300 1-1/2" Slip On 720 psi
ASME B16.5 Class 300 2" Slip On 720 psi
ASME B16.5 Class 300 2" Slip On 720 psi
ASME B16.5 Class 300 2-1/2" Slip On 720 psi
ASME B16.5 Class 300 2-1/2" Slip On 720 psi
ASME B16.5 Class 300 3" Slip On 720 psi
ASME B16.5 Class 300 3" Slip On 720 psi
ASME B16.5 Class 300 4" Slip On 720 psi
ASME B16.5 Class 300 4" Slip On 720 psi

ASME B16.5 Nickel 200 Pipe Flanges Dimensions In MM

NPS
(in.)		 Nickel 200 Flanges Dimensions
Dia. of
Flange
(in.)		 No.
of
Bolts		 Dia. of
Bolts
(in.)		 Dia. of
Bolt Holes
(in.)		 Bolt
Circle
(in.)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2

Nickel Alloy 200 Flange Pressure Rating

ASME Pressure Temperature Ratings For Nickel 200 Flanges
Temperature °F Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Pressure Rating of Nickel 200 Pipe Flanges

ASME/ANSI B 16.5 Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Blind Flange [Series A & B],Welding Neck Flange
PRESSURE CLASS 75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36 Slip on Flange, Threaded Flange, Welding Neck Flange,
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1 Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange,
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS PN 6 TO PN 100

Nickel ASTM B564 Grade 200 Flanges Suppliers in India

City We Supply Flanges
Bengaluru Mumbai Chennai Hyderabad Kolkata Pune
New Delhi Ahmedabad Jaipur Surat Salem Gandhinagar
Bhiwandi Tiruppur Sivakasi Jamnagar Thiruvananthapuram Rajahmundry
Bhubaneswar Vijaywada Firozabad Bokaro Steel City Rajkot Bharuch
Panna Raipur Cochin Ludhiana Panipat Durgapur
Peenya Pimpri-Chinchwad Channapatna Kharagpur Nashik Bareilly
Varanasi Haldia Rourkela Bangalore Moradabad Indore
Visakhapatnam Trivandrum Pithampur Dibrugarh Angul Gwalior
Coimbatore Kannur Nagpur Vadodara Rudrapur Noida
Agra Bhagalpur Jamshedpur Bhilai Lucknow Kanpur
Thane Bhopal Sri City Bareilly Hosdurg Pithampur

Nickel Alloy 200 Flanges Exporter in India

Countries we export Flanges worldwide:
Manama Atyrau Kuwait Netherlands Iran
Bahrain Qatar UAE Africa China
Nigeria Mexico Canada Venezuela United Kingdom
United States South Africa Malaysia Bangladesh Turkey
Singapore Sri Lanka Australia Brazil Germany
France Italy South Korea Poland Belgium
Russia Vietnam Jordan Portugal Egypt
Morocco Israel Costa Rica Iraq Madagascar
Kazakhstan Thailand Romania Philippines Spain
Hongkong Taiwan Japan Ukraine Chile
