Monel Alloy 400 Flanges Specification
| Specification | ASTM B564/ ASME SB564 |
|---|---|
| Monel Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Monel Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Alloy Grade 400 Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM B564 400 Monel Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASME SB 564 Monel Alloy 400 Flange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASME SB564 400 Monel Alloy Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| B564 Monel Alloy 400 Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common types of ASTM B564 400 Monel Flange | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASME SB564M Alloy 400 Flange Production technique | Forged, Heat treated and machined |
| B564 Grade 400 Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| ASME B564 Monel Alloy 400 Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM B564 Alloy 400 Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Alloy 400 Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of ASTM B564 Monel Alloy 400 Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| ASME SB564M Monel 400 Flange Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Alloy 400 EN 1092-1 Flange Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi & Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B564 400 Monel Alloy Flanges Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
ASME SB564 Monel Alloy 400 Flanges Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
ASTM B564 Monel Alloy 400 Flanges Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
ASTM B564 Monel 400 Flanges Types

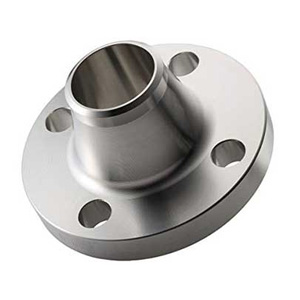

ASTM B564 Monel 400 Welding Neck Flanges

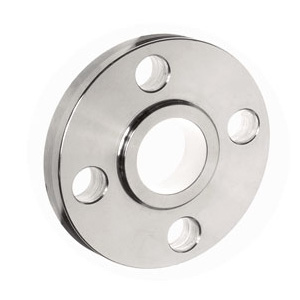

ASTM B564 Monel 400 Slip-on Flanges

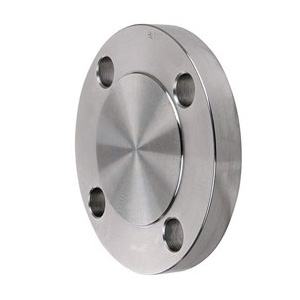

ASTM B564 Monel 400 Blind Flanges
ASTM B564 Monel 400 Socket weld Flanges

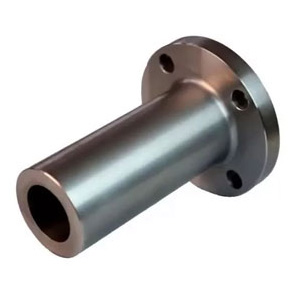

ASTM B564 Monel 400 Long Weld Neck Flanges
ASTM B564 Monel 400 Orifice Flanges

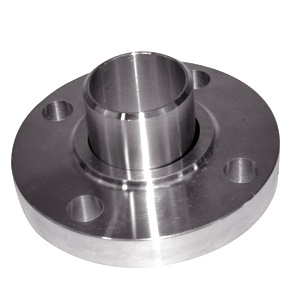

ASTM B564 Monel 400 Lap Joint Flanges

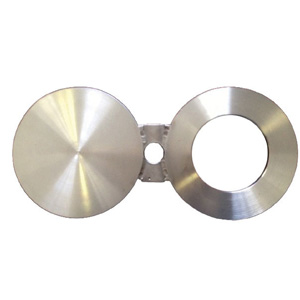

ASTM B564 Monel 400 Spectacle Blind Flanges

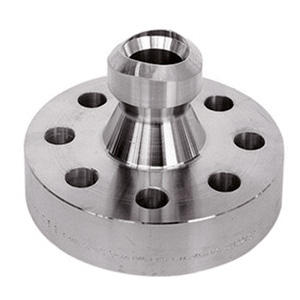

ASTM B564 Monel 400 Nipolet Flanges

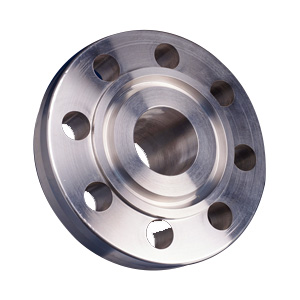

ASTM B564 Monel 400 RTJ Flanges
ASTM B564 Monel 400 Weldo Flanges
ASTM B564 Monel 400 Spades Ring Spacers Flanges
ASTM B564 Monel Alloy 400 Flanges Manufacturing Standards
| American Steel Flanges Standard | |
| Standard Code | Standard Name |
| ANSI ASME SB-564 | Forged Flanges |
| ANSI ASME B16.5 | Slip on flange, Welding neck flange, Blind flange, Threaded flange, Lap joint flange, RTJ flange |
| ASME – B 16.47 | Welding neck flange, Blind flange |
| ASME – B 16.36 | Welding neck flange Slip on flange |
| German Steel Flanges Standard | |
| DIN 2527 | Steel Blind Flanges, BLRF |
| DIN 2573 / 2576 | Flat Flange for Welding (Slip On) |
| DIN 2673 | Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars) |
| DIN 2641 / 2642 | Lapped / Loose (Lap Joint) Flanges Plain Collars |
| DIN 28115 | Long Neck Welding Flanges |
| DIN PN10, PN16 | Alloy 400 PN10 Flanges, 400 Monel DIN PN 10 Flanges, 400 Monel PN16 Flange |
| DIN PN20, PN25 | Alloy 400 PN20 Flanges, 400 Monel® Alloy DIN PN 25 Flanges |
| DIN PN40, PN50 | Alloy 400 PN40 Flanges, 400 Monel DIN PN 50 Flanges |
| Japanese Steel Flanges Standard | |
| JIS B2220 | Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL) |
| JIS B2291 | Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL) |
| JIS 5K, 10K | Monel 400 5K SORF Flanges, 400 Monel 10K SOFF Flanges |
| JIS 16K, 20K | Monel 400 16K Blind Flanges, 400 Monel Alloy 20K BLRF Flanges |
| JIS 30K, 40K | Monel 400 30K Slip on Flanges, 400 Monel 40K Blind Flanges |
| Italian Flanges Standard | |
| UNI FLANGES | Plan flanges (2276, 2277, 2278, 6083, 6084) Welding neck (2280, 2281, 2282, 2283, 2284, 2285, 2286) Lapped flanges (6088, 6089, 6090, 2999, 2300) Blind flanges (6091, 6092, 6093, 6094, 6095, 6096, 6097) threaded flanges (2253, 2254) |
| British Standard Pipe Flanges Standard | |
| BS 10 Table D | Monel 400 BS 10 Table D Flanges |
| BS 10 Table E | Monel 400 BS 10 Table E Flanges |
| BS 10 Table F | Monel Alloy 400 BS 10 Table E Flanges |
| BS 10 Table H | Monel 400 BS 10 Table E Flanges |
Other Types of Grade 400 Monel Alloy Flanges in Stock
|
|
ASTM B564 Monel Alloy 400 Flanges Schedule / Class
| Flange Schedule/Class | Pipe Size - Pipe Flanges | Flange Connection Type | Max. Pressure |
|---|---|---|---|
| ASME B16.5 Class 150 | 1/2" | FNPT | 150 psi |
| ASME B16.5 Class 150 | 1/2" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 1/2" | Welded | 150 psi |
| ASME B16.5 Class 150 | 3/4" | FNPT | 150 psi |
| ASME B16.5 Class 150 | 3/4" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 1-1/4" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 1-1/2" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 2" | FNPT | 150 psi |
| ASME B16.5 Class 150 | 2" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 2-1/2" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 3" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 4" | FNPT | 150 psi |
| ASME B16.5 Class 150 | 4" | Socket Weld | 275 psi |
| ASME B16.5 Class 300 | 1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1-1/4" | FNPT | 720 psi |
| ASME B16.5 Class 300 | 1-1/4" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1-1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1-1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 2-1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 2-1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 3" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 3" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 4" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 4" | Slip On | 720 psi |
ASME B16.5 Monel 400 Pipe Flanges Dimensions In MM
| NPS (in.) |
Monel 400 Flanges Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Monel Alloy 400 Flange Pressure Rating
| ASME | Pressure Temperature Ratings For Monel 400 Flanges | ||||||
| Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
Pressure Rating of Monel 400 Pipe Flanges
| ASME/ANSI B 16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange, |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Monel ASTM B564 Grade 400 Flanges Suppliers in India
| City We Supply Flanges | |||||
| Bengaluru | Mumbai | Chennai | Hyderabad | Kolkata | Pune |
| New Delhi | Ahmedabad | Jaipur | Surat | Salem | Gandhinagar |
| Bhiwandi | Tiruppur | Sivakasi | Jamnagar | Thiruvananthapuram | Rajahmundry |
| Bhubaneswar | Vijaywada | Firozabad | Bokaro Steel City | Rajkot | Bharuch |
| Panna | Raipur | Cochin | Ludhiana | Panipat | Durgapur |
| Peenya | Pimpri-Chinchwad | Channapatna | Kharagpur | Nashik | Bareilly |
| Varanasi | Haldia | Rourkela | Bangalore | Moradabad | Indore |
| Visakhapatnam | Trivandrum | Pithampur | Dibrugarh | Angul | Gwalior |
| Coimbatore | Kannur | Nagpur | Vadodara | Rudrapur | Noida |
| Agra | Bhagalpur | Jamshedpur | Bhilai | Lucknow | Kanpur |
| Thane | Bhopal | Sri City | Bareilly | Hosdurg | Pithampur |
Monel Alloy 400 Flanges Exporter in India
| Countries we export Flanges worldwide: | ||||
| Manama | Atyrau | Kuwait | Netherlands | Iran |
| Bahrain | Qatar | UAE | Africa | China |
| Nigeria | Mexico | Canada | Venezuela | United Kingdom |
| United States | South Africa | Malaysia | Bangladesh | Turkey |
| Singapore | Sri Lanka | Australia | Brazil | Germany |
| France | Italy | South Korea | Poland | Belgium |
| Russia | Vietnam | Jordan | Portugal | Egypt |
| Morocco | Israel | Costa Rica | Iraq | Madagascar |
| Kazakhstan | Thailand | Romania | Philippines | Spain |
| Hongkong | Taiwan | Japan | Ukraine | Chile |
