Hastelloy C22 Long Weld Neck Flanges, Alloy C-22 Flanges Manufacturer in India.
Unifit Metalloys Inc is a renowned trader and manufacturer of Hastelloy Alloy C22 Flanges, which are being offered in a complete range of shapes and dimensions. Hastelloy C22 Slip On Raised Flanges is usually used to let plumbing to be linked to some other plumbing or at least to a water heater. These Hastelloy C22 Blind Raised Flanges are made up of dissimilar grades of standard ranges and meet its terms through national and international standards. Hastelloy C22 Spectacle Blind Flanges are extensively preferred by the users because of their excellent finish, abrasion and corrosion resistant and precise tensile strength. Hastelloy C22 Threaded Flanges is one of the widest ranges of aspects that make them appropriate for interlocked plumbing structures restricted in an area.
Table of Contents
- Hastelloy C22 Flanges Specification
- ASTM B564 Alloy C-22 Flanges Equivalent Grades
- Grade C22 Hastelloy Flanges Chemical Composition
- ASTM B564 Hastelloy C22 Flanges Mechanical Properties
- Alloy Grade C-22 Flanges Types
- Other Types of Hastelloy C22 Flanges in Stock
- ASTM B564 Hastelloy C22 Flanges Schedule / Class
- ASME B16.5 Hastelloy C22 Pipe Flanges Dimensions In MM
- Pressure Rating of Hastelloy C22 Pipe Flanges
ASME B16.5 Hastelloy C22 Lap Joint Flanges, ASTM B564 Alloy Grade C22 Socket Weld Flanges, UNS N06022 Spacer Ring Flanges, NW 6022 Threaded Flanges, C-22 Hastelloy Spectacle Blind Flanges, Hastelloy C22 Ring Type Joint Flanges, EN NiCr21Mo14W Welding Neck Flanges, DIN 2.4602 Slip-On Flanges, Hastelloy Alloy C22 Spectacle Blind Flanges Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Hastelloy C22 Flanges from Leading Manufacturer, Buy Alloy Grade C-22 Flanges Weld Neck Flanges at Best Price in India.
These Hastelloy C22 Forged Flanges come in different sizes and are being appreciated for excellent finish and high efficiency. Our Hastelloy C22 Weld Neck Flanges find applications across various industry verticals such as natural gas, petroleum, power generation, ship building, chemicals, and other industries. We offer Hastelloy C22 Socket Weld Flanges in different type of thickness, specification and dimensions that are being sourced from trustworthy manufacturers and thus ensuring stability and superior quality. Further, Hastelloy C22 Lap Joint Flanges own some exceptional strength through high resistance to corrosion. Hastelloy C22 Ring Type Joint Flanges are relatively well-known in the market for its long operating life and anti-corrosive properties.
Hastelloy C22 Flanges Specification
| Specification | ASTM B564/ ASME SB564 |
|---|---|
| Hastelloy C22 Flange Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Hastelloy C22 Flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Hastelloy C22 Flange Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM B564 Hastelloy C22 Flanges Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ASME SB564 Hastelloy C22 Flange | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ASME SB564 Hastelloy C22 Flange UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| B564 Hastelloy C22 Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Most common types of ASTM B564 Hastelloy C22 Flange | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ASME SB564M Hastelloy C22 Flange Production technique | Forged, Heat treated and machined |
| B564 Hastelloy C22 Flange Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| ASME B564 Alloy C22 Flange Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| ASTM B564 Hastelloy C22 Flange Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Alloy C-22 Flange Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of ASTM B564 Hastelloy C22 Flange | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| ASME SB564M Hastelloy C22 Flange Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| Alloy C-22 EN 1092-1 Flange Export to | Ireland, Singapore, Indonesia, Ukraine, Saudi & Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B564 Hastelloy C22 Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS |
| Hastelloy C22 | N06022 | 2.4602 | NiCr21Mo14W | NW 6022 |
ASME SB564 Hastelloy C22 Flanges Chemical Composition
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| Alloy C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
ASTM B564 Hastelloy C22 Flanges Mechanical Properties
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
ASTM B564 Hastelloy C22 Flanges Types

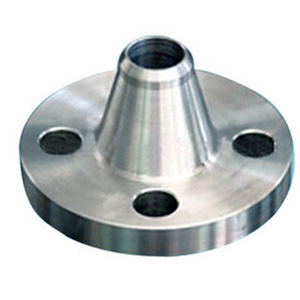

ASTM B564 Hastelloy C22 Welding Neck Flanges

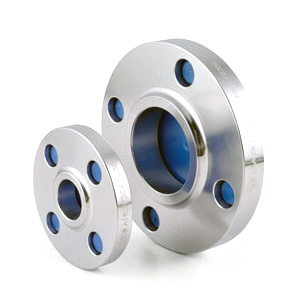

ASTM B564 Hastelloy C22 Slip-on Flanges

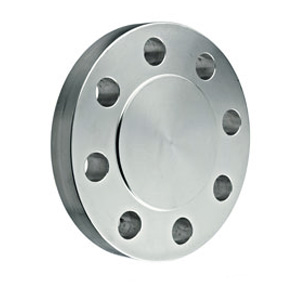

ASTM B564 Hastelloy C22 Blind Flanges

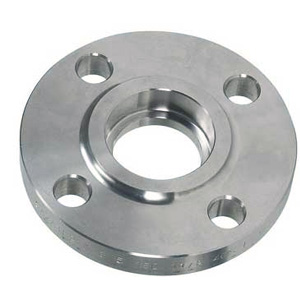

ASTM B564 Hastelloy C22 Socket weld Flanges
ASTM B564 Hastelloy C22 Long Weld Neck Flanges

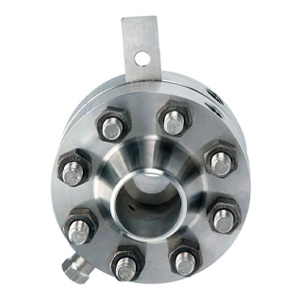

ASTM B564 Hastelloy C22 Orifice Flanges

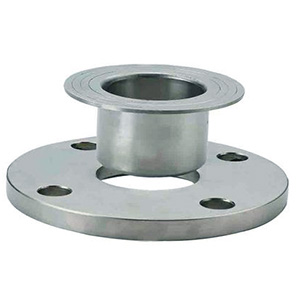

ASTM B564 Hastelloy C22 Lap Joint Flanges

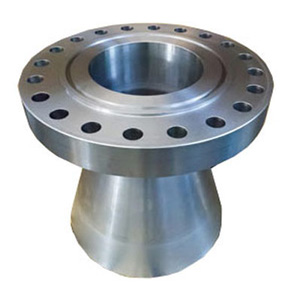

ASTM B564 Hastelloy C22 Expander Flanges

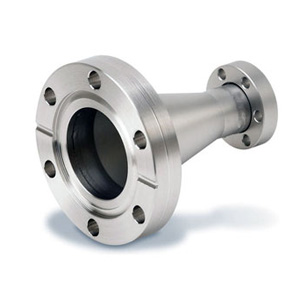

ASTM B564 Hastelloy C22 Nipolet Flanges

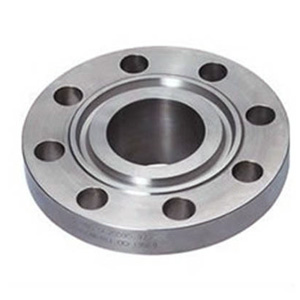

ASTM B564 Hastelloy C22 RTJ Flanges

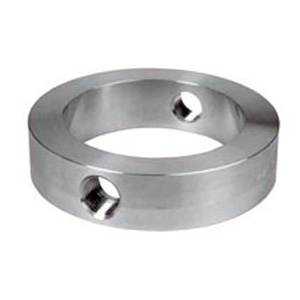

ASTM B564 Hastelloy C22 Bleed Ring Flanges

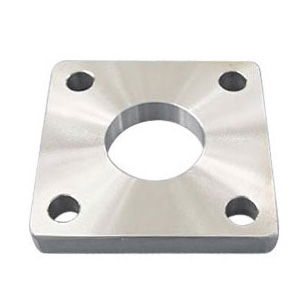

ASTM B564 Hastelloy C22 Square Flanges
ASTM B564 Hastelloy C22 Flanges Manufacturing Standards
| American Steel Flanges Standard | |
| Standard Code | Standard Name |
| ANSI ASME SB-564 | Forged Flanges |
| ANSI ASME B16.5 | Slip on flange, Welding neck flange, Blind flange, Threaded flange, Lap joint flange, RTJ flange |
| ASME – B 16.47 | Welding neck flange, Blind flange |
| ASME – B 16.36 | Welding neck flange Slip on flange |
| German Steel Flanges Standard | |
| DIN 2527 | Steel Blind Flanges, BLRF |
| DIN 2573 / 2576 | Flat Flange for Welding (Slip On) |
| DIN 2673 | Loose Flanges and Rings for Welding (Slip On Flanges and Plain Collars) |
| DIN 2641 / 2642 | Lapped / Loose (Lap Joint) Flanges Plain Collars |
| DIN 28115 | Long Neck Welding Flanges |
| DIN PN10, PN16 | Alloy C22 PN10 Flanges, C22 Hastelloy DIN PN 10 Flanges, C22 Hastelloy PN16 Flange |
| DIN PN20, PN25 | Alloy C22 PN20 Flanges, C22 Hastelloy® Alloy DIN PN 25 Flanges |
| DIN PN40, PN50 | Alloy C22 PN40 Flanges, C22 Hastelloy DIN PN 50 Flanges |
| Japanese Steel Flanges Standard | |
| JIS B2220 | Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL) |
| JIS B2291 | Slipon plate flange (SOP), Slipon Hub (SOH), Socket Welding flange (SW), Welding neck flange (WN), Lapjoint (LJ), Threaded flange (TR)/ Itegral flange (IT) Blank flange (BL) |
| JIS 5K, 10K | Hastelloy C22 5K SORF Flanges, C22 Hastelloy 10K SOFF Flanges |
| JIS 16K, 20K | Hastelloy C22 16K Blind Flanges, C22 Nickel Alloy 20K BLRF Flanges |
| JIS 30K, 40K | Hastelloy C22 30K Slip on Flanges, C22 Hastelloy 40K Blind Flanges |
| Italian Flanges Standard | |
| UNI FLANGES | Plan flanges (2276, 2277, 2278, 6083, 6084) Welding neck (2280, 2281, 2282, 2283, 2284, 2285, 2286) Lapped flanges (6088, 6089, 6090, 2999, 2300) Blind flanges (6091, 6092, 6093, 6094, 6095, 6096, 6097) threaded flanges (2253, 2254) |
| British Standard Pipe Flanges Standard | |
| BS 10 Table D | Hastelloy C22 BS 10 Table D Flanges, C22 Table D Pipe Flange |
| BS 10 Table E | Hastelloy C22 BS 10 Table E Flanges, C22 Table E Pipe Flange |
| BS 10 Table F | Nickel Alloy C22 BS 10 Table E Flanges, C22 Hastelloy Alloy Table E Flanges |
| BS 10 Table H | Hastelloy C22 BS 10 Table E Flanges, Hastelloy Alloy C22 Table E Pipe Flanges |
Other Types of Grade C22 Hastelloy Flanges in Stock
|
|
ASTM B564 Hastelloy C22 Flanges Schedule / Class
| Flange Schedule/Class | Pipe Size - Pipe Flanges | Flange Connection Type | Max. Pressure |
|---|---|---|---|
| ASME B16.5 Class 150 | 1/2" | FNPT | 150 psi |
| ASME B16.5 Class 150 | 1/2" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 1/2" | Welded | 150 psi |
| ASME B16.5 Class 150 | 3/4" | FNPT | 150 psi |
| ASME B16.5 Class 150 | 3/4" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 1-1/4" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 1-1/2" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 2" | FNPT | 150 psi |
| ASME B16.5 Class 150 | 2" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 2-1/2" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 3" | Socket Weld | 275 psi |
| ASME B16.5 Class 150 | 4" | FNPT | 150 psi |
| ASME B16.5 Class 150 | 4" | Socket Weld | 275 psi |
| ASME B16.5 Class 300 | 1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1-1/4" | FNPT | 720 psi |
| ASME B16.5 Class 300 | 1-1/4" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1-1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 1-1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 2-1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 2-1/2" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 3" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 3" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 4" | Slip On | 720 psi |
| ASME B16.5 Class 300 | 4" | Slip On | 720 psi |
ASME B16.5 Hastelloy C22 Pipe Flanges Dimensions
| NPS (in.) |
Hastelloy C22 Flanges Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Pressure Rating of Hastelloy C22 Pipe Flanges
| ASME/ANSI B 16.5 | Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Slip on Flange, Threaded Flange, Welding Neck Flange, |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
