Alloy C-22 Stub End, Hastelloy C22 Equal Tee, C22 Hastelloy Long Radius Elbow, UNS N06022 Seamless Pipe Fittings, Hastelloy Alloy C22 90 Degree Elbow Manufacturer in India.
Unifit Metalloys Inc is a renowned supplying unit of Hastelloy Alloy C22 Pipe Fittings, which is available in different sizes and shapes for our esteemed clients. We pledge to meet our client’s demands by offering Alloy C22 Elbow Pipe Fittings with great experience with compassion through a dedicated professional team. We commit to achieve quality services of Hastelloy Alloy C22 Tee Pipe Fittings through the Quality Management System while fulfilling with all appropriate regulatory requirements. Customer satisfaction for Hastelloy C22 Cross Pipe Fittings shall always be our top priority. And thus we shall strive for continuous quality improvement of Hastelloy C22 Reducer Pipe Fittings and comply with international standards to implement quality systems.
Table of Contents
- ASTM B366 Hastelloy C22 Pipe Fittings Specification
- ASTM B366 Hastelloy C22 Buttweld Fittings Equivalent Grades
- Hastelloy C22 Butt weld Fittings Chemical Composition
- ASTM B366 Hastelloy C22 Pipe Fittings Mechanical Properties
- ASTM B366 Hastelloy C22 Pipe Fittings Types
- Other Types of ASTM B366 Hastelloy C22 Fittings in Stock
- ASTM B366 Hastelloy C22 Pipe Fittings Dimensions Standard
ASME SB366 Hastelloy C22 Concentric Reducer, Hastelloy C22 Long Radius Elbow, Hastelloy® Alloy C22 Tee, EN NiCr21Mo14W Two Joint Pipe Fittings, Alloy C22 Eccentric Reducer Supplier in Mumbai, India.
Get a best quote for Hastelloy C22 Seamless Pipe Fittings from Leading Manufacturer, Buy Hastelloy Alloy C22 Butt weld Elbow at Best Price in India.
We also strive for ‘excellence’ by offering customized solutions and services for Hastelloy C22 Bend Pipe Fittings that best satisfies the requirements of our Customers. To pursue global standards of excellence in all our endeavors and continuing in giving customer satisfaction for Hastelloy C22 Stub End Pipe Fittings and also to remain accountable in our core and support functions, through processes of self-evaluation and continuous improvement. The basic objective of our company in the area of quality is continuous improvement of the quality processes for Hastelloy C22 End Cap Pipe Fittings, which we may achieve only through the inclusion of all processes, operational functions and employees in the system of quality management, and in this way we can facilitate its effective functioning.
ASTM B366 Hastelloy C22 Pipe Fittings Specification
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Pipe Fittings size | Seamless Hastelloy C22 Butt Weld Fittings : 1/2" - 10" Welded Hastelloy C22 Butt Weld Fittings : 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pipe Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Pipe fittings Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Pipe Fittings Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Pipe Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Pipe Fittings Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Buttweld Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Pipe Fittings uses & application | |
| Material Test Certificates (MTC) for Hastelloy C22 Pipe Fittings as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B366 Hastelloy C22 Pipe Fittings
| Seamless/ Welded 100% Radiography Tested | ||
| Products | Size | |
| ASTM B366 Hastelloy C22 Elbow – Long Radius | ASTM B366 Hastelloy C22 45° Elbow | Sizes 1/2″ – 48″ |
| ASTM B366 Hastelloy C22 Elbow – Short Radius | ASTM B366 Hastelloy C22 Cross | |
| ASTM B366 Hastelloy C22 3D Elbow | ASTM B366 Hastelloy C22 5D Elbow | |
| ASTM B366 Hastelloy C22 Stub Ends | ASTM B366 Hastelloy C22 Pipe Bend | |
| ASTM B366 Hastelloy C22 Fabricated Tee | ASTM B366 Hastelloy C22 End Cap | |
| ASTM B366 Hastelloy C22 Reducer | ASTM B366 Hastelloy C22 Tees | |
| ASTM B366 Hastelloy C22 Reducing Elbow | ASTM B366 Hastelloy C22 Pipe Nipple | |
| ASTM B366 Hastelloy C22 Reducing Cross | ASTM B366 Hastelloy C22 Eccentric Reducer | |
| ASTM B366 Hastelloy C22 Concentric Reducer | ASTM B366 Hastelloy C22 Welded Pipe Fittings | |
ASME SB 366 Hastelloy C22 Buttweld Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
ASTM B366 Hastelloy C22 Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
ASME SB 366 Hastelloy C22 Pipe Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
ASTM B366 Hastelloy C22 Pipe Fittings Types
ASTM B366 Hastelloy C22 45° Elbow

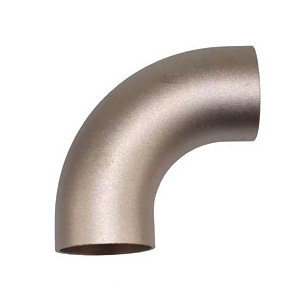

ASTM B366 Hastelloy C22 90° Elbow

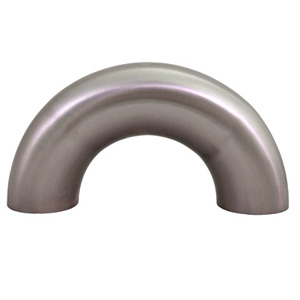

ASTM B366 Hastelloy C22 180° Elbow

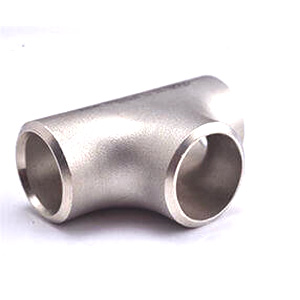

ASTM B366 Hastelloy C22 Equal Tee

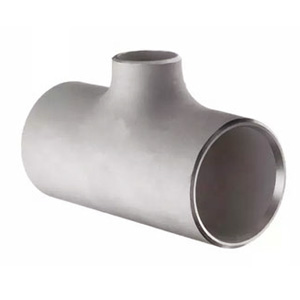

ASTM B366 Hastelloy C22 Reducing Tee

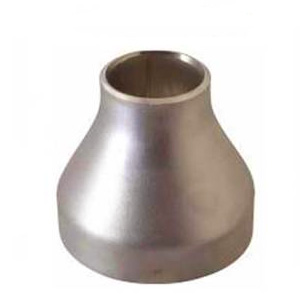

ASTM B366 Hastelloy C22 Concentric Reducer

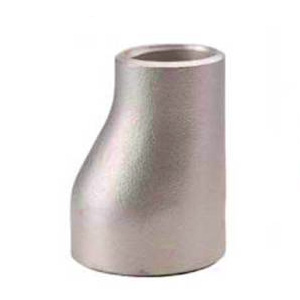

ASTM B366 Hastelloy C22 Eccentric Reducer
ASTM B366 Hastelloy C22 Pipe End Cap

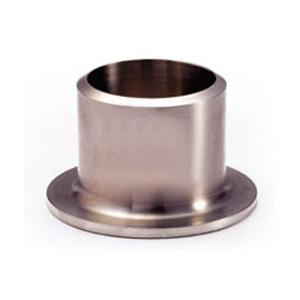

ASTM B366 Hastelloy C22 Stub End

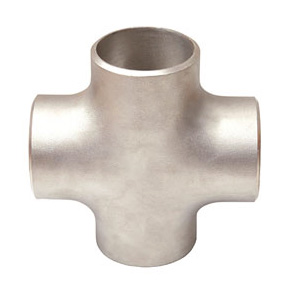

ASTM B366 Hastelloy C22 Cross
ASTM B366 Hastelloy C22 Pipe Bend

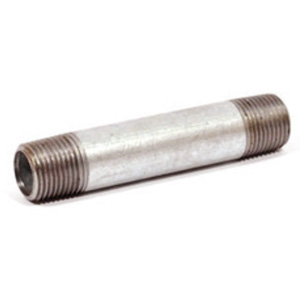

ASTM B366 Hastelloy C22 Pipe Nipples
ASTM B366 Hastelloy C22 Butt weld Pipe Fittings Manufacturing Standards
| Standard Code | Standard Name |
|---|---|
| American Steel Pipe Fittings Standard | |
| ANSI ASME SB-366 | Forged Durimet pipe fittings |
| ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
| ANSI ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ISO 5251 | Nickel butt-welding fittings |
| MSS SP-43 | Wrought Nickel butt-welding fittings |
| MSS SP-75 | Forging butt-welding fittings |
| German Steel Pipe Fittings Standard | |
| DIN 2605 | Steel butt-welding pipe fittings.elbows and bends |
| DIN 2615 | Steel butt-welding pipe fittings.tees |
| DIN 2616 | Steel butt-welding pipe fittings.reducers |
| DIN 2617 | Steel butt-welding pipe fittings.caps |
| Japanese Steel Pipe Fittings Standard | |
| JIS B2311 | Universal steel butt-welding pipe fittings |
| JIS B2312 | Steel butt-welding pipe fittings |
| JIS B2313 | Steel plate butt-welding pipe fittings |
| Other Steel Pipe Fittings Standard | |
| EN 1025 | 3 Butt-welding pipe fittings |
Other Types of Hastelloy C22 Fittings in Stock
|
|
ASTM B366 Hastelloy C22 Pipe Fittings Dimensions Standard
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) |
Center to Face (Inches) |
Center to Face (Inches) |
Radius (Inches) |
Center to Center (Inches) |
Back to face (Inches) |
|
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | ASME B16.9 Pipe End Cap | ASME B16.9 Straight Tee | ASME B16.9 Straight Cross | ASME B16.9 Long And Short Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inch./ Inches) | (millimeter/ MM) | (Inches) | Length (Inches) |
Center to End (Inches) |
Center to End (Inches) |
Lap Diameter (Inches) |
Long Length (Inches) |
Short Length (Inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
