Stainless Steel 304 Pipe Fittings Manufacturer

  Home   Products

Stainless Steel 304 LR Elbow, Stainless Steel 304 Reducer, SS DIN 1.4301 Stub End Manufacturer in India.

Unifit Metalloys Inc is a known manufacturing unit of SS 304 Pipe Fittings, which is offered to close receptions and reviewed as per customers’ specifications. SS 304 Elbow is the standard “18 / 8 stainless” that is commonly found in pans and cooking tools. ASTM A403 WP304 Tee can be used in an "as welded" condition. Our Stainless Steel 304 Elbow Pipe Fittings are appreciated for the dependability and toughness that our clienteles obtain from us. Stainless Steel 304 Equal Cross has high ductility, excellent forming, spinning and drawing properties. This is available in an assortment of customized and standard sizes. Essentially, Stainless Steel 304 Lateral Tee Pipe Fittings is an austenitic chromium alloy which is also known as an "18/8" stainless as the make-up of the steel is 18 percent chromium and 8 percent nickel.

Pipe Fittings Manufacturing Factory

Pipe Fittings

Manufacturing Factory

Table of Contents

Stainless Steel UNS S30400 Pipe Fittings, 304 Stainless Steel Seamless Pipe Fittings, ASME SA403 SS 304 Pipe End Cap Exporter Supplier in Mumbai, India.

Stainless Steel 304 Pipe Fittings

Get a best quote for ASME B16.9 SS 304 Seamless Fittings from Leading Manufacturer, Buy SS 304 Butt weld Elbow at Best Price in India.


Stainless Steel 304 Reducer is machine-made by us and has unchangeable wideness all over the thickness and comprehensive length by means of acceptance level that is even better than the receptions admissible by international standards. This property has resulted in Stainless Steel 304 Eccentric & Concentric Reducer being the dominant grade used in applications like sinks and saucepans. Stainless Steel 304 Bend depends on the temperature and subsequently exposed to aggressive corrosive environments.

We are a familiar name indulged in presenting these Stainless Steel 304 Tee Pipe Fittings for a number of applications like for organizational tenacities and general and mechanical engineering functions. By using sophisticated machinery and advanced machines, we are presenting a wide range of these Stainless Steel 304 Cross, 304l Stainless Steel Pipe Fittings & 316 Stainless Steel Pipe Fittings which is also used in construction and civil engineering sectors. Offering an intact safety, our manufacturing Stainless Steel 304 Bend is obtainable in a number of designs and shapes. Stainless Steel 304 Dish Cap Pipe Fittings exhibit good machinability. Stainless Steel UNS S30400 Pipe Fittings creates other entries for more specific heat treatments and forms. UNS S30400 Pipe Fittings has lower carbon content to minimize carbide precipitation. Made-up from best quality of steel, these Stainless Steel 304 Stub End are accessible in a number of sizes. Being a well-known name in this field, we are engaged in offering these Stainless Steel 304 End Cap Pipe Fittings, which are leak proof and available in different technical specifications.

Stainless Steel 304 Pipe Fittings Specification

Specifications ASTM A403 / ASME SA403
Pipe Fittings size Seamless Stainless Steel Butt Weld Fittings: 1/2" - 10"
Welded Stainless Steel Butt Weld Fittings: 1/2" - 48"
Pipe Fittings Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Pipe Fittings Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Pipe fittings Types Seamless / ERW / Welded / Fabricated
Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Pipe Fittings Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Pipe Fittings Manufacturing process Push, Press, Forge, Cast, etc.
Pipe Fittings Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Specialized manufacturer of 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees
Buttweld Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Pipe Fittings uses & application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • Schedule 10 Stainless Steel 304 fittings are an economical alternative for lower-pressure applications.
  • Schedule 40 Steel 304 fittings have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) for Stainless Steel 304 Pipe Fittings as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASTM A403 WP304 Stainless Steel Buttweld Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18‐09 X5CrNi18-10

Grade WP304 Stainless Steel Butt weld Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 - 8 – 11 -

ASTM A403 Stainless Steel 304 Pipe Fittings Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

SS 304 Pipe Fittings Types

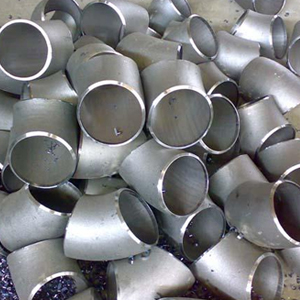

Stainless Steel 304 45° Elbow
Stainless Steel 304 45° Elbow

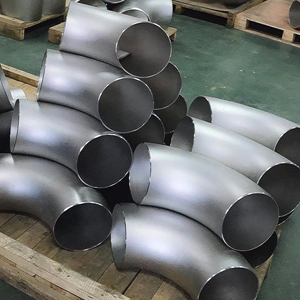

Stainless Steel 304 90° Elbow
Stainless Steel 304 90° Elbow

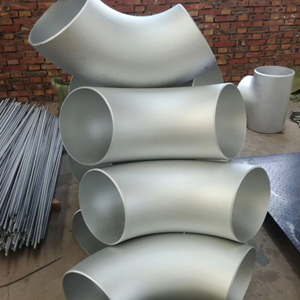

Stainless Steel 304 180° Elbow
Stainless Steel 304 180° Elbow

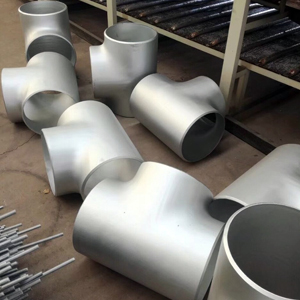

Stainless Steel 304 Equal Tee
Stainless Steel 304 Equal Tee

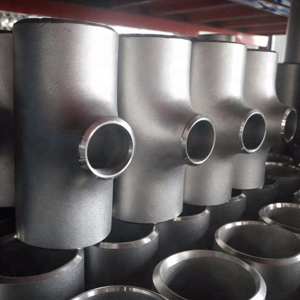

Stainless Steel 304 Reducing Tee
Stainless Steel 304 Reducing Tee
Stainless Steel 304 Concentric Reducer
Stainless Steel 304 Concentric Reducer

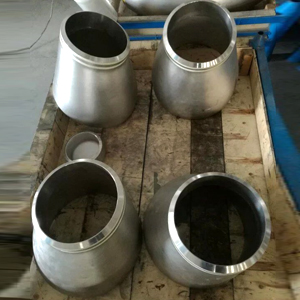

Stainless Steel 304 Eccentric Reducer
Stainless Steel 304 Eccentric Reducer

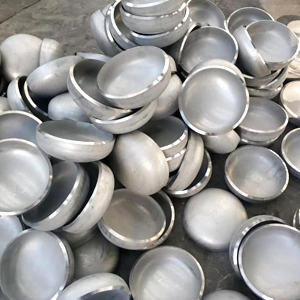

Stainless Steel 304 Pipe End Cap
Stainless Steel 304 Pipe End Cap

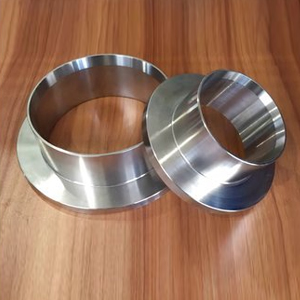

Stainless Steel 304 Stub End
Stainless Steel 304 Stub End

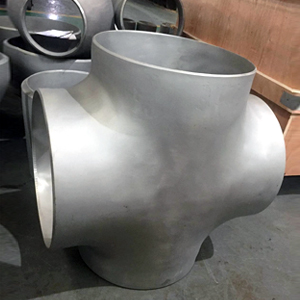

Stainless Steel 304 Cross
Stainless Steel 304 Cross

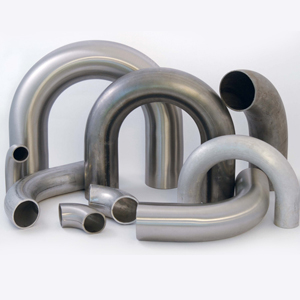

Stainless Steel 304 Pipe Bend
Stainless Steel 304 Pipe Bend
Stainless Steel 304 Pipe Nipples
Stainless Steel 304 Pipe Nipples

Stainless Steel 304 Butt weld Pipe Fittings Manufacturing Standards

American Steel Pipe Fittings Standard
Standard Code Standard Name
ANSI ASME SA-403 Forged Durimet pipe fittings
ANSI ASME B16.9 Factory-Made wrought steel pipe fittings
ANSI ASME B16.28 Wrought steel butt-welding short radius elbows and returns
ISO 5251 Stainless steel butt-welding fittings
MSS SP-43 Wrought stainless steel butt-welding fittings
MSS SP-75 Forging butt-welding fittings
German Steel Pipe Fittings Standard
DIN 2605 Steel butt-welding pipe fittings.elbows and bends
DIN 2615 Steel butt-welding pipe fittings.tees
DIN 2616 Steel butt-welding pipe fittings.reducers
DIN 2617 Steel butt-welding pipe fittings.caps
Japanese Steel Pipe Fittings Standard
JIS B2311 Universal steel butt-welding pipe fittings
JIS B2312 Steel butt-welding pipe fittings
JIS B2313 Steel plate butt-welding pipe fittings
Other Steel Pipe Fittings Standard
EN 1025 3 Butt-welding pipe fittings

Other Types of Grade 304 Stainless Steel Pipe Fittings in Stock

  • Stainless Steel 1.4301 Stub End
  • UNS S30400 Stub End
  • Stainless Steel 304 Short Stub End
  • Stainless Steel 304 Reducing Cross
  • ASME SA403 WP304 Short Radius Elbow
  • UNS S30400 1D Elbow
  • ASME SA403 WP304 Stainless Steel Pipe Bend
  • Stainless Steel 1.4301 Lateral Tee
  • Stainless Steel 304 Equal Tee
  • ASTM A403 WP304 Pipe Bend
  • SS A403 WP304 Equal Cross
  • 304 Stainless Steel Straight Tees
  • ASTM A403 SS WP304 Pipe Fittings
  • 304 SS 5D Elbow
  • SS JIS SUS 304 Lap Joint Stub End
  • Stainless Steel 1.4301 Elbow
  • Stainless Steel BS 304S31 Concentric Reducer
  • ASME SA403 WP304 3D Elbow
  • SS A403 WP304 5D Elbow
  • ASME SA403 WP304 90 Degree Elbow
  • Stainless Steel EN X5CrNi18-10 Eccentric Reducer
  • 304 SS Buttweld Reducer
  • SS DIN 1.4301 Stub End Exporter
  • SS 304 Elbow Stockist
  • SS 304 Equal Cross
  • 304 SS Eccentric Reducer
  • UNS S30400 Long Stub End
  • ASTM A403 WP304 Cross Tee
  • Stainless Steel 304 Pipe Cap
  • UNS S30400 End Cap
  • Stainless Steel 1.4301 Pipe Cap
  • SS A403 WP304 45 Degree Elbow
  • SS 304 Pipe Fitting
  • ASTM A403 WP304 Long Radius Elbow
  • SS A403 WP304 Equal Cross
  • ASTM A403 WP304 End Cap
  • Stainless Steel 304 Concentric Reducer
  • Stainless Steel 304 Reducer
  • ASTM A403 Stainless Steel WP304 U Bend
  • 304 SS Stub End
  • 304 SS 90 Degree LR Elbow
  • SS UNS S30400 Short Stub End
  • SS GOST Z7CN18‐09 Piggable Bend
  • Stainless Steel 304 Long Stub End
  • ASME SA403 WP304 Concentric Reducer
  • AFNOR Z7CN18‐09 Stainless Steel 304 Pipe Fittings

Manufacturer and Supplier of SS 304 90 Degree Long /Short Radius Elbow in India, view weight chart & dimensions

Thickness Chart of Stainless Steel 304 Pipe Fittings

Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee 90° Elbow 45° Elbow Equal tee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.4 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.61
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91
Product range and theoretical weights (kg)
DN Schedule 10S Schedule 40S Schedule 80S
Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee Con reducer Ecc reducer Reducing tee
40x.25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50x25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50x40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80x.50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100x50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100x80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150x80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150x100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200x100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200x150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31
