ASTM B363 Ti Alloy Gr. 2 Buttweld Pipe Fittings, Titanium UNS R50400 Butt weld Fittings, Titanium Gr 2 Pipe Fittings, Titanium Alloy Gr.2 Pipe Elbow Manufacturer in India.
Unifit Metalloys Inc is a renowned manufacturing and exporting unit of Titanium Alloy Grade 2 Pipe Fittings, which are offered as per international standard quality of raw materials and find application all over different sectors. Titanium Grade 2 Elbow Pipe Fittings is an internal or external rib, or lip, for potency, or for a direct, as the flange on the end of a pipe, steam cylinder, etc. These Titanium Grade 2 Tee Pipe Fittings can as well be a ring or plate to make a rim at the end of a pipe when fixed firmly to the pipe. Titanium Grade 2 Cross Pipe Fittings are available in customized length, sizes and shapes at market leading prices.
Table of Contents
- ASTM B363 Titanium Gr. 2 Pipe Fittings Specification
- ASTM B363 Titanium Gr. 2 Buttweld Fittings Equivalent Grades
- Titanium Gr. 2 Butt weld Fittings Chemical Composition
- ASTM B363 Titanium Gr. 2 Pipe Fittings Mechanical Properties
- ASTM B363 Titanium Gr. 2 Pipe Fittings Types
- Other Types of ASTM B363 Titanium Gr. 2 Fittings in Stock
- ASTM B363 Titanium Gr. 2 Pipe Fittings Dimensions Standard
Ti Alloy Gr.2 Cross, Titanium UNS R50400 Pipe Fittings, ASME SB363 Titanium Gr.2 Reducers, Titanium Alloy Gr.2 Stub Ends, Grade 2 Titanium 45 / 90 / 180 Deg. Reducing Elbow Supplier in Mumbai, India.
Get a best quote for Titanium Gr. 2 Seamless Pipe Fittings from Leading Manufacturer, Buy Titanium Gr. 2 Butt weld Elbow at Best Price in India.
Titanium Grade 2 Reducer Pipe Fittings is a collar, ring or disc type that joins to pipe by means of the function of offering increased backing for potency, blocking off a pipeline or applying the attachment of more items. Titanium Grade 2 Bend Pipe Fittings are typically screwed or welded to the pipe end and are joined in the company of bolts. Titanium Grade 2 Stub End Pipe Fittings is used for precise functions at times within equipped by means of layers of materials of an entirely dissimilar quality as the metals themselves. Titanium Grade 2 End Cap Pipe Fittings is fundamentally set during the preference of the pipe, where in most of the cases, a metal is of the similar material as the pipe.
ASTM B363 Titanium Gr. 2 Pipe Fittings Specification
| Specifications | ASTM B363 / ASME SB363 |
|---|---|
| Pipe Fittings size | Seamless Titanium Gr. 2 Butt Weld Fittings : 1/2" - 10" Welded Titanium Gr. 2 Butt Weld Fittings : 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pipe Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Pipe fittings Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Pipe Fittings Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Pipe Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Pipe Fittings Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Buttweld Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Pipe Fittings uses & application | |
| Material Test Certificates (MTC) for Titanium Gr. 2 Pipe Fittings as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B363 Titanium Gr. 2 Pipe Fittings
| Seamless/ Welded 100% Radiography Tested | ||
| Products | Size | |
| ASTM B363 Titanium Gr. 2 Elbow – Long Radius | ASTM B363 Titanium Gr. 2 45° Elbow | Sizes 1/2″ – 48″ |
| ASTM B363 Titanium Gr. 2 Elbow – Short Radius | ASTM B363 Titanium Gr. 2 Cross | |
| ASTM B363 Titanium Gr. 2 3D Elbow | ASTM B363 Titanium Gr. 2 5D Elbow | |
| ASTM B363 Titanium Gr. 2 Stub Ends | ASTM B363 Titanium Gr. 2 Pipe Bend | |
| ASTM B363 Titanium Gr. 2 Fabricated Tee | ASTM B363 Titanium Gr. 2 End Cap | |
| ASTM B363 Titanium Gr. 2 Reducer | ASTM B363 Titanium Gr. 2 Tees | |
| ASTM B363 Titanium Gr. 2 Reducing Elbow | ASTM B363 Titanium Gr. 2 Pipe Nipple | |
| ASTM B363 Titanium Gr. 2 Reducing Cross | ASTM B363 Titanium Gr. 2 Eccentric Reducer | |
| ASTM B363 Titanium Gr. 2 Concentric Reducer | ASTM B363 Titanium Gr. 2 Welded Pipe Fittings | |
ASME SB 366 Titanium Gr. 2 Buttweld Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
ASTM B363 Titanium Gr. 2 Pipe Fittings Chemical Composition
| Element | Ti | C | Fe | H | N | O |
| Titanium Gr 2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max |
ASME SB 366 Titanium Gr. 2 Pipe Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti Gr 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
ASTM B363 Titanium Gr. 2 Pipe Fittings Types

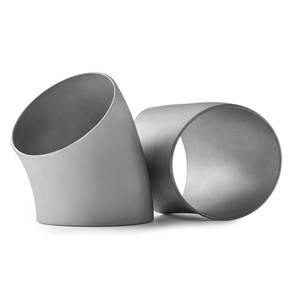

ASTM B363 Titanium Gr. 2 45° Elbow

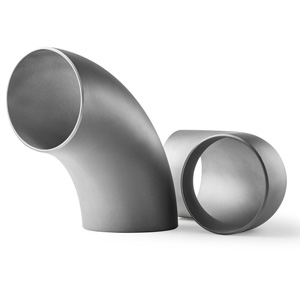

ASTM B363 Titanium Gr. 2 90° Elbow
ASTM B363 Titanium Gr. 2 180° Elbow

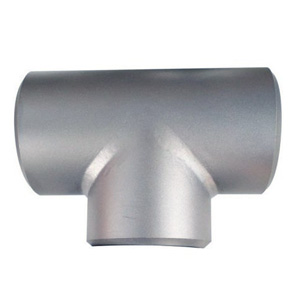

ASTM B363 Titanium Gr. 2 Equal Tee

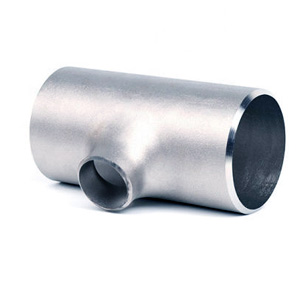

ASTM B363 Titanium Gr. 2 Reducing Tee

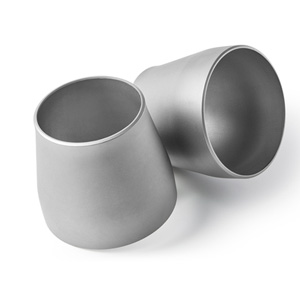

ASTM B363 Titanium Gr. 2 Concentric Reducer

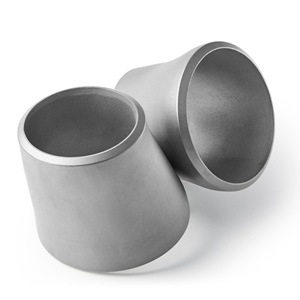

ASTM B363 Titanium Gr. 2 Eccentric Reducer

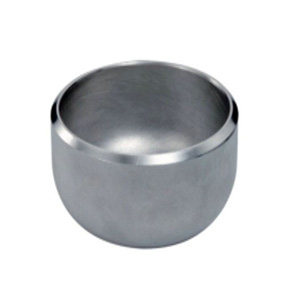

ASTM B363 Titanium Gr. 2 Pipe End Cap

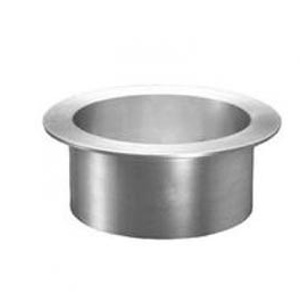

ASTM B363 Titanium Gr. 2 Stub End

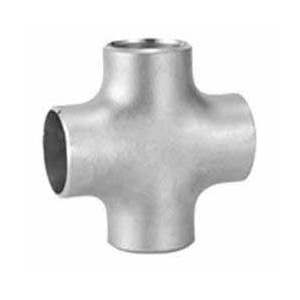

ASTM B363 Titanium Gr. 2 Cross

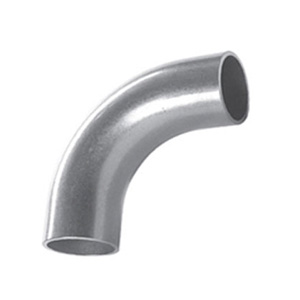

ASTM B363 Titanium Gr. 2 Pipe Bend

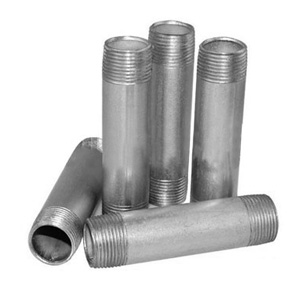

ASTM B363 Titanium Gr. 2 Pipe Nipples
ASTM B363 Titanium Grade 2 Butt weld Pipe Fittings Manufacturing Standards
| Standard Code | Standard Name |
|---|---|
| American Steel Pipe Fittings Standard | |
| ANSI ASME SB-363 | Forged Durimet pipe fittings |
| ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
| ANSI ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ISO 5251 | Nickel butt-welding fittings |
| MSS SP-43 | Wrought Nickel butt-welding fittings |
| MSS SP-75 | Forging butt-welding fittings |
| German Steel Pipe Fittings Standard | |
| DIN 2605 | Steel butt-welding pipe fittings.elbows and bends |
| DIN 2615 | Steel butt-welding pipe fittings.tees |
| DIN 2616 | Steel butt-welding pipe fittings.reducers |
| DIN 2617 | Steel butt-welding pipe fittings.caps |
| Japanese Steel Pipe Fittings Standard | |
| JIS B2311 | Universal steel butt-welding pipe fittings |
| JIS B2312 | Steel butt-welding pipe fittings |
| JIS B2313 | Steel plate butt-welding pipe fittings |
| Other Steel Pipe Fittings Standard | |
| EN 1025 | 3 Butt-welding pipe fittings |
Other Types of Titanium Grade 2 Fittings in Stock
|
|
ASTM B363 Titanium Gr. 2 Pipe Fittings Dimensions Standard
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) |
Center to Face (Inches) |
Center to Face (Inches) |
Radius (Inches) |
Center to Center (Inches) |
Back to face (Inches) |
|
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | ASME B16.9 Pipe End Cap | ASME B16.9 Straight Tee | ASME B16.9 Straight Cross | ASME B16.9 Long And Short Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inch./ Inches) | (millimeter/ MM) | (Inches) | Length (Inches) |
Center to End (Inches) |
Center to End (Inches) |
Lap Diameter (Inches) |
Long Length (Inches) |
Short Length (Inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
