Monel NW 4400 Pipe Elbow, Alloy 400 Short Radius Elbow, ASTM B366 Monel 400 90 degree Elbow, Monel Alloy 400 Reducer Manufacturer in India.
Unifit Metalloys Inc is a renowned manufacturing unit of Monel Alloy 400 Butt Weld Pipe Fittings, which has slightly lower mechanical properties than the standard grade. Monel 400 Elbow Pipe Fittings is an extra low-carbon variation of Steel with a 0.03% maximum carbon content that eliminates carbide precipitation due to welding. As a result, this Monel 400 Tee Pipe Fittings can be used in the “as-welded” condition, even in severe corrosive conditions. Post-weld annealing is not normally required in Monel 400 Cross Pipe Fittings for to restore the excellent performance of these grades in a wide range of mildly corrosive conditions. Weld annealing of Monel 400 Reducer Pipe Fittings is only necessary in applications where stress loads are excessive.
Table of Contents
- ASTM B366 Monel 400 Pipe Fittings Specification
- ASTM B366 Monel 400 Buttweld Fittings Equivalent Grades
- Monel 400 Butt weld Fittings Chemical Composition
- ASTM B366 Monel 400 Pipe Fittings Mechanical Properties
- ASTM B366 Monel 400 Pipe Fittings Types
- Other Types of ASTM B366 Monel 400 Fittings in Stock
- ASTM B366 Monel 400 Pipe Fittings Dimensions Standard
Monel 400 Seamless Pipe Fittings, ASME SB366 Monel 400 Pipe End Cap, Monel WNR. 2.4360 Cross, Alloy 400 Equal Tee, DIN 2.4360 Stub End, Monel 400 Equal Tee Supplier in Mumbai, India.
Get a best quote for Monel 400 Seamless Pipe Fittings from Leading Manufacturer, Buy Monel 400 Butt weld Elbow at Best Price in India.
Monel 400 Bend Pipe Fittings has good oxidation resistance in intermittent service to 870 Degree C and in continuous service to 925 Degree C. Meanwhile, low carbon content in these Monel 400 Stub End Pipe Fittings means less carbide precipitation in the heat-affected zone during welding and a lower susceptibility to inter-granular corrosion. Monel 400 End Cap Pipe Fittings is an economical and versatile corrosion resistant stainless steel suitable for a wide range of general purpose applications. Monel 400 Dish Cap Pipe Fittings is mainly used in welding applications where corrosion resistance is a concern. For example, Monel UNS N04400 Pipe Fittings is frequently used in automotive fuel lines and other tubing applications.
ASTM B366 Monel 400 Pipe Fittings Specification
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Pipe Fittings size | Seamless Nickel Alloy Butt Weld Fittings : 1/2" - 10" Welded Nickel Alloy Butt Weld Fittings : 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pipe Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Pipe fittings Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Pipe Fittings Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Pipe Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Pipe Fittings Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Buttweld Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Pipe Fittings uses & application | |
| Material Test Certificates (MTC) for Monel 400 Pipe Fittings as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B366 Monel 400 Pipe Fittings
| Seamless/ Welded 100% Radiography Tested | ||
| Products | Size | |
| ASTM B366 Monel 400 Elbow – Long Radius | ASTM B366 Monel 400 45° Elbow | Sizes 1/2″ – 48″ |
| ASTM B366 Monel 400 Elbow – Short Radius | ASTM B366 Monel 400 Cross | |
| ASTM B366 Monel 400 3D Elbow | ASTM B366 Monel 400 5D Elbow | |
| ASTM B366 Monel 400 Stub Ends | ASTM B366 Monel 400 Pipe Bend | |
| ASTM B366 Monel 400 Fabricated Tee | ASTM B366 Monel 400 End Cap | |
| ASTM B366 Monel 400 Reducer | ASTM B366 Monel 400 Tees | |
| ASTM B366 Monel 400 Reducing Elbow | ASTM B366 Monel 400 Pipe Nipple | |
| ASTM B366 Monel 400 Reducing Cross | ASTM B366 Monel 400 Eccentric Reducer | |
| ASTM B366 Monel 400 Concentric Reducer | ASTM B366 Monel 400 Welded Pipe Fittings | |
ASME SB 366 Monel 400 Buttweld Fittings Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
ASTM B366 Monel 400 Pipe Fittings Chemical Composition
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S | Co | Cr |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max | – | – |
ASME SB 366 Monel 400 Pipe Fittings Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
ASTM B366 Monel 400 Pipe Fittings Types

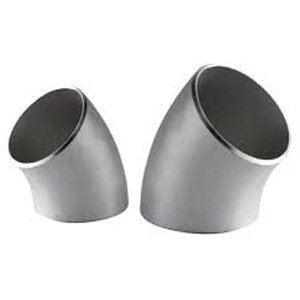

ASTM B366 Monel 400 45° Elbow

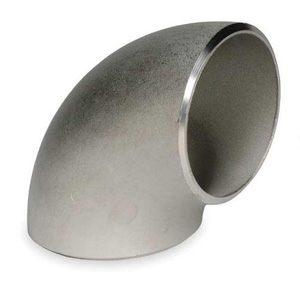

ASTM B366 Monel 400 90° Elbow

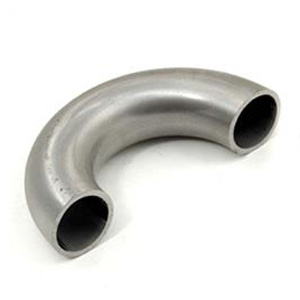

ASTM B366 Monel 400 180° Elbow

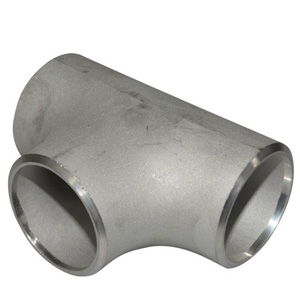

ASTM B366 Monel 400 Equal Tee

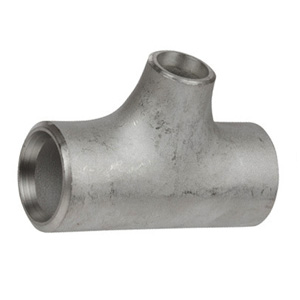

ASTM B366 Monel 400 Reducing Tee

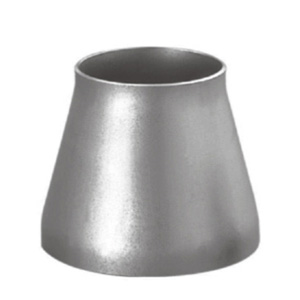

ASTM B366 Monel 400 Concentric Reducer

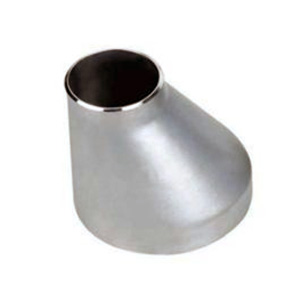

ASTM B366 Monel 400 Eccentric Reducer

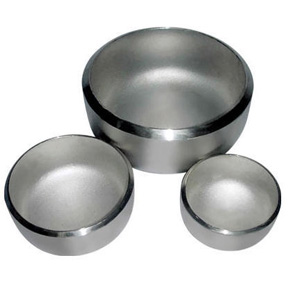

ASTM B366 Monel 400 Pipe End Cap
ASTM B366 Monel 400 Stub End

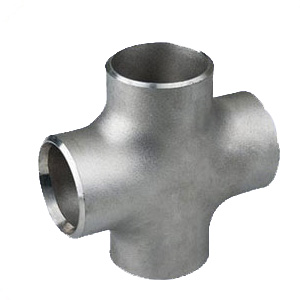

ASTM B366 Monel 400 Cross

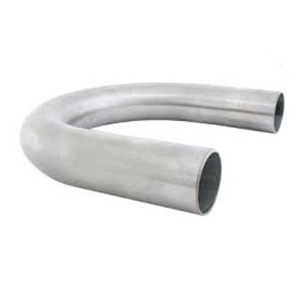

ASTM B366 Monel 400 Pipe Bend

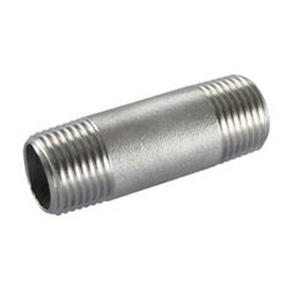

ASTM B366 Monel 400 Pipe Nipples
ASTM B366 Monel 400 Butt weld Pipe Fittings Manufacturing Standards
| Standard Code | Standard Name |
|---|---|
| American Steel Pipe Fittings Standard | |
| ANSI ASME SA-366 | Forged Durimet pipe fittings |
| ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
| ANSI ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ISO 5251 | Nickel butt-welding fittings |
| MSS SP-43 | Wrought Nickel butt-welding fittings |
| MSS SP-75 | Forging butt-welding fittings |
| German Steel Pipe Fittings Standard | |
| DIN 2605 | Steel butt-welding pipe fittings.elbows and bends |
| DIN 2615 | Steel butt-welding pipe fittings.tees |
| DIN 2616 | Steel butt-welding pipe fittings.reducers |
| DIN 2617 | Steel butt-welding pipe fittings.caps |
| Japanese Steel Pipe Fittings Standard | |
| JIS B2311 | Universal steel butt-welding pipe fittings |
| JIS B2312 | Steel butt-welding pipe fittings |
| JIS B2313 | Steel plate butt-welding pipe fittings |
| Other Steel Pipe Fittings Standard | |
| EN 1025 | 3 Butt-welding pipe fittings |
Other Types of Monel 400 Fittings in Stock
|
|
ASTM B366 Monel 400 Pipe Fittings Dimensions Standard
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) |
Center to Face (Inches) |
Center to Face (Inches) |
Radius (Inches) |
Center to Center (Inches) |
Back to face (Inches) |
|
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | ASME B16.9 Pipe End Cap | ASME B16.9 Straight Tee | ASME B16.9 Straight Cross | ASME B16.9 Long And Short Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inch./ Inches) | (millimeter/ MM) | (Inches) | Length (Inches) |
Center to End (Inches) |
Center to End (Inches) |
Lap Diameter (Inches) |
Long Length (Inches) |
Short Length (Inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Pressure Rating Class of ASTM B366 Monel 400 Pipe Fittings
| Pressure-Temperature ratings for Monel 400 Pipe Fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
