Alloy C22 CR Sheets, Hastelloy Alloy C22 Shim Sheets, ASTM B575 Hastelloy C22 Sheets, Hastelloy® Alloy C22 Sheet Cut To Size, UNS N06022 Chequered Plates Manufacturer in India.
Unifit Metalloys Inc is a popular distributor and stockist of Hastalloy Alloy C22 Sheets / Plates, which are worldwide recognized for its conformity by means of the industry set norms. Hastalloy C22 Sheets is used in Automotive components, Kitchen equipment, wheel covers, hose clamps, conveyor belts, springs, railway and subway cars, etc. Truck and trailer bodies, are some of the major applications for these Hastalloy C22 Plates. The resistance to environment corrosion of Hastalloy C22 Coils and its intense surface finish make it an excellent selection for enhancing structural applications. These Hastalloy Alloy C22 Slatting Sheets are extensively used in a range of applications like structural and mechanical & general engineering functions. Used in different industrial applications, these Alloy C22 Slatting Plates are manufactured by the veteran professionals from high-quality raw material and superior technology.
Table of Contents
- Hastelloy C22 Sheets & Plates Specification
- ASTM B575 C22 Hastelloy Alloy Sheets & Plates Equivalent Grades
- Grade C-22 Hastelloy Alloy Sheets & Plates Chemical Composition
- ASTM B575 Hastelloy C22 Sheets & Plates Mechanical Properties
- Hastelloy C22 Sheets & Plates Types
- Other Types of Grade C-22 Hastelloy Sheets & Plates in Stock
- Hastelloy Grade C22 Sheets & Plates Finishes
- Hastelloy C22 Sheets & Plates Thickness Chart
- ASTM B575 Hastelloy C-22 Sheets & Plates Weight Per Square Meter
Hastelloy Alloy C22 Shim Sheets, EN NiCr21Mo14W Polished Plates, C22 Hastelloy Polished Cold Drawn Plates, Werkstoff No 2.4602 Slatting Coils, Alloy C22 Circle Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Hastelloy C22 Sheets & Plates from Leading Manufacturer, Buy Alloy Grade C22 Sheets & Plates at Best Price in India.
Meanwhile, we also offer Hastalloy C22 Slatting Coils in different grades that meet the needs of the client. Our range of Hastalloy Alloy C22 Perforated Sheets is quality tested on different parameters before they are being delivered to our esteemed clients that are spread all over the world. These Hastalloy C22 Perforated Plates are used in an extensive range of applications which include food and beverage equipment, sanitary, cryogenic, and medical. Alloy C22 Perforated Coils stand for an exceptional grouping of corrosion resistance and easiness of fabrication for the reason that of a number of the important features.
Hastelloy C22 Sheets, Plates & Coils Specification
| C22 Sheets & Plates Specifications | ASTM B575 / ASME SB575, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| C22 Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Hastelloy C22 Sheets & Plates Size Range | Cold rolled ASME SB575 Grade C22 Hastelloy Sheet 0.5-6.4 mm Hot rolled ASME SB575 Grade C22 Hastelloy Sheet 3.0–10.0 mm |
| C22 Hastelloy Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Hastelloy C22 Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Hastelloy C22 Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Hastelloy C22 Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Hastelloy C22 Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SB575 C22 Hastelloy Strips EN 10088 SA -240-C22 Strips |
| Finish of Hastelloy C22 Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Hastelloy C22 Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
ASTM B575 C22 Hastelloy Alloy Sheets, Plates & Coils
| Products | Size | |
| ASTM B575 C22 Hastelloy Alloy Perforated Sheet | ASTM B575 C22 Hastelloy Alloy Plates | Sizes 3.0–10.0 mm |
| ASTM B575 C22 Hastelloy Alloy Sheet | ASTM B575 C22 Hastelloy Alloy Chequered Plate | |
| ASTM B575 C22 Hastelloy Alloy Metal Sheet | ASTM B575 C22 Hastelloy Alloy Polished Texture Sheet | |
| ASTM B575 C22 Hastelloy Alloy Cut to Size | ASTM B575 C22 Hastelloy Alloy Circle | |
| ASTM B575 C22 Hastelloy Alloy Discs | ASTM B575 C22 Hastelloy Alloy Blank | |
| ASTM B575 C22 Hastelloy Alloy Shims | ASTM B575 C22 Hastelloy Alloy Polished Plates | |
| ASTM B575 C22 Hastelloy Alloy Coils | ASTM B575 C22 Hastelloy Alloy Foils | |
| ASTM B575 C22 Hastelloy Alloy Hot Rolled Plates | ASTM B575 C22 Hastelloy Alloy Cold Rolled Plates | |
| ASTM B575 C22 Hastelloy Alloy Strips | ASTM B575 C22 Hastelloy Alloy Roof Sheets | |
ASTM B575 C22 Hastelloy Alloy Sheets & Plates Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | NiCr21Mo14W |
Grade C22 Hastelloy Alloy Sheets & Plates Chemical Composition
| Grade | C | Mn | Si | Co | P | Fe | Mo | Ni | Cr | S | W | V |
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 2.5 max | 0.02 max | 2 – 6 | 12.5 – 14.5 | Bal | 20 – 22.5 | 0.02 max | 2.5 – 3.5 | 0.35 max |
ASME SB575 Hastelloy C22 Sheets & Plates Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C-22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
ASME SB575 Hastelloy C-22 Sheets & Plates Types

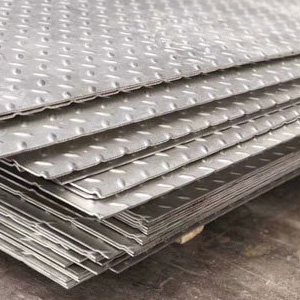

ASTM B575 Hastelloy C22 Chequered Plate
ASTM B575 Hastelloy C22 Plate
ASTM B575 Hastelloy C22 Perforated Sheets

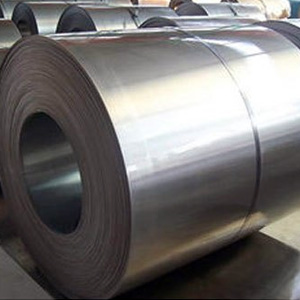

ASTM B575 Hastelloy C22 Coils

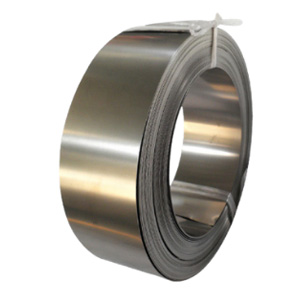

ASTM B575 Hastelloy C22 Strips & Foils

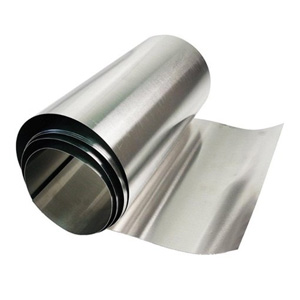

ASTM B575 Hastelloy C22 Shim Sheets

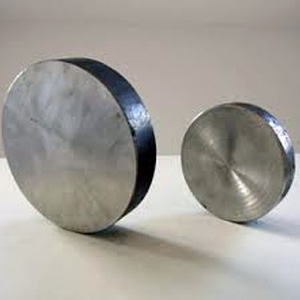

ASTM B575 Hastelloy C22 Blank/Circle Sheet

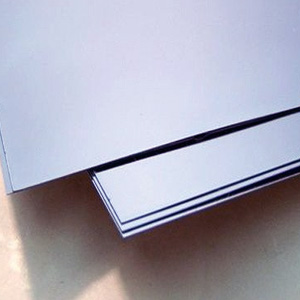

ASTM B575 Hastelloy C22 Polished Plates
Hastelloy C22 Sheets & Plates Manufacturing Standards
| Standard | Description |
| ASTM B575M | Chromium and chromium-nickel Hastelloy plate, sheet and strip for pressure vessels and general applications. |
| ASTM A263 | Corrosion resisting chromium steel clad plate, sheet and strip. |
| ASTM A264 | Hastelloy chromium-nickel steel clad plate, sheet and strip. |
| ASTM A666 | Austenitic Hastelloy sheet, strip, plate and flat bar for structural applications. |
| ASTM A693 | Specification for Precipitation-Hardening Hastelloy and Heat-Resisting Steel Plate, Sheet, and Strip |
| ASTM A480/A480M | General requirements for flat rolled Hastelloy and heat resisting steel plate, sheet and strip. |
| ASTM A793 | Specification for Rolled Floor Plate, Hastelloy |
| ASTM A895 | Specification for Free-Machining Hastelloy Plate, Sheet, and Strip |
| EN 10088-2 | Hastelloy – Part 2: Technical delivery conditions for sheet/plate and strip for general purposes. |
| AMS 5511 | Steel, Corrosion-Resistant, Sheet, Strip, and Plate, 19Cr – 9.5Ni (C22), Solution Heat Treated |
| AMS 5513 | Steel, Corrosion-Resistant, Sheet, Strip, and Plate, 19Cr – 9.2Ni (C22), Solution Heat Treated |
| AMS 5501 | Steel, Corrosion Resistant, Sheet, Strip, and Foil, 19Cr – 9.5Ni (C22), Cold Rolled, 125 ksi (862 MPa) Tensile Strength |
Other Types of Grade C22 Hastelloy Alloy Sheets & Plates in Stock
|
|
Hastelloy C22 Sheets & Plates Finishes
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Hastelloy C22 Sheets & Plates Thickness Chart
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
ASTM B575 Hastelloy C22 Sheets & Plates Weight Per Square Meter
| Size (mm) | Weight per Sheet (Kg) |
Size (mm) | Weight per Sheet (Kg) |
|---|---|---|---|
| 4000 x1000 x 0.7 | 11.5 | 2500 x 1250 x 1.5 | 38.4 |
| 2500 x1250 x 0.7 | 17.9 | 3000 x 1500 x 1.5 | 55.3 |
| 4000 x1000 x 0.9 | 14.7 | 4000 x 1000 x 2.0 | 32.7 |
| 2500 x1250 x 0.9 | 23.0 | 2500 x 1250 x 2.0 | 51.2 |
| 4000 x1000 x 1.0 | 16.4 | 3000 x 1500 x 2.0 | 73.7 |
| 2500 x1250 x 1.0 | 25.6 | 4000 x 1000 x 2.5 | 40.9 |
| 3000 x1500 x 1.0 | 36.8 | 2500 x 1250 x 2.5 | 63.9 |
| 4000 x1000 x 1.2 | 19.6 | 3000 x 1500 x 2.5 | 92.1 |
| 2500 x1250 x 1.2 | 30.7 | 4000 x 1000 x 3.0 | 49.6 |
| 3000 x1500 x 1.2 | 44.2 | 2500 x 1250 x 3.0 | 77.5 |
| 4000 x1000 x 1.5 | 24.6 | 3000 x 1500 x 3.0 | 112.0 |
Hastelloy C22 Sheets & Plates Imperial Dimensions
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
Hastelloy C22 Sheets & Plates Metric Dimensions
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
C22 Hastelloy Sheets & Plates Weight & Density
| Thickness | Alloy | Plate Weight per Unit Area | Density |
|---|---|---|---|
| 3/16 inches | Hastelloy C22 | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Hastelloy C22 | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Hastelloy C22 | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Hastelloy C22 | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Hastelloy C22 | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Hastelloy C22 | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Hastelloy C22 | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Hastelloy C22 | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Hastelloy C22 | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Hastelloy C22 | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Hastelloy C22 | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Hastelloy C22 | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Hastelloy C22 | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Hastelloy C22 | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Hastelloy C22 | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Hastelloy C22 | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
