400 Monel Polished Cold Drawn Plates, Monel UNS N04400 Plates, Nickel Alloy 400 Sheets, Monel JIS NW 4400 Plate Manufacturer in India.
Unifit Metalloys Inc is a known manufacturer and distributor of Monel Alloy 400 Sheets / Plates, which has standardized strength and structure across the pipe body. Monel 400 Sheets can be find in an extensive range of applications such as Oil & Gas, Chemical, Fertilizer, Refinery, Petrochemical, Power, Automotive, Bearing, Mechanical & Structural appliances. Monel 400 Plates are used to put off sewer gases from making an entrance into buildings. In refinery applications, these Monel 400 Coils as well prevent hydrocarbons and other hazardous gases from absconding outer surface through drains. Our Monel 400 Slatting Sheets combine exceptional physical characteristics by means of a noteworthy resistance to corrosive agents that are being found in automotive exhaust emanations.
Table of Contents
- Monel Alloy 400 Sheets & Plates Specification
- ASTM B127 400 Monel Alloy Sheets & Plates Equivalent Grades
- Grade 400 Monel Alloy Sheets & Plates Chemical Composition
- ASTM B127 Monel Alloy 400 Sheets & Plates Mechanical Properties
- Monel 400 Sheets & Plates Types
- Other Types of Grade 400 Monel Sheets & Plates in Stock
- Monel 400 Sheets & Plates Finishes
- Monel Alloy 400 Sheets & Plates Thickness Chart
- ASTM B127 Monel 400 Sheets & Plates Weight Per Square Meter
Monel DIN 2.4360 400 CR Sheets, Monel 400 #2 B Finish Sheets, ASTM B127 Alloy 400 CR Sheets, Alloy 400 Sheets, Monel 400 Shim Sheets, Monel UNS N04400 Sheets and Plates Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Monel Alloy 400 Sheets & Plates from Leading Manufacturer, Buy Monel 400 Sheets & Plates at Best Price in India.
Monel 400 Slatting Plates is made up from a hard round steel ‘billet’ that is being pushed or pulled and heated over a shape until the steel is wrought into a hollow tube. As a result, these Monel 400 Slatting Coils can survive higher temperature, higher pressure, corrosive atmosphere and higher mechanical stress. Monel 400 Perforated Sheets is being manufactured by rolling a metal and after that welding it longitudinally all over its length. There are lots of processes that may perhaps be used to make these Monel 400 Perforated Plates, where each of these processes leads to coalescence or joining of steel parts into pipes.
Monel Alloy 400 Sheets, Plates & Coils Specification
| Monel Alloy 400 Sheets & Plates Standard | ASTM B127/ ASME SB127 |
| Trade name | Monel Alloy 400 Sheets & Plates |
| 400 Alloy Sheets & Plates Dimensions | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Monel 400 Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 4000mm, 2500mm, 3000mm, 3500mm, etc |
| ASTM B127 400 Monel Alloy Sheets & Plates Length | 4000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| 400 Monel Sheets & Plates Thickness | 0.3 mm to 120 mm |
| Monel 400 Sheets & Plates Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Alloy 400 Sheets & Plates Surface Finishing | Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc. |
| Payment Terms | Paypal, Western Union, T/T (Telegraphic Transfer or Wire Transfer), L/C or Trade Assurance 30% deposit & balance before shipping |
| Free Sample | Yes if we have in stock |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| SB 162 Monel Alloy 400 Sheets & Plates Origin & Mills | Japanese, Indian, USA, Korean, European, Russian, Ukraine (Strictly No China) |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking |
|
| Outside Finish | Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Monel 400 Sheets & Plates | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
| Monel UNS N04400 Sheets & Plates Application & uses |
|
ASTM B127 400 Monel Alloy Sheets, Plates & Coils
| Products | Size | |
| ASTM B127 400 Monel Alloy Perforated Sheet | ASTM B127 400 Monel Alloy Plates | Sizes 3.0–10.0 mm |
| ASTM B127 400 Monel Alloy Sheet | ASTM B127 400 Monel Alloy Chequered Plate | |
| ASTM B127 400 Monel Alloy Metal Sheet | ASTM B127 400 Monel Alloy Polished Texture Sheet | |
| ASTM B127 400 Monel Alloy Cut to Size | ASTM B127 400 Monel Alloy Circle | |
| ASTM B127 400 Monel Alloy Discs | ASTM B127 400 Monel Alloy Blank | |
| ASTM B127 400 Monel Alloy Shims | ASTM B127 400 Monel Alloy Polished Plates | |
| ASTM B127 400 Monel Alloy Coils | ASTM B127 400 Monel Alloy Foils | |
| ASTM B127 400 Monel Alloy Hot Rolled Plates | ASTM B127 400 Monel Alloy Cold Rolled Plates | |
| ASTM B127 400 Monel Alloy Strips | ASTM B127 400 Monel Alloy Roof Sheets | |
ASTM B127 400 Monel Alloy Sheets & Plates Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Grade 400 Monel Alloy Sheets & Plates Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
ASME SB127 Monel Alloy 400 Sheets & Plates Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
Monel 400 Sheets & Plates Types

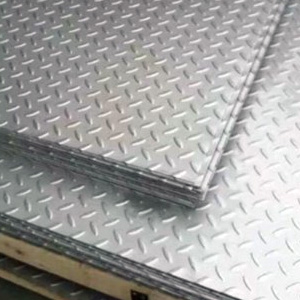

ASTM B127 Monel 400 Chequered Plate
ASTM B127 Monel 400 Plate
ASTM B127 Monel 400 Perforated Sheets
ASTM B127 Monel 400 Coils

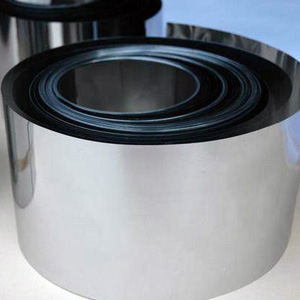

ASTM B127 Monel 400 Strips & Foils
ASTM B127 Monel 400 Shim Sheets

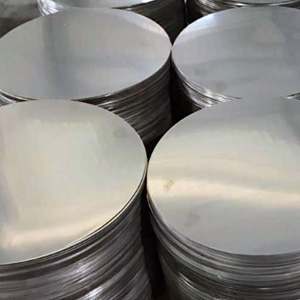

ASTM B127 Monel 400 Blank/Circle Sheet

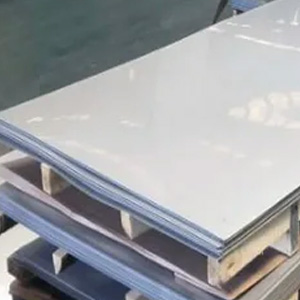

ASTM B127 Monel 400 Polished Plates
Monel Alloy 400 Sheets & Plates Manufacturing Standards
| Standard | Description |
| ASTM B127 | Chromium and chromium-nickel Monel plate, sheet and strip for pressure vessels and general applications. |
| ASTM A263 | Corrosion resisting chromium steel clad plate, sheet and strip. |
| ASTM A264 | Monel chromium-nickel steel clad plate, sheet and strip. |
| ASTM A666 | Austenitic Monel sheet, strip, plate and flat bar for structural applications. |
| ASTM A693 | Specification for Precipitation-Hardening Monel and Heat-Resisting Steel Plate, Sheet, and Strip |
| ASTM A480/A480M | General requirements for flat rolled Monel and heat resisting steel plate, sheet and strip. |
| ASTM A793 | Specification for Rolled Floor Plate, Monel |
| ASTM A895 | Specification for Free-Machining Monel Plate, Sheet, and Strip |
| EN 10088-2 | Monel – Part 2: Technical delivery conditions for sheet/plate and strip for general purposes. |
| AMS 5511 | Steel, Corrosion-Resistant, Sheet, Strip, and Plate, 19Cr – 9.5Ni (400/K500), Solution Heat Treated |
| AMS 5513 | Steel, Corrosion-Resistant, Sheet, Strip, and Plate, 19Cr – 9.2Ni (SAE 30400/30k500), Solution Heat Treated |
| AMS 5501 | Steel, Corrosion Resistant, Sheet, Strip, and Foil, 19Cr – 9.5Ni (400/K500), Cold Rolled, 125 ksi (862 MPa) Tensile Strength |
Other Types of Grade 400 Monel Alloy Sheets & Plates in Stock
|
|
Monel Alloy 400 Sheets & Plates Finishes
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Monel Alloy 400 Sheets & Plates Thickness Chart
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
ASTM B127 Monel Alloy 400 Sheets & Plates Weight Per Square Meter
| Size (mm) | Weight per Sheet (Kg) |
Size (mm) | Weight per Sheet (Kg) |
|---|---|---|---|
| 4000 x1000 x 0.7 | 11.5 | 2500 x 1250 x 1.5 | 38.4 |
| 2500 x1250 x 0.7 | 17.9 | 3000 x 1500 x 1.5 | 55.3 |
| 4000 x1000 x 0.9 | 14.7 | 4000 x 1000 x 2.0 | 32.7 |
| 2500 x1250 x 0.9 | 23.0 | 2500 x 1250 x 2.0 | 51.2 |
| 4000 x1000 x 1.0 | 16.4 | 3000 x 1500 x 2.0 | 73.7 |
| 2500 x1250 x 1.0 | 25.6 | 4000 x 1000 x 2.5 | 40.9 |
| 3000 x1500 x 1.0 | 36.8 | 2500 x 1250 x 2.5 | 63.9 |
| 4000 x1000 x 1.2 | 19.6 | 3000 x 1500 x 2.5 | 92.1 |
| 2500 x1250 x 1.2 | 30.7 | 4000 x 1000 x 3.0 | 49.6 |
| 3000 x1500 x 1.2 | 44.2 | 2500 x 1250 x 3.0 | 77.5 |
| 4000 x1000 x 1.5 | 24.6 | 3000 x 1500 x 3.0 | 112.0 |
NMonel Alloy 400 Sheets & Plates Imperial Dimensions
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
NMonel Alloy 400 Sheets & Plates Metric Dimensions
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
