ASTM B168 Incoloy 600 Shim Sheets, Inconel UNS N06600 Plates, 600 Inconel Polished Cold Drawn Plates, Inconel 600 Polished Cold Drawn Plate, Alloy 600 Sheets Manufacturer in India.
Unifit Metalloys Inc is a popular stockist and distributor of Inconel Alloy 600 Sheets / Plates, which has superior strength and corrosion resistance. Due to their high chromium and nickel content, Inconel 600 Sheets are highly corrosion resistant and have outstanding resistance to oxidation. Inconel 600 Plates offers excellent heat resistance while providing good strength at room and elevated temperatures. Inconel Alloy 600 Coils are used for various applications such as Baskets and trays, Boiler baffles, Burner parts, Fans, Fire box sheets, etc. Alloy 600 Slatting Sheets is also used in Furnace parts such as conveyor belts and rollers, Oven linings, Retorts, Refractory supports and more. Inconel 600 Slatting Plates contains the following primary elements: carbon, maximum manganese, maximum silicon, chromium, nickel, traces of sulfur and phosphorus, with the balance being iron.
Table of Contents
- Inconel Alloy 600 Sheets & Plates Specification
- ASTM B168 600 Inconel Alloy Sheets & Plates Equivalent Grades
- Grade 600 Inconel Alloy Sheets & Plates Chemical Composition
- ASTM B168 Inconel Alloy 600 Sheets & Plates Mechanical Properties
- Inconel 600 Sheets & Plates Types
- Other Types of Grade 600 Inconel Sheets & Plates in Stock
- Inconel 600 Sheets & Plates Finishes
- Inconel Alloy 600 Sheets & Plates Thickness Chart
- ASTM B168 Inconel 600 Sheets & Plates Weight Per Square Meter
Grade 600 Inconel Mill Finish Plates, Nickel Alloy 600 Chequered Plates, ASME SB168 Alloy 600 Sheets, DIN 2.4816 Polished Cold Drawn Plate, Inconel 600 Shim Sheets Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Inconel Alloy 600 Sheets & Plates from Leading Manufacturer, Buy Inconel 600 Sheets & Plates at Best Price in India.
Inconel 600 Slatting Coils is superior in most environments due to its relatively high chromium and nickel content. Inconel 600 Perforated Sheets exhibits a combination of good strength and corrosion resistance in temperatures up to 2100° F. Meanwhile, cold working in Inconel 600 Perforated Plates will cause increase in hardness and strength, and it does not respond to heat treatment. Inconel 600 Perforated Coils has many of the same mechanical properties; however this grade is an extra low-carbon variation. Inconel UNS N06600 Sheets Plates has maximum carbon content which helps to remove the carbide precipitation that occurs during the welding process.
Inconel Alloy 600 Sheets, Plates & Coils Specification
| Inconel Alloy 600 Sheets & Plates Standard | ASTM B168/ ASME SB168 |
| Trade name | Inconel Alloy 600 Sheets & Plates |
| 600 Alloy Sheets & Plates Dimensions | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Inconel 600 Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 4000mm, 2500mm, 3000mm, 3500mm, etc |
| ASTM B168 600 Inconel Alloy Sheets & Plates Length | 4000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| 600 Inconel Sheets & Plates Thickness | 0.3 mm to 120 mm |
| Inconel 600 Sheets & Plates Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Alloy 600 Sheets & Plates Surface Finishing | Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc. |
| Payment Terms | Paypal, Western Union, T/T (Telegraphic Transfer or Wire Transfer), L/C or Trade Assurance 30% deposit & balance before shipping |
| Free Sample | Yes if we have in stock |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| SB168 Inconel Alloy 600 Sheets & Plates Origin & Mills | Japanese, Indian, USA, Korean, European, Russian, Ukraine (Strictly No China) |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking |
|
| Outside Finish | Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Inconel 600 Sheets & Plates | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
| Inconel UNS N06600 Sheets & Plates Application & uses |
|
ASTM B168 600 Inconel Alloy Sheets, Plates & Coils
| Products | Size | |
| ASTM B168 600 Inconel Alloy Perforated Sheet | ASTM B168 600 Inconel Alloy Plates | Sizes 3.0–10.0 mm |
| ASTM B168 600 Inconel Alloy Sheet | ASTM B168 600 Inconel Alloy Chequered Plate | |
| ASTM B168 600 Inconel Alloy Metal Sheet | ASTM B168 600 Inconel Alloy Polished Texture Sheet | |
| ASTM B168 600 Inconel Alloy Cut to Size | ASTM B168 600 Inconel Alloy Circle | |
| ASTM B168 600 Inconel Alloy Discs | ASTM B168 600 Inconel Alloy Blank | |
| ASTM B168 600 Inconel Alloy Shims | ASTM B168 600 Inconel Alloy Polished Plates | |
| ASTM B168 600 Inconel Alloy Coils | ASTM B168 600 Inconel Alloy Foils | |
| ASTM B168 600 Inconel Alloy Hot Rolled Plates | ASTM B168 600 Inconel Alloy Cold Rolled Plates | |
| ASTM B168 600 Inconel Alloy Strips | ASTM B168 600 Inconel Alloy Roof Sheets | |
ASTM B168 600 Inconel Alloy Sheets & Plates Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Grade 600 Inconel Alloy Sheets & Plates Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
ASME SB168 Inconel Alloy 600 Sheets & Plates Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Inconel 600 Sheets & Plates Types

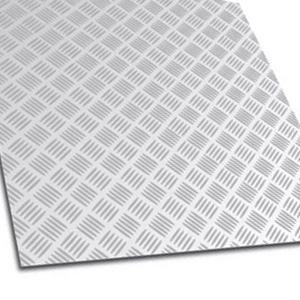

ASTM B168 Inconel 600 Chequered Plate

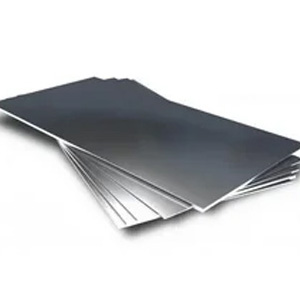

ASTM B168 Inconel 600 Plate

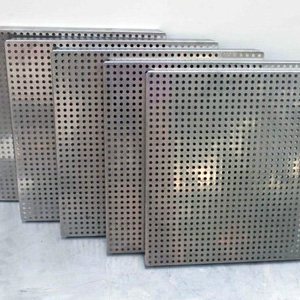

ASTM B168 Inconel 600 Perforated Sheets
ASTM B168 Inconel 600 Coils

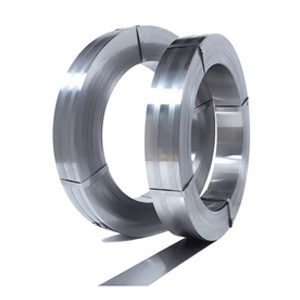

ASTM B168 Inconel 600 Strips & Foils

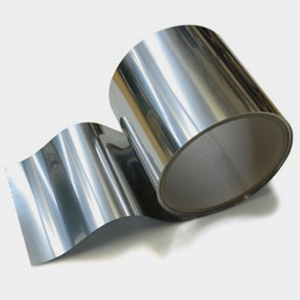

ASTM B168 Inconel 600 Shim Sheets

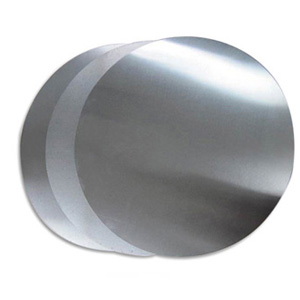

ASTM B168 Inconel 600 Blank/Circle Sheet

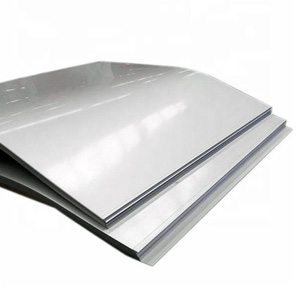

ASTM B168 Inconel 600 Polished Plates
Inconel Alloy 600 Sheets & Plates Manufacturing Standards
| Standard | Description |
| ASTM B168M | Chromium and chromium-nickel Inconel plate, sheet and strip for pressure vessels and general applications. |
| ASTM A263 | Corrosion resisting chromium steel clad plate, sheet and strip. |
| ASTM A264 | Inconel chromium-nickel steel clad plate, sheet and strip. |
| ASTM A666 | Austenitic Inconel sheet, strip, plate and flat bar for structural applications. |
| ASTM A693 | Specification for Precipitation-Hardening Inconel and Heat-Resisting Steel Plate, Sheet, and Strip |
| ASTM A480/A480M | General requirements for flat rolled Inconel and heat resisting steel plate, sheet and strip. |
| ASTM A793 | Specification for Rolled Floor Plate, Inconel |
| ASTM A895 | Specification for Free-Machining Inconel Plate, Sheet, and Strip |
| EN 10088-2 | Inconel – Part 2: Technical delivery conditions for sheet/plate and strip for general purposes. |
| AMS 5511 | Steel, Corrosion-Resistant, Sheet, Strip, and Plate, 19Cr – 9.5Ni (600), Solution Heat Treated |
| AMS 5513 | Steel, Corrosion-Resistant, Sheet, Strip, and Plate, 19Cr – 9.2Ni (SAE 30600), Solution Heat Treated |
| AMS 5501 | Steel, Corrosion Resistant, Sheet, Strip, and Foil, 19Cr – 9.5Ni (600), Cold Rolled, 125 ksi (862 MPa) Tensile Strength |
Other Types of Grade 600 Inconel Alloy Sheets & Plates in Stock
|
|
Inconel Alloy 600 Sheets & Plates Finishes
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Inconel Alloy 600 Sheets & Plates Thickness Chart
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
ASTM B168 Inconel Alloy 600 Sheets & Plates Weight Per Square Meter
| Size (mm) | Weight per Sheet (Kg) |
Size (mm) | Weight per Sheet (Kg) |
|---|---|---|---|
| 4000 x1000 x 0.7 | 11.5 | 2500 x 1250 x 1.5 | 38.4 |
| 2500 x1250 x 0.7 | 17.9 | 3000 x 1500 x 1.5 | 55.3 |
| 4000 x1000 x 0.9 | 14.7 | 4000 x 1000 x 2.0 | 32.7 |
| 2500 x1250 x 0.9 | 23.0 | 2500 x 1250 x 2.0 | 51.2 |
| 4000 x1000 x 1.0 | 16.4 | 3000 x 1500 x 2.0 | 73.7 |
| 2500 x1250 x 1.0 | 25.6 | 4000 x 1000 x 2.5 | 40.9 |
| 3000 x1500 x 1.0 | 36.8 | 2500 x 1250 x 2.5 | 63.9 |
| 4000 x1000 x 1.2 | 19.6 | 3000 x 1500 x 2.5 | 92.1 |
| 2500 x1250 x 1.2 | 30.7 | 4000 x 1000 x 3.0 | 49.6 |
| 3000 x1500 x 1.2 | 44.2 | 2500 x 1250 x 3.0 | 77.5 |
| 4000 x1000 x 1.5 | 24.6 | 3000 x 1500 x 3.0 | 112.0 |
NInconel Alloy 600 Sheets & Plates Imperial Dimensions
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
NInconel Alloy 600 Sheets & Plates Metric Dimensions
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
