Nickel UNS N02200 Plates, 200 Nickel Alloy Sheets, Nickel JIS NW 2201 Plates, Nickel 200 Cold Rolled Plates, 201 Nickel Polished Cold Drawn Plates Manufacturer in India.
Jade Special Metals is a known manufacturer and trader of Nickel Alloy 200 / 201 Sheets / Plates, which are being formed by rolling plate and welding the seam. We do our best to provide a noteworthy quality of Nickel 200 Sheets to our valuable customers. We have a list of satisfied and happy clients because of our Nickel 201 Plates that are made up by using high graded steel with best quality and other raw materials. Nickel 200 Coils offers outcome properties like corrosion resistance, abrasion resistance, accurate dimensions and durable in nature. Our Nickel 201 Slatting Sheets are being processed in the course of different types of forming processes such as slotting, cutting, machining, punching, drilling, knurling, and so on, which are further available in an extensive range of grades and sizes.
Table of Contents
- Nickel Alloy 200/201 Sheets & Plates Specification
- ASTM B162 200/201 Nickel Alloy Sheets & Plates Equivalent Grades
- Grade 200/201 Nickel Alloy Sheets & Plates Chemical Composition
- ASTM B162 Nickel Alloy 200/201 Sheets & Plates Mechanical Properties
- Nickel 200/201 Sheets & Plates Types
- Other Types of Grade 200/201 Nickel Sheets & Plates in Stock
- Nickel 200/201 Sheets & Plates Finishes
- Nickel Alloy 200/201 Sheets & Plates Thickness Chart
- ASTM B162 Nickel 200/201 Sheets & Plates Weight Per Square Meter
Nickel DIN 2.4068 Polished Cold Drawn Plate, Alloy 200 Sheets, 201 Nickel Shim Sheets, Nickel Alloy 201 BA Finish Sheets Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Nickel Alloy 200/201 Sheets & Plates from Leading Manufacturer, Buy Nickel 200/201 Sheets & Plates at Best Price in India.
Our smooth manufacturing process, totally equipped rationalized plant, superiority steel raw material and panel of expert offer accurate and high quality of Nickel 200 Slatting Plates. Primarily used for different types of automotive appliances, these Nickel 201 Perforated Sheets show a selection of best-in-class feature. These Nickel 200 Perforated Plates are being offered with excellent quality, elevated strength, sturdiness, corrosion resistance and elevated strength that increase our reputation as top notched black bar exporter. Nickel 201 Perforated Coils are time and again have tighter dimensional forbearances than seamless, and can be cheaper if manufactured in the same quantities.
Nickel Alloy 200/201 Sheets, Plates & Coils Specification
| Nickel Alloy 200/201 Sheets & Plates Standard | ASTM B162/ ASME SB162 |
| Trade name | Nickel Alloy 200/201 Sheets & Plates |
| 200/201 Alloy Sheets & Plates Dimensions | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Nickel 200/201 Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| ASTM B162 200/201 Nickel Alloy Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| 200 Nickel Sheets & Plates Thickness | 0.3 mm to 120 mm |
| Nickel 200/201 Sheets & Plates Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Alloy 200/201 Sheets & Plates Surface Finishing | Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc. |
| Payment Terms | Paypal, Western Union, T/T (Telegraphic Transfer or Wire Transfer), L/C or Trade Assurance 30% deposit & balance before shipping |
| Free Sample | Yes if we have in stock |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| SB 162 Nickel Alloy 200/201 Sheets & Plates Origin & Mills | Japanese, Indian, USA, Korean, European, Russian, Ukraine (Strictly No China) |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking |
|
| Outside Finish | Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Nickel 200/201 Sheets & Plates | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
| Nickel UNS N02200, N02201 Sheets & Plates Application & uses |
|
ASTM B162 200/201 Nickel Alloy Sheets, Plates & Coils
| Products | Size | |
| ASTM B162 200/201 Nickel Alloy Perforated Sheet | ASTM B162 200/201 Nickel Alloy Plates | Sizes 3.0–10.0 mm |
| ASTM B162 200/201 Nickel Alloy Sheet | ASTM B162 200/201 Nickel Alloy Chequered Plate | |
| ASTM B162 200/201 Nickel Alloy Metal Sheet | ASTM B162 200/201 Nickel Alloy Polished Texture Sheet | |
| ASTM B162 200/201 Nickel Alloy Cut to Size | ASTM B162 200/201 Nickel Alloy Circle | |
| ASTM B162 200/201 Nickel Alloy Discs | ASTM B162 200/201 Nickel Alloy Blank | |
| ASTM B162 200/201 Nickel Alloy Shims | ASTM B162 200/201 Nickel Alloy Polished Plates | |
| ASTM B162 200/201 Nickel Alloy Coils | ASTM B162 200/201 Nickel Alloy Foils | |
| ASTM B162 200/201 Nickel Alloy Hot Rolled Plates | ASTM B162 200/201 Nickel Alloy Cold Rolled Plates | |
| ASTM B162 200/201 Nickel Alloy Strips | ASTM B162 200/201 Nickel Alloy Roof Sheets | |
ASTM B162 200/201 Nickel Alloy Sheets & Plates Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
Grade 200/201 Nickel Alloy Sheets & Plates Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
ASME SB162 Nickel Alloy 200/201 Sheets & Plates Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 200/201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Nickel 200/201 Sheets & Plates Types

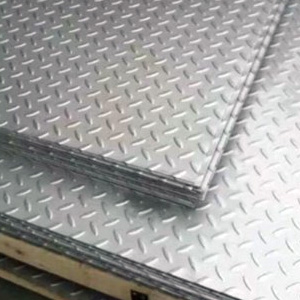

ASTM B162 Nickel 200/201 Chequered Plate

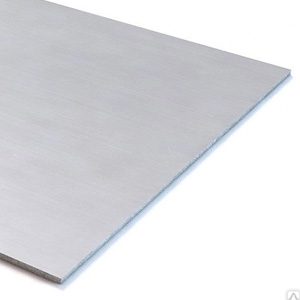

ASTM B162 Nickel 200/201 Plate
ASTM B162 Nickel 200/201 Perforated Sheets
ASTM B162 Nickel 200/201 Coils

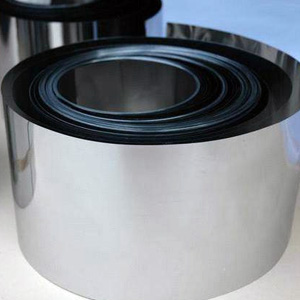

ASTM B162 Nickel 200/201 Strips & Foils

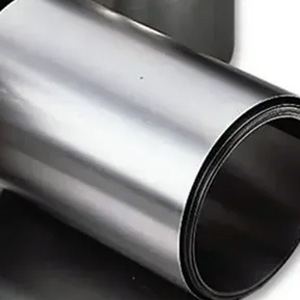

ASTM B162 Nickel 200/201 Shim Sheets

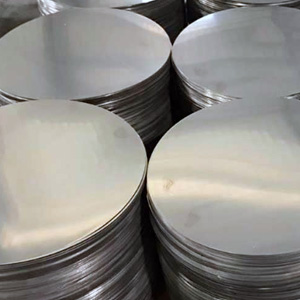

ASTM B162 Nickel 200/201 Blank/Circle Sheet

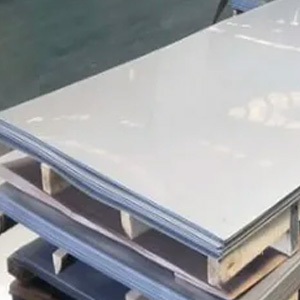

ASTM B162 Nickel 200/201 Polished Plates
Nickel Alloy 200/201 Sheets & Plates Manufacturing Standards
| Standard | Description |
| ASTM B162 | Chromium and chromium-nickel Monel plate, sheet and strip for pressure vessels and general applications. |
| ASTM A263 | Corrosion resisting chromium steel clad plate, sheet and strip. |
| ASTM A264 | Monel chromium-nickel steel clad plate, sheet and strip. |
| ASTM A666 | Austenitic Monel sheet, strip, plate and flat bar for structural applications. |
| ASTM A693 | Specification for Precipitation-Hardening Monel and Heat-Resisting Steel Plate, Sheet, and Strip |
| ASTM A480/A480M | General requirements for flat rolled Monel and heat resisting steel plate, sheet and strip. |
| ASTM A793 | Specification for Rolled Floor Plate, Monel |
| ASTM A895 | Specification for Free-Machining Monel Plate, Sheet, and Strip |
| EN 10088-2 | Monel – Part 2: Technical delivery conditions for sheet/plate and strip for general purposes. |
| AMS 5511 | Steel, Corrosion-Resistant, Sheet, Strip, and Plate, 19Cr – 9.5Ni (400/K500), Solution Heat Treated |
| AMS 5513 | Steel, Corrosion-Resistant, Sheet, Strip, and Plate, 19Cr – 9.2Ni (SAE 30400/30k500), Solution Heat Treated |
| AMS 5501 | Steel, Corrosion Resistant, Sheet, Strip, and Foil, 19Cr – 9.5Ni (400/K500), Cold Rolled, 125 ksi (862 MPa) Tensile Strength |
Other Types of Grade 200/201 Nickel Alloy Sheets & Plates in Stock
|
|
Nickel Alloy 200/201 Sheets & Plates Finishes
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Nickel Alloy 200/201 Sheets & Plates Thickness Chart
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
ASTM B162 Nickel Alloy 200/201 Sheets & Plates Weight Per Square Meter
| Size (mm) | Weight per Sheet (Kg) |
Size (mm) | Weight per Sheet (Kg) |
|---|---|---|---|
| 2000 x1000 x 0.7 | 11.5 | 2500 x 1250 x 1.5 | 38.4 |
| 2500 x1250 x 0.7 | 17.9 | 3000 x 1500 x 1.5 | 55.3 |
| 2000 x1000 x 0.9 | 14.7 | 2000 x 1000 x 2.0 | 32.7 |
| 2500 x1250 x 0.9 | 23.0 | 2500 x 1250 x 2.0 | 51.2 |
| 2000 x1000 x 1.0 | 16.4 | 3000 x 1500 x 2.0 | 73.7 |
| 2500 x1250 x 1.0 | 25.6 | 2000 x 1000 x 2.5 | 40.9 |
| 3000 x1500 x 1.0 | 36.8 | 2500 x 1250 x 2.5 | 63.9 |
| 2000 x1000 x 1.2 | 19.6 | 3000 x 1500 x 2.5 | 92.1 |
| 2500 x1250 x 1.2 | 30.7 | 2000 x 1000 x 3.0 | 49.6 |
| 3000 x1500 x 1.2 | 44.2 | 2500 x 1250 x 3.0 | 77.5 |
| 2000 x1000 x 1.5 | 24.6 | 3000 x 1500 x 3.0 | 112.0 |
NNickel Alloy 200/201 Sheets & Plates Imperial Dimensions
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
NNickel Alloy 200/201 Sheets & Plates Metric Dimensions
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
