Alloy 20 Elbolet, UNS N08020 Welding Outlet, Alloy 20 Branch Connection, ASTM B366 Carpenter 20 Threadolets, Carpenter 20Cb-3® Latrolets Manufacturer in India.
Unifit Metalloys Inc is a popular stockist and distributor of Alloy 20 Outlets, which is being offered at very reasonable price to our customers. Meanwhile, the adding up of Titanium stabilizes Alloy 20 Welding Outlets in opposition to the configuration of Chromium Carbide in heat that ranges between 800 degrees Fahrenheit to 1500 degrees Fahrenheit. Titanium preferentially counters in the company of carbon in Alloy 20 Threading Outlets and averts precipitation of chromium carbides at the grain limits. Alloy 20 Flexible Outlets maintains corrosion-resistant characteristics by thwarting reduction of chromium near the grain confines during revelation within significant temperature range. Alloy 20 Nipple Outlets have some great features like it reacts well to hardening by cold working, and have excellent welding characteristics.
Table of Contents
- Alloy 20 Olets Fittings Specification
- ASTM B366 Alloy 20 Olets Fittings Equivalent Grades
- Carpenter 20 Olets Fittings Chemical Composition
- ASME SB366 Alloy 20 Olets Fittings Mechanical Properties
- Alloy 20 Olets Fittings Types
- Other Types of Carpenter 20Cb-3® Olets Fittings in Stock
- ASTM B366 Alloy 20 Olets Fittings Dimensions
EN NiCr20CuMo Threadolets, Carpenter 20Cb-3® Coupolet, Alloy 20 Lateral Outlets, ASME SB366 Alloy 20 Welding Outlet, WERKSTOFF NR. 2.4660 Outlets Fittings Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Alloy 20 Olets Fittings from Leading Manufacturer, Buy Carpenter 20 Olets Fittings at Best Price in India.
Alloy 20 Socket Weld Outlets have good corrosion resistance in a wide variety of corrosive media, and also have High creep and stress rupture properties, etc. Alloy 20 Sweepolet are being used for various applications such as in Aircraft exhaust stacks, Chemical processing equipment, Manifolds, Welded equipment, etc. Alloy 20 Coupolet offers Heat exchangers, Jet engine parts, Aircraft industry, Refinery industry equipment Oil refineries, High temperature chemical process equipment, Fabrication industry, and more. Alloy 20 Brazolet is a far and wide used as stainless steel, where its components are being heated within carbide-precipitation temperature range of 800 degrees Fahrenheit to 1500 degrees Fahrenheit, and is also exposed to corrosive environment.
Alloy 20 Olets Fittings Specification
| Outlet Fittings Standard | ASTM B366 / ASME SB366 |
|---|---|
| Outlet Fittings Dimensions | ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc |
| Outlet Fittings Size | 1/8″-4″ (DN6-DN100) |
| Outlet Fittings Connect Type | Welded, threaded, BW, SW |
| Outlet Pipe Diameter | DN15 ~ DN40 |
| Outlet Fittings Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Outlet Process | Free forging, plate cutting, forged |
| Origin of Outlet | Indian Origin, European Origin, Japanese Origin |
| Outlet Fittings Packing | Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests |
| Test Certificates | Mill Test Certificates Alloy 20 Outlet Fittings Chemical Reports EN 10204 3.1 Mechanical Reports, Destructive Test Report Non Destructive Test Reports Alloy 20 Outlet Fittings PMI Test Reports Alloy 20 Outlet Fittings Visual Inspection Reports NABL Approved Lab Reports |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B366 Alloy 20 Olets Fittings
| Products | Size | |
| ASTM B366 Alloy 20 Weldolet | ASTM B366 Alloy 20 Sockolet | Sizes: 1/8″-4″ (DN6-DN100) |
| ASTM B366 Alloy 20 Elbolet | ASTM B366 Alloy 20 Threadolet | |
| ASTM B366 Alloy 20 Latrolets | ASTM B366 Alloy 20 Nippolet | |
| ASTM B366 Alloy 20 Sweepolet | ASTM B366 Alloy 20 Brazolet | |
| ASTM B366 Alloy 20 Flexolet | ASTM B366 Alloy 20 Branch Outlets | |
| ASTM B366 Alloy 20 Threading Outlet | ASTM B366 Alloy 20 Socket Weld Outlet | |
ASTM B366 Alloy 20 Olets Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Alloy Gr. 20 Olets Fittings Chemical Composition
| Element | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
ASTM B366 Alloy 20 Olets Fittings Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.1 g/cm3 | 1443 °C (2430 °F) | Psi - 35,000, MPa - 241 | Psi -80,000, MPa -551 | 30 % |
Alloy Grade 20 Olets Fittings Types
ASTM B366 Alloy 20 Threadolet

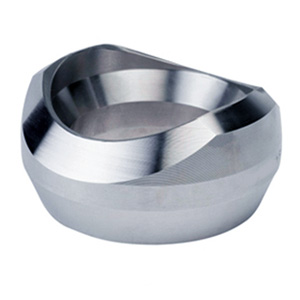

ASTM B366 Alloy 20 Weldolet

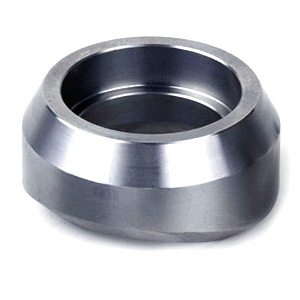

ASTM B366 Alloy 20 Sockolet

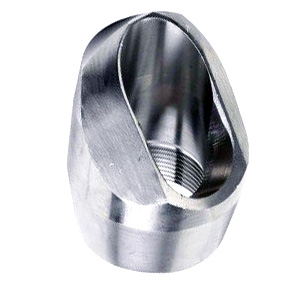

ASTM B366 Alloy 20 Elbolet

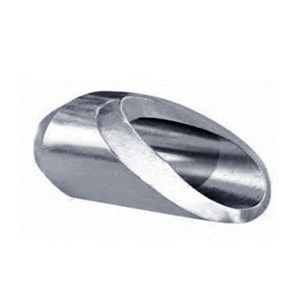

ASTM B366 Alloy 20 Latrolets

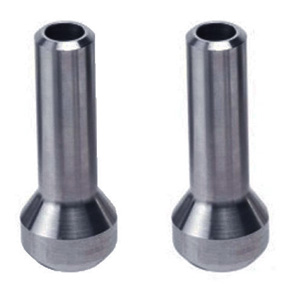

ASTM B366 Alloy 20 Nippolet

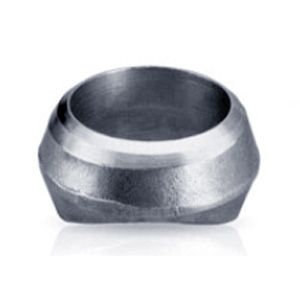

ASTM B366 Alloy 20 Flexolet

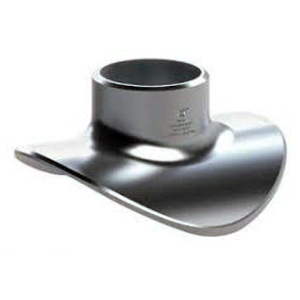

ASTM B366 Alloy 20 Sweepolet

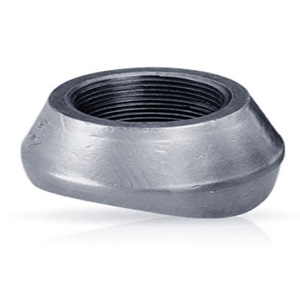

ASTM B366 Alloy 20 Brazolet

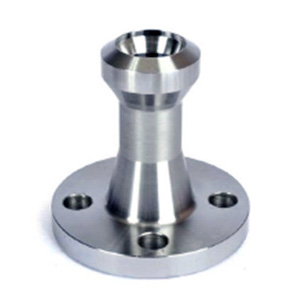

ASTM B366 Alloy 20 Flangeolet

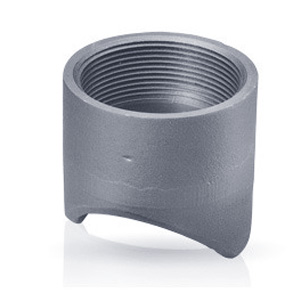

ASTM B366 Alloy 20 Coupolet
Other Types of Grade Carpenter 20 Olets Fittings in Stock
|
|
Alloy 20 Olet Fittings Dimension
| Sockolet Dimensions | ||||||
|---|---|---|---|---|---|---|
| Outlet Size (NPT) | A | B | C | D | E | Approx. Weight (lb) |
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 |
| ELBOLET DIMENSIONS | |||||
| Nominal Size of Elbow (NPS) | Outlet Size (NPS) | CL 3000 Threaded and Socket WeldSch. Standard and XS Buttweld | CL 6000 Threaded and Socket Weld Sch. 160 and XXS Buttweld | ||
|---|---|---|---|---|---|
| C | E | C | E | ||
| 36 – 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 – 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 – 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 – 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 – 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 – 3 | 2 | 4 3/16 | 3 1/4 | – | – |
| Order to Specific Elbow Sizes |
|||||
| *2 1/2 | 4 3/16 | 3 1/4 | bw only | bw only | |
| *3 | 5 1/16 | 3 7/8 | bw only | bw only | |
| *4 | 6 5/8 | 4 13/16 | bw only | bw only | |
| *6 | 9 3/8 | 6 1/2 | bw only | bw only | |
| *8 | 13 5/16 | 8 1/16 | bw only | bw only | |
| *10 | 17 1/32 | 10 3/8 | bw only | bw only | |
| *12 | 19 5/8 | 11 1/8 | bw only | bw only | |
Alloy 20 Olet Fittings Standard
| Standard | Description |
| ASTM B366 | Standard Specification for Alloy 20 Outlet Fittings |
| ANSI ASME B16.11 | Socket-welding and Threaded Outlet fittings |
| MSS SP 79 | Standard Specification for Alloy 20 Insert Welding Outlet |
| MSS SP-97 | SW,TH and BW ends for integrally reinforced forged branch outlet |
| JIS B2316 | socket-welding outlets pipe fittings |
