ASTM B366 C22 Hastelloy Threadolets, Alloy C22 Branch Connection, Hastelloy Alloy C22 Weldolet, DIN 2.4602 Olets Fittings, EN NiCr21Mo14W Brazolet Manufacturer in India.
Unifit Metalloys Inc is a popular trader and manufacturer of Hastelloy Alloy C22 Outlets, which are more resistant to thermal shocks than elevated temperature austenitic steels. The superior Hastelloy Alloy C22 Welding Outlets are applied at temperatures for up to 1150 Deg Celsius and exhibit good resistance in opposition to tumbling sulphur attacks and molten metals. Due to their ferritic configuration, these Hastelloy C22 Threading Outlets exhibit lower potency at temperatures that exceeds from 600 Deg Celsius. C22 Hastelloy Socket Weld Outlets offers by means of the thermal conductivity superior and the thermal expansion inferior than the particular values for austenitic steels. Alike thermal shocks, Hastelloy C22 Flexible Outlets will outcome in subordinate thermal stresses in the ferritic material. In these idioms, Hastelloy C22 Nipple Outlets permit better acceptances for operation and design.
Table of Contents
- Hastelloy Alloy C22 Olets Fittings Specification
- ASTM B366 C22 Hastelloy Alloy Olets Fittings Equivalent Grades
- Grade C-22 Alloy Olets Fittings Chemical Composition
- ASME SB366 Hastelloy Alloy C22 Olets Fittings Mechanical Properties
- Hastelloy C22 Olets Fittings Types
- Other Types of Grade C22 Hastelloy Olets Fittings in Stock
- ASTM B366 Hastelloy C22 Olets Fittings Dimensions
Hastelloy Alloy C22 Insert Weldolet, Hastelloy® Alloy C22 Coupolet, C22 Hastelloy Socket Weld Olets, UNS N06022 Nipple Outlet Fittings, Alloy C-22 Lateral Outlets Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Hastelloy Alloy C22 Olets Fittings from Leading Manufacturer, Buy Hastelloy C22 Olets Fittings at Best Price in India.
At room temperature, these Plates have mechanical characteristics equal to their austenitic foils. When subjected to elevated temperatures, which are less than 600 Deg Celsius, the creep potency in Hastelloy C22 Sweepolet drops probably to merely a quarter of the worth austenitic heat resistant steels illustrate at the similar conditions. Hastelloy C22 Brazolet is a truly stainless elevated temperature grade in the company of 13 percent chromium, and is not significant in terms of embrittlement. Hastelloy C22 Coupolet are being sourced by using high quality of raw material and makes sure to provide durability of highest quality of industry standard products.
Hastelloy Alloy C22 Olets Fittings Specification
| Outlet Fittings Standard | ASTM B366 / ASME SB366 |
|---|---|
| Outlet Fittings Dimensions | ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc |
| Outlet Fittings Size | 1/8″-4″ (DN6-DN100) |
| Outlet Fittings Connect Type | Welded, threaded, BW, SW |
| Outlet Pipe Diameter | DN15 ~ DN40 |
| Outlet Fittings Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Outlet Process | Free forging, plate cutting, forged |
| Origin of Outlet | Indian Origin, European Origin, Japanese Origin |
| Outlet Fittings Packing | Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests |
| Test Certificates | Mill Test Certificates Hastelloy C22 Outlet Fittings Chemical Reports EN 10204 3.1 Mechanical Reports, Destructive Test Report Non Destructive Test Reports Hastelloy C22 Outlet Fittings PMI Test Reports Hastelloy C22 Outlet Fittings Visual Inspection Reports NABL Approved Lab Reports |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B366 C22 Hastelloy Alloy Olets Fittings
| Products | Size | |
| ASTM B366 Hastelloy Alloy C22 Weldolet | ASTM B366 Hastelloy Alloy C22 Sockolet | Sizes: 1/8″-4″ (DN6-DN100) |
| ASTM B366 Hastelloy Alloy C22 Elbolet | ASTM B366 Hastelloy Alloy C22 Threadolet | |
| ASTM B366 Hastelloy Alloy C22 Latrolets | ASTM B366 Hastelloy Alloy C22 Nippolet | |
| ASTM B366 Hastelloy Alloy C22 Sweepolet | ASTM B366 Hastelloy Alloy C22 Brazolet | |
| ASTM B366 Hastelloy Alloy C22 Flexolet | ASTM B366 Hastelloy Alloy C22 Branch Outlets | |
| ASTM B366 Hastelloy Alloy C22 Threading Outlet | ASTM B366 Hastelloy Alloy C22 Socket Weld Outlet | |
ASTM B366 C22 Hastelloy Alloy Olets Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | AFNOR | GOST | OR | EN |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | - | - | - | - | NiCr21Mo14W |
Grade C22 Hastelloy Olets Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Co | Ni | Cr | Mo |
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 0.02 max | 2.50 max | 50.015 min* | 20– 22.5 | 12.5– 14.5 |
ASTM B366 Hastelloy Alloy C22 Olets Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Hastelloy C22 Olets Fittings Types

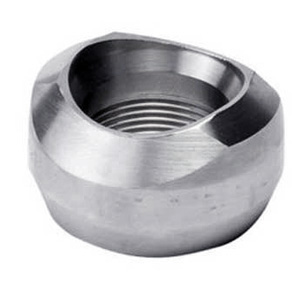

Hastelloy Alloy C22 Threadolet

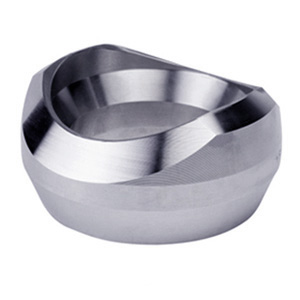

Hastelloy Alloy C22 Weldolet

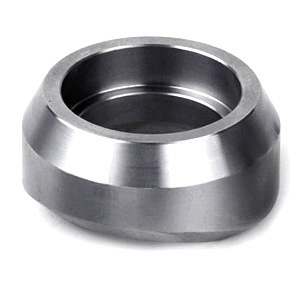

Hastelloy Alloy C22 Sockolet

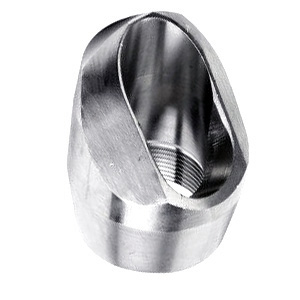

Hastelloy Alloy C22 Elbolet
Hastelloy Alloy C22 Latrolets

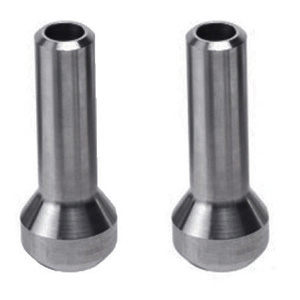

Hastelloy Alloy C22 Nippolet
Hastelloy Alloy C22 Flexolet

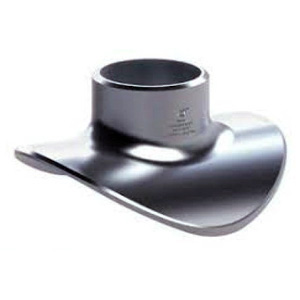

Hastelloy Alloy C22 Sweepolet

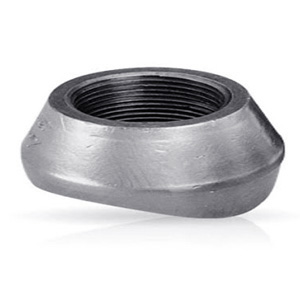

Hastelloy Alloy C22 Brazolet

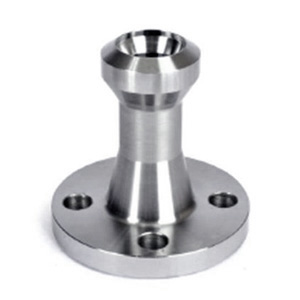

Hastelloy Alloy C22 Flangeolet

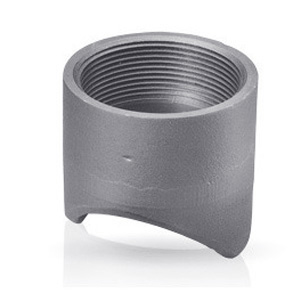

Hastelloy Alloy C22 Coupolet
Other Types of Grade C-22 Hastelloy Olets Fittings in Stock
|
|
Hastelloy Alloy C22 Olet Fittings Dimension
| Sockolet Dimensions | ||||||
|---|---|---|---|---|---|---|
| Outlet Size (NPT) | A | B | C | D | E | Approx. Weight (lb) |
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 |
| ELBOLET DIMENSIONS | |||||
| Nominal Size of Elbow (NPS) | Outlet Size (NPS) | CL 3000 Threaded and Socket WeldSch. Standard and XS Buttweld | CL 6000 Threaded and Socket Weld Sch. 160 and XXS Buttweld | ||
|---|---|---|---|---|---|
| C | E | C | E | ||
| 36 – 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 – 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 – 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 – 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 – 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 – 3 | 2 | 4 3/16 | 3 1/4 | – | – |
| Order to Specific Elbow Sizes |
|||||
| *2 1/2 | 4 3/16 | 3 1/4 | bw only | bw only | |
| *3 | 5 1/16 | 3 7/8 | bw only | bw only | |
| *4 | 6 5/8 | 4 13/16 | bw only | bw only | |
| *6 | 9 3/8 | 6 1/2 | bw only | bw only | |
| *8 | 13 5/16 | 8 1/16 | bw only | bw only | |
| *10 | 17 1/32 | 10 3/8 | bw only | bw only | |
| *12 | 19 5/8 | 11 1/8 | bw only | bw only | |
Hastelloy Alloy C22 Olet Fittings Standard
| Standard | Description |
| ASTM B366 | Standard Specification for Hastelloy Alloy C22Outlet Fittings |
| ANSI ASME B16.11 | Socket-welding and Threaded Outlet fittings |
| MSS SP 79 | Standard Specification for Hastelloy Alloy C22 Insert Welding Outlet |
| MSS SP-97 | SW,TH and BW ends for integrally reinforced forged branch outlet |
| JIS B2316 | socket-welding outlets pipe fittings |
