Stainless Steel DIN 1.4301 Nipple Outlets, 304 Stainless Steel Olets Fittings, ASTM A182 Stainless Steel 304 Welding Outlet Exporter, SS EN X5CrNi18-10 Brazolet Manufacturer in India.
Unifit Metalloys Inc is a popular manufacturer of SS 304 Olets, which is being used for different applications such as for nickel steels in cryogenic applications. We offer Stainless Steel 304 Welding Outlet in different type of thickness, specification, grades and dimensions. Stainless Steel 304 Socket Weld Outlet is being used for different applications such as for welding resistance to corrosion by sea water salts and plummeting acids. In addition, Stainless Steel 304 Threading Outlet is also used for weld metals that meet rigorous radiographic needs. Stainless Steel 304 Flexible Outlet is used for relatively a lot of applications in different industries like Marine, Pulp and Paper, Aerospace, Petrochemical, Chemical Processing, Oil and Gas, Waste processing, Food Processing, and Power generation Industries.
Table of Contents
- Stainless Steel 304 Olets Fittings Specification
- ASTM A182 304 Stainless Steel Olets Fittings Equivalent Grades
- Grade 304 SS Olets Fittings Chemical Composition
- ASME SA182 Stainless Steel 304 Olets Fittings Mechanical Properties
- SS 304 Olets Fittings Types
- Other Types of Grade 304 SS Olets Fittings in Stock
- ASTM A182 304 Olets Fittings Dimensions
ASME SA182 SS 304 Branch Connection Fittings, SS BS 304S31 Lateral Outlets, Stainless Steel UNS S30400 Insert Weldolet, Grade 304 Stainless Steel Sockolets Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Stainless Steel 304 Olets Fittings from Leading Manufacturer, Buy SS 304 Olets Fittings at Best Price in India.
Stainless Steel 304 Nipple Outlet is also used for high strength purpose at room or high temperature, for excellent corrosion resistance that include resistance to pitting and crevice corrosion, and also for polyphonic acid stress corrosion cracking. Stainless Steel 304 Sweepolet is being used for different applications such as for welding, and also for to improve resistance to stress corrosion cracking in nuclear and pure water environments. Stainless Steel 304 Laterolet has some exceptional high temperature strength, oxidation resistance, metallurgical stability, and can also meet up with stern radiographic requirements. Stainless Steel 304 Brazolet has some first-rate strength and oxidation resistance at soaring temperature.
Stainless Steel 304 Olets Fittings Specification
| Outlet Fittings Standard | ASTM A182 / ASME SA182 |
|---|---|
| Outlet Fittings Dimensions | ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc |
| Outlet Fittings Size | 1/8″-4″ (DN6-DN100) |
| Outlet Fittings Connect Type | Welded, threaded, BW, SW |
| Outlet Pipe Diameter | DN15 ~ DN40 |
| Outlet Fittings Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Outlet Process | Free forging, plate cutting, forged |
| Origin of Outlet | Indian Origin, European Origin, Japanese Origin |
| Outlet Fittings Packing | Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests |
| Test Certificates | Mill Test Certificates 304 Outlet Fittings Chemical Reports EN 10204 3.1 Mechanical Reports, Destructive Test Report Non Destructive Test Reports 304 Outlet Fittings PMI Test Reports 304 SS Outlet Fittings Visual Inspection Reports NABL Approved Lab Reports |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM A182 304 Stainless Steel Olets Fittings
| Products | Size | |
| ASTM A182 Stainless Steel 304 Weldolet | ASTM A182 Stainless Steel 304 Sockolet | Sizes: 1/8″-4″ (DN6-DN100) |
| ASTM A182 Stainless Steel 304 Elbolet | ASTM A182 Stainless Steel 304 Threadolet | |
| ASTM A182 Stainless Steel 304 Latrolets | ASTM A182 Stainless Steel 304 Nippolet | |
| ASTM A182 Stainless Steel 304 Sweepolet | ASTM A182 Stainless Steel 304 Brazolet | |
| ASTM A182 Stainless Steel 304 Flexolet | ASTM A182 Stainless Steel 304 Branch Outlets | |
| ASTM A182 Stainless Steel 304 Threading Outlet | ASTM A182 Stainless Steel 304 Socket Weld Outlet | |
ASTM A182 304 Stainless Steel Olets Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
Grade 304 Stainless Steel Olets Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
ASTM A182 Stainless Steel 304 Olets Fittings Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 304 Olets Fittings Types

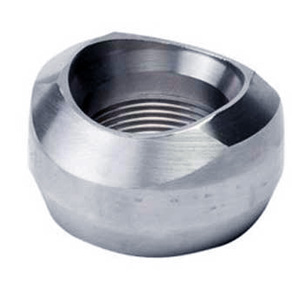

Stainless Steel 304 Threadolet

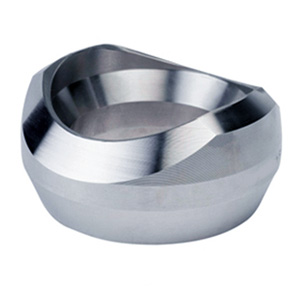

Stainless Steel 304 Weldolet

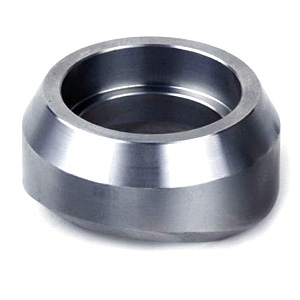

Stainless Steel 304 Sockolet
Stainless Steel 304 Elbolet

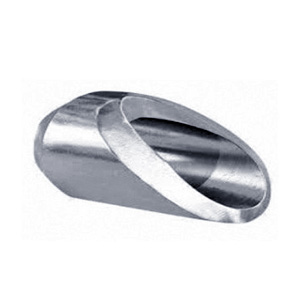

Stainless Steel 304 Latrolets

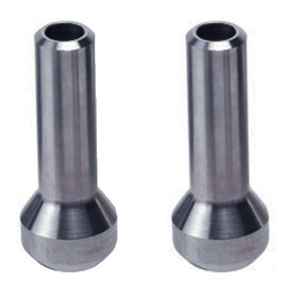

Stainless Steel 304 Nippolet
Stainless Steel 304 Flexolet
Stainless Steel 304 Sweepolet
Stainless Steel 304 Brazolet
Stainless Steel 304 Flangeolet
Stainless Steel 304 Coupolet
Other Types of Grade 304 Stainless Steel Olets Fittings in Stock
|
|
Stainless Steel 304 Olet Fittings Dimension
| Sockolet Dimensions | ||||||
|---|---|---|---|---|---|---|
| Outlet Size (NPT) | A | B | C | D | E | Approx. Weight (lb) |
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 |
| ELBOLET DIMENSIONS | |||||
| Nominal Size of Elbow (NPS) | Outlet Size (NPS) | CL 3000 Threaded and Socket WeldSch. Standard and XS Buttweld | CL 6000 Threaded and Socket Weld Sch. 160 and XXS Buttweld | ||
|---|---|---|---|---|---|
| C | E | C | E | ||
| 36 – 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 – 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 – 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 – 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 – 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 – 3 | 2 | 4 3/16 | 3 1/4 | – | – |
| Order to Specific Elbow Sizes |
|||||
| *2 1/2 | 4 3/16 | 3 1/4 | bw only | bw only | |
| *3 | 5 1/16 | 3 7/8 | bw only | bw only | |
| *4 | 6 5/8 | 4 13/16 | bw only | bw only | |
| *6 | 9 3/8 | 6 1/2 | bw only | bw only | |
| *8 | 13 5/16 | 8 1/16 | bw only | bw only | |
| *10 | 17 1/32 | 10 3/8 | bw only | bw only | |
| *12 | 19 5/8 | 11 1/8 | bw only | bw only | |
Stainless Steel 304 Olet Fittings Standard
| Standard | Description |
| ASTM A182 | Standard Specification for Stainless Steel 304 / 304L Outlet Fittings |
| ANSI ASME B16.11 | Socket-welding and Threaded Outlet fittings |
| MSS SP 79 | Standard Specification for Stainless Steel 304 / 304L Insert Welding Outlet |
| MSS SP-97 | SW,TH and BW ends for integrally reinforced forged branch outlet |
| JIS B2316 | socket-welding outlets pipe fittings |
