Monel DIN 2.4360 Olets Fittings, Monel GOST МНЖМц 28-2,5-1,5 Sweepolet, 400 Monel Branch Connection, Monel Alloy 400 Weldolet Manufacturer in India.
Unifit Metalloys Inc is a popular seller and stockist of Monel Alloy 400 Outlets, which has average corrosion resistance and average machinability. Monel 400 Welding Outlets offers good forgeability, average mechanical characteristics, limited weldability, and is as well pretty resistant to scaling up to 1000 Deg Celsius. Optimal material characteristics of Monel 400 Threading Outlets are realised after solution annealing by holding in the temperature that ranges from 800 Deg Celsius to 860 Deg Celsius, followed by speedy cooling in water or air. Typical applications of these Monel 400 Socket Weld Outlets are that it has elevated temperature nozzles and jets, elevated temperature conveyor systems, mechanical engineering, furnace engineering, grills, cement industry – chains, and more.
Table of Contents
- Monel Alloy 400 Olets Fittings Specification
- ASTM B366 400 Monel Alloy Olets Fittings Equivalent Grades
- Grade 400 Alloy Olets Fittings Chemical Composition
- ASME SB366 Monel Alloy 400 Olets Fittings Mechanical Properties
- Monel 400 Olets Fittings Types
- Other Types of Grade 400 Monel Olets Fittings in Stock
- ASTM B366 Monel 400 Olets Fittings Dimensions
Monel Alloy 400 Insert Weldolet, Monel 400 Flangeolet, ASTM B366 Monel 400 Branch Connection Fittings, EN NiCu30Fe Coupolet Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Monel Alloy 400 Olets Fittings from Leading Manufacturer, Buy Monel 400 Olets Fittings at Best Price in India.
However, this particular corrosion resistance of Monel 400 Flexible Outlets can further be improved by a series of methods such as tempering, polishing and hardening. Meanwhile, tempering and quenching can harden these Monel 400 Nipple Outlets, which are by and large used for appliances that involve mild corrosion, high strength and heat resistance. Also, Monel 400 Sweepolet is less resistant to corrosion when compared to that of other austenitic grades. The functioning temperatures of Monel 400 Coupolet are time and again getting affected by their loss of potency at elevated temperatures, because of over-tempering and loss of ductility at sub-zero temperatures. Monel 400 Brazolet is quite resistant to steam, food, hot gases, alkalies and mild acids, dry air and fresh water.
Monel Alloy 400 Olets Fittings Specification
| Outlet Fittings Standard | ASTM B366 / ASME SB366 |
|---|---|
| Outlet Fittings Dimensions | ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc |
| Outlet Fittings Size | 1/8″-4″ (DN6-DN100) |
| Outlet Fittings Connect Type | Welded, threaded, BW, SW |
| Outlet Pipe Diameter | DN15 ~ DN40 |
| Outlet Fittings Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Outlet Process | Free forging, plate cutting, forged |
| Origin of Outlet | Indian Origin, European Origin, Japanese Origin |
| Outlet Fittings Packing | Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests |
| Test Certificates | Mill Test Certificates Monel 400 Outlet Fittings Chemical Reports EN 10204 3.1 Mechanical Reports, Destructive Test Report Non Destructive Test Reports Monel 400 Outlet Fittings PMI Test Reports Monel 400 Outlet Fittings Visual Inspection Reports NABL Approved Lab Reports |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B366 400 Monel Alloy Olets Fittings
| Products | Size | |
| ASTM B366 Monel Alloy 400 Weldolet | ASTM B366 Monel Alloy 400 Sockolet | Sizes: 1/8″-4″ (DN6-DN100) |
| ASTM B366 Monel Alloy 400 Elbolet | ASTM B366 Monel Alloy 400 Threadolet | |
| ASTM B366 Monel Alloy 400 Latrolets | ASTM B366 Monel Alloy 400 Nippolet | |
| ASTM B366 Monel Alloy 400 Sweepolet | ASTM B366 Monel Alloy 400 Brazolet | |
| ASTM B366 Monel Alloy 400 Flexolet | ASTM B366 Monel Alloy 400 Branch Outlets | |
| ASTM B366 Monel Alloy 400 Threading Outlet | ASTM B366 Monel Alloy 400 Socket Weld Outlet | |
ASTM B366 400 Monel Alloy Olets Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Grade 400 Monel Alloy Olets Fittings Chemical Composition
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 - 2.5 | 28.0 - 34.0 | 0.02 max |
ASTM B366 Monel Alloy 400 Olets Fittings Mechanical Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
Monel 400 Olets Fittings Types

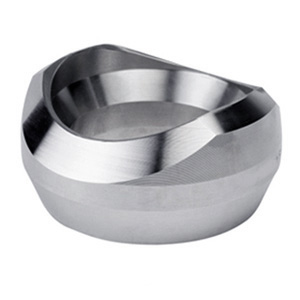

Monel Alloy 400 Threadolet
Monel Alloy 400 Weldolet
Monel Alloy 400 Sockolet
Monel Alloy 400 Elbolet
Monel Alloy 400 Latrolets

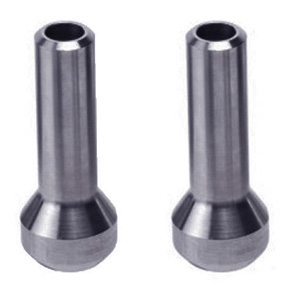

Monel Alloy 400 Nippolet

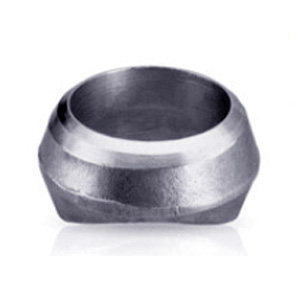

Monel Alloy 400 Flexolet
Monel Alloy 400 Sweepolet

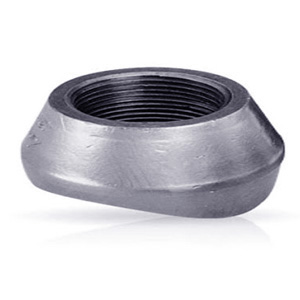

Monel Alloy 400 Brazolet

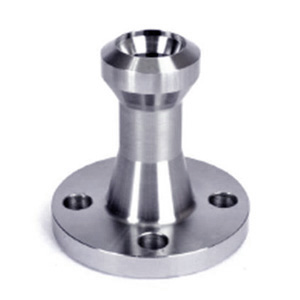

Monel Alloy 400 Flangeolet

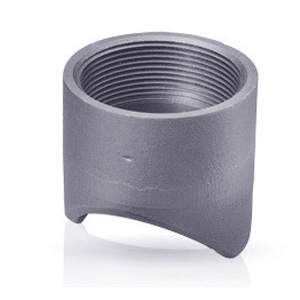

Monel Alloy 400 Coupolet
Other Types of Grade 400 Monel Alloy Olets Fittings in Stock
|
|
Monel Alloy 400 Olet Fittings Dimension
| Sockolet Dimensions | ||||||
|---|---|---|---|---|---|---|
| Outlet Size (NPT) | A | B | C | D | E | Approx. Weight (lb) |
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 |
| ELBOLET DIMENSIONS | |||||
| Nominal Size of Elbow (NPS) | Outlet Size (NPS) | CL 3000 Threaded and Socket WeldSch. Standard and XS Buttweld | CL 6000 Threaded and Socket Weld Sch. 160 and XXS Buttweld | ||
|---|---|---|---|---|---|
| C | E | C | E | ||
| 36 – 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 – 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 – 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 – 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 – 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 – 3 | 2 | 4 3/16 | 3 1/4 | – | – |
| Order to Specific Elbow Sizes |
|||||
| *2 1/2 | 4 3/16 | 3 1/4 | bw only | bw only | |
| *3 | 5 1/16 | 3 7/8 | bw only | bw only | |
| *4 | 6 5/8 | 4 13/16 | bw only | bw only | |
| *6 | 9 3/8 | 6 1/2 | bw only | bw only | |
| *8 | 13 5/16 | 8 1/16 | bw only | bw only | |
| *10 | 17 1/32 | 10 3/8 | bw only | bw only | |
| *12 | 19 5/8 | 11 1/8 | bw only | bw only | |
Monel Alloy 400 Olet Fittings Standard
| Standard | Description |
| ASTM B366 | Standard Specification for Monel Alloy 400Outlet Fittings |
| ANSI ASME B16.11 | Socket-welding and Threaded Outlet fittings |
| MSS SP 79 | Standard Specification for Monel Alloy 400 Insert Welding Outlet |
| MSS SP-97 | SW,TH and BW ends for integrally reinforced forged branch outlet |
| JIS B2316 | socket-welding outlets pipe fittings |
