ASTM B366 Copper Nickel 90/10 Threadolets, UNS C70600 Weldolet, Cu-Ni 90/10 Branch Connection, 90/10 Cupro Nickel Olets Fittings, Copper Nickel 90/10 Latrolets Manufacturer in India.
Unifit Metalloys Inc is a popular trader and dealer of Copper Nickel 90 / 10 Outlets, which offer excellent oxidation resistance, but the structural constancy of it disintegrates at elevated temperatures, mainly in more than 400 Deg Celsius. The elevated resistance of Copper Nickel 90 / 10 Welding Outlets in opposition to stress corrosion cracking is because of the existence of soaring amounts of nickel in its composition. Furthermore, the accumulation of copper in Copper Nickel 90 / 10 Threading Outlets form resistance to sulfuric acid and other plummeting agents in both mild and aggressive conditions. Copper Nickel 90 / 10 Socket Weld Outlets is being used for various applications such as in Gas washing, Seawater cooling equipment, Heat exchangers, Control and instrumentation, Condenser tubes, Chemical processing for sulfuric, phosphoric and acetic acids, etc.
Table of Contents
- Copper Nickel 90/10 Olets Fittings Specification
- ASTM B366 90/10 Cupro-Nickel Olets Fittings Equivalent Grades
- Grade Cu-Ni 90/10 Olets Fittings Chemical Composition
- ASME SB366 Copper Nickel 90/10 Olets Fittings Mechanical Properties
- Copper-Nickel 90/10 Olets Fittings Types
- Other Types of Grade 90/10 Cu-Ni Olets Fittings in Stock
- ASTM B366 Copper-Nickel 90/10 Olets Fittings Dimensions
CuNi 90/10 Lateral Outlets, INOX. 2.0872 Coupolet, Copper Nickel 90/10 Insert Weldolet, Cu-Ni 90/10 Swept Olet, ASME SB366 Cupro Nickel 90/10 Welding Outlet Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Copper Nickel 90/10 Olets Fittings from Leading Manufacturer, Buy Cu-Ni 90/10 Olets Fittings at Best Price in India.
These Copper Nickel 90 / 10 Flexible Outlets are also being used in several major industries such as in Chemical processing, Pharmaceutical, Oil and gas, etc. By means of the maximum chromium content, Copper Nickel 90 / 10 Nipple Outlets are the most resistant to reducing sulphurous gases. Copper Nickel 90 / 10 Sweepolet is a non-heat treatable and ferritic steel that provides excellent resistance to elevated temperature oxidation and corrosion. Copper Nickel 90 / 10 Brazolet is a soaring chromium ferritic heat resistant alloy in the company of good resistance to sulfidation, oxidation, and other conditionss of hot corrosion.
Copper Nickel 90/10 Olets Fittings Specification
| Outlet Fittings Standard | ASTM B366 / ASME SB366 |
|---|---|
| Outlet Fittings Dimensions | ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc |
| Outlet Fittings Size | 1/8″-4″ (DN6-DN100) |
| Outlet Fittings Connect Type | Welded, threaded, BW, SW |
| Outlet Pipe Diameter | DN15 ~ DN40 |
| Outlet Fittings Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Outlet Process | Free forging, plate cutting, forged |
| Origin of Outlet | Indian Origin, European Origin, Japanese Origin |
| Outlet Fittings Packing | Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests |
| Test Certificates | Mill Test Certificates Copper-Nickel 90/10 Outlet Fittings Chemical Reports EN 10204 3.1 Mechanical Reports, Destructive Test Report Non Destructive Test Reports Copper-Nickel 90/10 Outlet Fittings PMI Test Reports Copper-Nickel 90/10 Outlet Fittings Visual Inspection Reports NABL Approved Lab Reports |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B366 90/10 Cupro-Nickel Olets Fittings
| Products | Size | |
| ASTM B366 Copper Nickel 90/10 Weldolet | ASTM B366 Copper Nickel 90/10 Sockolet | Sizes: 1/8″-4″ (DN6-DN100) |
| ASTM B366 Copper Nickel 90/10 Elbolet | ASTM B366 Copper Nickel 90/10 Threadolet | |
| ASTM B366 Copper Nickel 90/10 Latrolets | ASTM B366 Copper Nickel 90/10 Nippolet | |
| ASTM B366 Copper Nickel 90/10 Sweepolet | ASTM B366 Copper Nickel 90/10 Brazolet | |
| ASTM B366 Copper Nickel 90/10 Flexolet | ASTM B366 Copper Nickel 90/10 Branch Outlets | |
| ASTM B366 Copper Nickel 90/10 Threading Outlet | ASTM B366 Copper Nickel 90/10 Socket Weld Outlet | |
ASTM B366 90/10 Cupro-Nickel Olets Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Copper-Nickel 90/10 | 2.0872 | C70600 |
Cu-Ni 90/10 Olets Fittings Chemical Composition
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
ASTM B366 Copper Nickel 90/10 Olets Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 90/10 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
Copper-Nickel 90/10 Olets Fittings Types
Copper Nickel 90/10 Threadolet

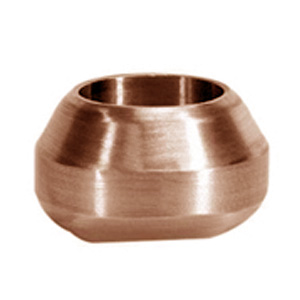

Copper Nickel 90/10 Weldolet
Copper Nickel 90/10 Sockolet

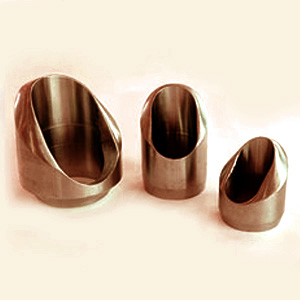

Copper Nickel 90/10 Elbolet

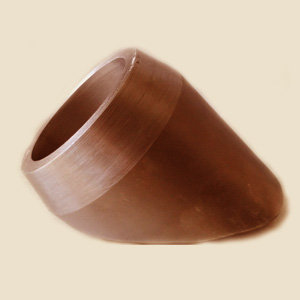

Copper Nickel 90/10 Latrolets

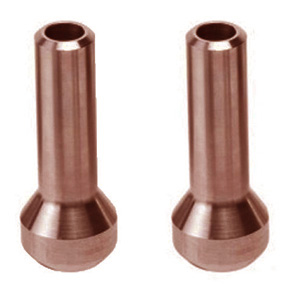

Copper Nickel 90/10 Nippolet
Copper Nickel 90/10 Flexolet
Copper Nickel 90/10 Sweepolet
Copper Nickel 90/10 Brazolet

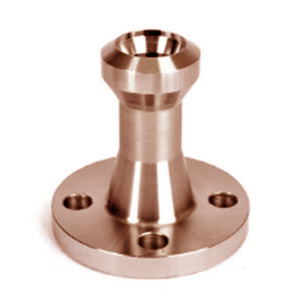

Copper Nickel 90/10 Flangeolet

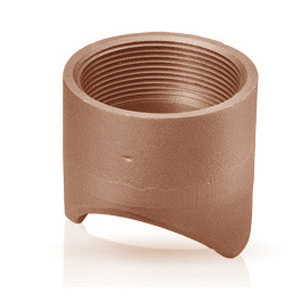

Copper Nickel 90/10 Coupolet
Other Types of Grade Cu-Ni 90/10 Olets Fittings in Stock
|
|
Copper Nickel 90/10 Olet Fittings Dimension
| Sockolet Dimensions | ||||||
|---|---|---|---|---|---|---|
| Outlet Size (NPT) | A | B | C | D | E | Approx. Weight (lb) |
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 |
| ELBOLET DIMENSIONS | |||||
| Nominal Size of Elbow (NPS) | Outlet Size (NPS) | CL 3000 Threaded and Socket WeldSch. Standard and XS Buttweld | CL 6000 Threaded and Socket Weld Sch. 160 and XXS Buttweld | ||
|---|---|---|---|---|---|
| C | E | C | E | ||
| 36 – 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 – 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 – 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 – 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 – 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 – 3 | 2 | 4 3/16 | 3 1/4 | – | – |
| Order to Specific Elbow Sizes |
|||||
| *2 1/2 | 4 3/16 | 3 1/4 | bw only | bw only | |
| *3 | 5 1/16 | 3 7/8 | bw only | bw only | |
| *4 | 6 5/8 | 4 13/16 | bw only | bw only | |
| *6 | 9 3/8 | 6 1/2 | bw only | bw only | |
| *8 | 13 5/16 | 8 1/16 | bw only | bw only | |
| *10 | 17 1/32 | 10 3/8 | bw only | bw only | |
| *12 | 19 5/8 | 11 1/8 | bw only | bw only | |
Copper Nickel 90/10 Olet Fittings Standard
| Standard | Description |
| ASTM B366 | Standard Specification for Copper Nickel 90/10Outlet Fittings |
| ANSI ASME B16.11 | Socket-welding and Threaded Outlet fittings |
| MSS SP 79 | Standard Specification for Copper Nickel 90/10 Insert Welding Outlet |
| MSS SP-97 | SW,TH and BW ends for integrally reinforced forged branch outlet |
| JIS B2316 | socket-welding outlets pipe fittings |
