DIN 2.4602 Threaded Half Coupling, UNS N06022 Forged Threaded Fittings, Alloy C22 Threaded Pipe Cap, Hastelloy C22 Threaded Cross, ASTM B564 Hastelloy C22 Threaded Bushing Manufacturer in India.
Unifit Metalloys Inc is a renowned manufacturer and stockist of Hastelloy Alloy C22 Threaded Fittings, which also come in a range of material grades and classes for any function. These Hastelloy C22 Threaded Elbow Fittings are extensively used in different application industries like oil refineries, petrochemical, chemical processing, cement industry, and so on. These Hastelloy C22 Threaded Tee Fittings is a kind of pipe fitting that is described as a part used in a piping system. Meanwhile, welding a Hastelloy Alloy C22 Threaded Cross Fittings signifies that it is enduringly a leak-proof. These Hastelloy C22 Threaded Cap Fittings are available in different grades, sizes, thickness and specifications as per the requirements given by clients.
Table of Contents
- Hastelloy Alloy C22 Threaded Fittings Specification
- ASTM B564 C-22 Hastelloy Threaded Fittings Equivalent Grades
- Hastelloy C22 Threaded Fittings Chemical Composition
- ASTM B564 Hastelloy C22 Threaded Fittings Mechanical Properties
- Hastelloy C22 Threaded Fittings Types
- Other Types of Hastelloy C22 Threaded Fittings in Stock
- Hastelloy C22 Threaded Forged Fittings Size Range & Dimensions
Hastelloy C22 Forged Full Coupling, ASME B16.11 Hastelloy® Alloy C22 Nipples, C-22 Hastelloy Alloy End Cap, Alloy C22 Threaded Bend, Hastelloy Alloy C22 Street Elbow Supplier in Mumbai, India.
Get a best quote for ASME B16.9 Hastelloy C22 Seamless Fittings from Leading Manufacturer, Buy Hastelloy C22 Threaded Elbow at Best Price in India.
Our Hastelloy C22 Threaded Coupling Fittings is generally used in noncritical and low-priced appliances such as industrial cooling water systems, fire protection, and domestic water. These Hastelloy C22 Threaded Bend Fittings are also being used in several plumbing installations for the delivery of liquids or gases under pressure. Hastelloy Alloy C22 Threaded Union Fittings are by and large made up of malleable iron or cast gray, cast bronze or brass, or carbon steel and forged alloy. Meanwhile, our Alloy C22 Threaded Plug Fittings are found in different pressure and temperature ratings. These Hastelloy C22 Threaded Bushing Fittings which are provided by us are quite being appreciated by our clients that are situated all over the country and abroad.
Hastelloy Alloy C22 Threaded Fittings Specification
| Threaded Forged Fittings Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Threaded Forged Fittings size | 1/8” NB to 4” NB ( Screwed-Threaded) |
| Threaded Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Threaded Forged Fittings Types | Threaded Fittings, Screwed Fittings |
| Threaded Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Threaded End-3000/ 6000/ 9000lbs |
| Threaded Forged Fittings Thread | NPT, BSPT, BSPP |
| Threaded Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Threaded Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | Threaded 90º Elbows, Threaded 45º Elbows, Threaded Tees, Threaded Cross, Threaded Couplings, Threaded Reducers, Threaded Inserts, Threaded Caps, Threaded Nipples, Threaded Unions, Threaded Forged Pipe Fittings, Threaded Equal Tees & Reducing Tees, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B564 Hastelloy C22 Threaded Fittings
| Products | Size | |
|---|---|---|
| ASTM B564 Hastelloy Alloy C22 90° Threaded Elbow | ASTM B564 Hastelloy Alloy C22 45° Threaded Elbow | Sizes 1/8″– 4″ |
| ASTM B564 Hastelloy Alloy C22 Screwed Bushing | ASTM B564 Hastelloy Alloy C22 Threaded Pipe Nipple | |
| ASTM B564 Hastelloy Alloy C22 Threaded Pipe End Cap | ASTM B564 Hastelloy Alloy C22 Screwed Coupling | |
| ASTM B564 Hastelloy Alloy C22 Threaded Tee | ASTM B564 Hastelloy Alloy C22 Threaded Union | |
| ASTM B564 Hastelloy Alloy C22 Threaded Cross | ASTM B564 Hastelloy Alloy C22 Threaded Insert | |
| ASTM B564 Hastelloy Alloy C22 Threaded Forged Plug | ASTM B564 Hastelloy Alloy C22 Threaded Street Elbow | |
ASTM B564 Hastelloy Alloy C22 Threaded Fittings Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | - | NiCr21Mo14W | NW 6022 | - | - |
ASTM B564 Hastelloy C22 Threaded Fittings Chemical Composition
| Grade | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V | Ni |
| C22 | 0.010 | 12.5 – 14.5 | 0.50 | 0.08 | 2.00 – 6.00 | 0.02 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
ASTM B564 Hastelloy Alloy C22 Threaded Fittings Mechanical Properties
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
Hastelloy C22 Threaded Fittings Types
ASTM B564 Hastelloy C22 45° Threaded Elbow
ASTM B564 Hastelloy C22 90° Threaded Elbow

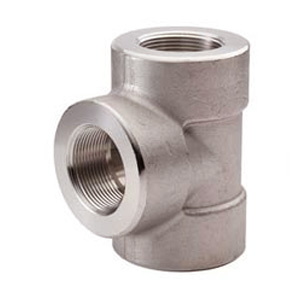

ASTM B564 Hastelloy C22 Threaded Equal Tee

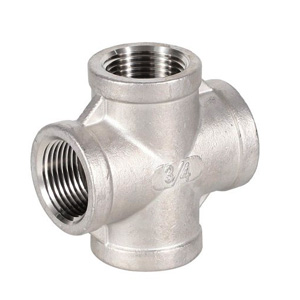

ASTM B564 Hastelloy C22 Threaded Cross

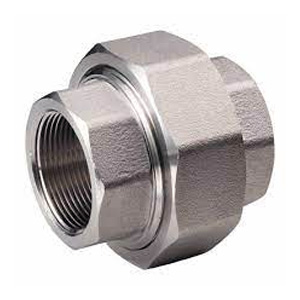

ASTM B564 Hastelloy C22 Threaded Union

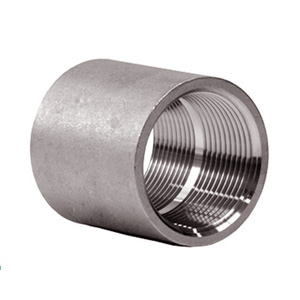

ASTM B564 Hastelloy C22 Threaded Full Coupling

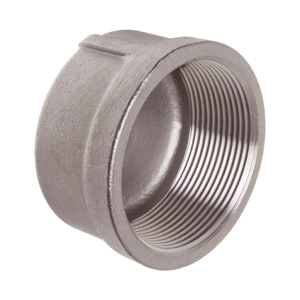

ASTM B564 Hastelloy C22 Threaded Pipe End Cap

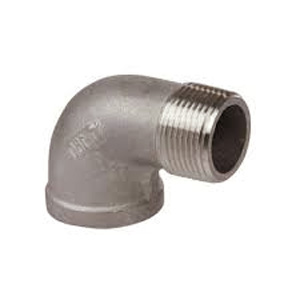

ASTM B564 Hastelloy C22 Threaded Street Elbow

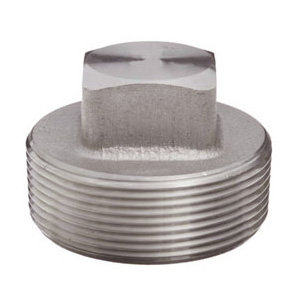

ASTM B564 Hastelloy C22 Threaded Plug

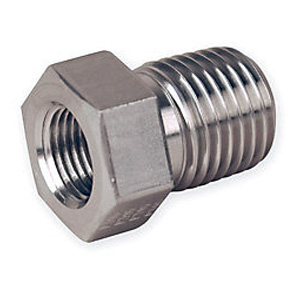

ASTM B564 Hastelloy C22 Threaded Bushing

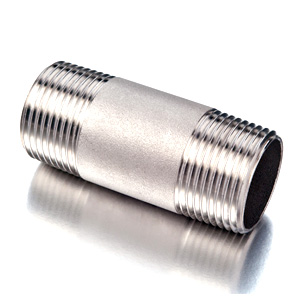

ASTM B564 Hastelloy C22 Threaded Nipples
Hastelloy Alloy C22 Threaded Fittings Manufacturing Standards
| ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Hastelloy Alloy Piping Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Other Types of Hastelloy Alloy C22 Threaded Fittings in Stock
|
|
Hastelloy Alloy C22 High Pressure Threaded Forged Pipe Fittings
| Pressure Class | 2000lb/ 3000lb/ 6000lbs |
| Hastelloy C22 Threaded Forged Fittings Products | Threaded 90º Elbows, Threaded 45º Elbows, Threaded Tees, Threaded Cross, Threaded Couplings, Threaded Reducers, Threaded Inserts, Threaded Caps, Threaded Nipples, and Threaded Unions, Forged Threaded Pipe Fittings, Threaded, Threaded Plug |
| Dimension Specifications | ASME 16.11, MSSP-79, 83, 95, 97, BS 3799 |
| Size | 1/8′-4′ (DN6~DN100) |
Hastelloy ASTM B564 Gr C22 Threaded Forged Fittings Size Range & Dimensions
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
ASTM B564 Hastelloy C22 90º ELBOW, 45º ELBOW, CROSS, TEE Forged Fittings Dimensions
| Nominal Pipe Size | Centre to End Elbows, Tee, Crosses A | Centre to End 45º Elbows C | Outside Diameter of Band H | Minimum Wall Thickness G | Lengths of Thread Min | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | B | L2 | |
| 1/8 | 13/16 | 13/16 | 31/32 | 11/16 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | .125 | .125 | .250 | .25 | .2639 |
| 1/4 | 13/16 | 31/32 | 1-1/8 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | 1-5/16 | .125 | .130 | .260 | .32 | .4018 |
| 3/8 | 3/32 | 1-1/8 | 1-5/16 | 3/4 | 7/8 | 1 | 1 | 1-5/16 | 1-1/2 | .125 | .138 | .275 | .36 | .4078 |
| 1/2 | 1-1/8 | 1-5/16 | 1-1/2 | 7/8 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | .125 | .161 | .321 | .43 | .5337 |
| 3/4 | 1-5/16 | 1-1/2 | 1-3/4 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | 2-3/16 | .123 | .168 | .336 | .50 | .5457 |
| 1 | 1-1/2 | 1-3/4 | 2 | 1-1/8 | 1-5/16 | 1-3/8 | 1-13/16 | 2-3/16 | 2-7/16 | .145 | .196 | .391 | .58 | .6828 |
| 1-1/4 | 1-3/4 | 2 | 2-3/8 | 1-15/16 | 1-3/8 | 1-11/16 | 2-3/16 | 2-7/16 | 2-31/32 | .153 | .208 | .417 | .67 | .7068 |
| 1-1/2 | 2 | 2-3/8 | 2-1/2 | 1-3/8 | 1-11/16 | 1-23/32 | 2-7/16 | 2-31/32 | 3-5/16 | .158 | .218 | .436 | .70 | .7235 |
| 2 | 2-3/8 | 2-1/2 | 3-3/4 | 1-11/16 | 1-23/32 | 2-1/16 | 2-31/32 | 3-5/16 | 4 | .168 | .238 | .476 | .75 | .7565 |
| 2-1/2 | 3 | 3-1/4 | 3-3/4 | 2-1/16 | 2-1/16 | 2-1/2 | 3-5/8 | 4 | 4 | .221 | .301 | .602 | .932 | 1.138 |
| 3 | 3-3/8 | 3-3/4 | 4-3/16 | 2-1/2 | 2-1/2 | 3-1/8 | 4-5/16 | 4-3/4 | 4-3/4 | .236 | .327 | .655 | 1.016 | 1.200 |
| 4 | 3-3/16 | 4-1/2 | 4-1/2 | 3-1/8 | 3-1/8 | 3-1/8 | 5-3/4 | 5 | 6 | .258 | .368 | .735 | 1.094 | 1.300 |
