ASTM B564 Inconel 600 Threaded Cross, Inconel JIS NCF 600 Threaded Equal Tee, EN NiCr15Fe Inconel Forged Threaded Fittings, Inconel DIN 2.4816 Inconel Bushing Manufacturer in India.
Unifit Metalloys Inc is a renowned manufacturer and trader of Inconel Alloy 600 Threaded Fittings, which are widely used in refining industries for connecting reasons. Inconel 600 Threaded Elbow Fittings are particularly apt for reducing states in industries like marine engineering, hydro-carbon processing, chemical processing, heat exchangers, pumps and valves. We as well stocks and supplies a whole range of Inconel 600 Threaded Tee Fittings to set off our present production variety of alloys. Inconel 600 Threaded Cross Fittings can also be supplied in made to order length sizes and as well machined or fabricated to meet your requirements in piping system.
Table of Contents
- Inconel Alloy 600 Threaded Fittings Specification
- ASTM B564 600 Inconel Alloy Threaded Fittings Equivalent Grades
- Inconel 600 Threaded Fittings Chemical Composition
- ASTM B564 Inconel 600 Threaded Fittings Mechanical Properties
- Alloy 600 Threaded Fittings Types
- Other Types of Inconel 600 Threaded Fittings in Stock
- Thickness Chart of Inconel Alloy 600 Threaded Fittings
- Alloy 600 Threaded Forged Fittings Size Range & Dimensions
Inconel BS NA 13 Threaded Full Coupling, Nickel Alloy 600 Threaded Cross, Alloy 600 Screwed Fittings, Inconel 600 Threaded End Pipe Cap, ASME SB564 Inconel Alloy 600 High Pressure Threaded Fittings Supplier in Mumbai, India.
Get a best quote for ASME B16.9 Inconel 600 Seamless Fittings from Leading Manufacturer, Buy Alloy 600 Threaded Elbow at Best Price in India.
Comes in different sizes, grades, standards and specifications, these Inconel 600 Threaded Cap Fittings are being resourced from the most-trusted vendors by out experts. These Inconel 600 Threaded Coupling Fittings are only one of its kinds because of their trouble-free connectivity in the company of other pipes. Offered Inconel 600 Threaded Bend Fittings is being made up by consuming finest grade material and most-recent techniques in an observance by setting standards. Our valued clients can get this qualitative range of Inconel 600 Threaded Union Fittings from us at industry-leading costs. Inconel 600 Threaded Plug Fittings is quite similar to other best alloy where it has a radius at the junction of the bore and as well the face which is for to put up a lap stub end.
Inconel Alloy 600 Threaded Fittings Specification
| Threaded Forged Fittings Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Threaded Forged Fittings size | 1/8” NB to 4” NB ( Screwed-Threaded) |
| Threaded Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Threaded Forged Fittings Types | Threaded Fittings, Screwed Fittings |
| Threaded Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Threaded End-3000/ 6000/ 9000lbs |
| Threaded Forged Fittings Thread | NPT, BSPT, BSPP |
| Threaded Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Threaded Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | Threaded 90º Elbows, Threaded 45º Elbows, Threaded Tees, Threaded Cross, Threaded Couplings, Threaded Reducers, Threaded Inserts, Threaded Caps, Threaded Nipples, Threaded Unions, Threaded Forged Pipe Fittings, Threaded Equal Tees & Reducing Tees, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B564 Inconel 600 Threaded Fittings
| Products | Size | |
|---|---|---|
| ASTM B564 Inconel Alloy 600 90° Threaded Elbow | ASTM B564 Inconel Alloy 600 45° Threaded Elbow | Sizes 1/8″– 4″ |
| ASTM B564 Inconel Alloy 600 Screwed Bushing | ASTM B564 Inconel Alloy 600 Threaded Pipe Nipple | |
| ASTM B564 Inconel Alloy 600 Threaded Pipe End Cap | ASTM B564 Inconel Alloy 600 Screwed Coupling | |
| ASTM B564 Inconel Alloy 600 Threaded Tee | ASTM B564 Inconel Alloy 600 Threaded Union | |
| ASTM B564 Inconel Alloy 600 Threaded Cross | ASTM B564 Inconel Alloy 600 Threaded Insert | |
| ASTM B564 Inconel Alloy 600 Threaded Forged Plug | ASTM B564 Inconel Alloy 600 Threaded Street Elbow | |
ASTM B564 Inconel Alloy 600 Threaded Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
ASTM B564 Inconel 600 Threaded Fittings Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
ASTM B564 Inconel Alloy 600 Threaded Fittings Mechanical Properties
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi - 45,000 , MPa-310 | Psi - 95,000 , MPa-655 | 40 % |
Inconel 600 Threaded Fittings Types

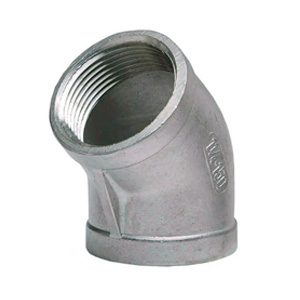

ASTM B564 Inconel 600 45° Threaded Elbow

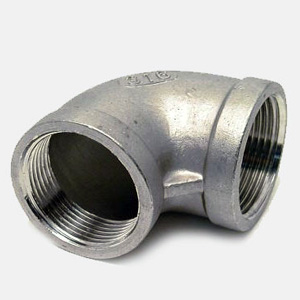

ASTM B564 Inconel 600 90° Threaded Elbow

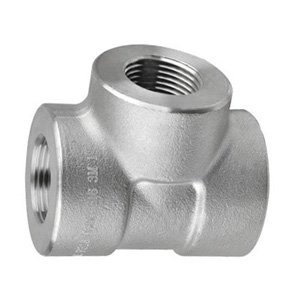

ASTM B564 Inconel 600 Threaded Equal Tee

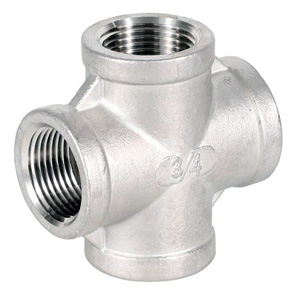

ASTM B564 Inconel 600 Threaded Cross
ASTM B564 Inconel 600 Threaded Union

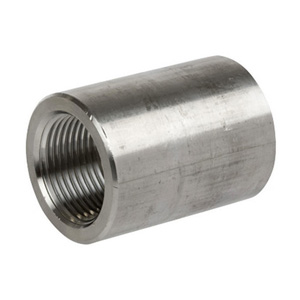

ASTM B564 Inconel 600 Threaded Full Coupling

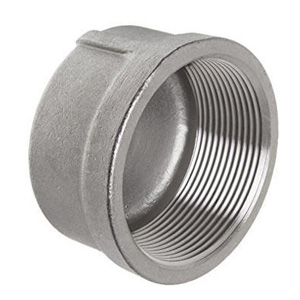

ASTM B564 Inconel 600 Threaded Pipe End Cap

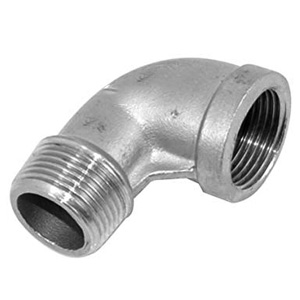

ASTM B564 Inconel 600 Threaded Street Elbow

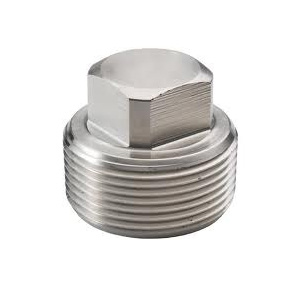

ASTM B564 Inconel 600 Threaded Plug

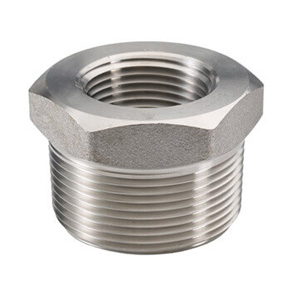

ASTM B564 Inconel 600 Threaded Bushing

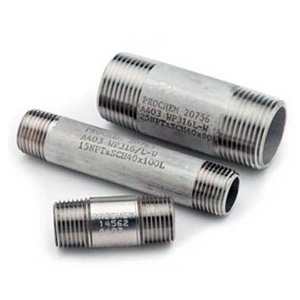

ASTM B564 Inconel 600 Threaded Nipples
Inconel Alloy 600 Threaded Fittings Manufacturing Standards
| ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Inconel Alloy Piping Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Other Types of Inconel Alloy 600 Threaded Fittings in Stock
|
|
Inconel Alloy 600 High Pressure Threaded Forged Pipe Fittings
| Pressure Class | 2000lb/ 3000lb/ 6000lbs |
| Inconel 600 Threaded Forged Fittings Products | Threaded 90º Elbows, Threaded 45º Elbows, Threaded Tees, Threaded Cross, Threaded Couplings, Threaded Reducers, Threaded Inserts, Threaded Caps, Threaded Nipples, and Threaded Unions, Forged Threaded Pipe Fittings, Threaded, Threaded Plug |
| Dimension Specifications | ASME 16.11, MSSP-79, 83, 95, 97, BS 3799 |
| Size | 1/8′-4′ (DN6~DN100) |
Inconel ASTM B564 Gr. 600 Threaded Forged Fittings Size Range & Dimensions
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
ASTM B564 Inconel 600 90º ELBOW, 45º ELBOW, CROSS, TEE Forged Fittings Dimensions
| Nominal Pipe Size | Centre to End Elbows, Tee, Crosses A | Centre to End 45º Elbows C | Outside Diameter of Band H | Minimum Wall Thickness G | Lengths of Thread Min | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | B | L2 | |
| 1/8 | 13/16 | 13/16 | 31/32 | 11/16 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | .125 | .125 | .250 | .25 | .2639 |
| 1/4 | 13/16 | 31/32 | 1-1/8 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | 1-5/16 | .125 | .130 | .260 | .32 | .4018 |
| 3/8 | 3/32 | 1-1/8 | 1-5/16 | 3/4 | 7/8 | 1 | 1 | 1-5/16 | 1-1/2 | .125 | .138 | .275 | .36 | .4078 |
| 1/2 | 1-1/8 | 1-5/16 | 1-1/2 | 7/8 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | .125 | .161 | .321 | .43 | .5337 |
| 3/4 | 1-5/16 | 1-1/2 | 1-3/4 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | 2-3/16 | .123 | .168 | .336 | .50 | .5457 |
| 1 | 1-1/2 | 1-3/4 | 2 | 1-1/8 | 1-5/16 | 1-3/8 | 1-13/16 | 2-3/16 | 2-7/16 | .145 | .196 | .391 | .58 | .6828 |
| 1-1/4 | 1-3/4 | 2 | 2-3/8 | 1-15/16 | 1-3/8 | 1-11/16 | 2-3/16 | 2-7/16 | 2-31/32 | .153 | .208 | .417 | .67 | .7068 |
| 1-1/2 | 2 | 2-3/8 | 2-1/2 | 1-3/8 | 1-11/16 | 1-23/32 | 2-7/16 | 2-31/32 | 3-5/16 | .158 | .218 | .436 | .70 | .7235 |
| 2 | 2-3/8 | 2-1/2 | 3-3/4 | 1-11/16 | 1-23/32 | 2-1/16 | 2-31/32 | 3-5/16 | 4 | .168 | .238 | .476 | .75 | .7565 |
| 2-1/2 | 3 | 3-1/4 | 3-3/4 | 2-1/16 | 2-1/16 | 2-1/2 | 3-5/8 | 4 | 4 | .221 | .301 | .602 | .932 | 1.138 |
| 3 | 3-3/8 | 3-3/4 | 4-3/16 | 2-1/2 | 2-1/2 | 3-1/8 | 4-5/16 | 4-3/4 | 4-3/4 | .236 | .327 | .655 | 1.016 | 1.200 |
| 4 | 3-3/16 | 4-1/2 | 4-1/2 | 3-1/8 | 3-1/8 | 3-1/8 | 5-3/4 | 5 | 6 | .258 | .368 | .735 | 1.094 | 1.300 |
