Nickel DIN 2.4066 Bushing, Nickel Alloy 200 Threaded Fittings, Nickel UNS N02200 Forged Threaded Fittings, ASTM B564 Ni-200 Threaded Cross Manufacturer in India.
Unifit Metalloys Inc is a well-known manufacturer and supplier of Nickel 200 Threaded Fittings, which is close to the pipe by a clean join around the centre of the alloy. Relying on our know-how and expertise in this field, we are renowned as one of the prominent organization in offering an extensive variety of Nickel Alloy 200 Threaded Elbow Fittings, where a voluntary gap weld may perhaps be used in high pressure applications. However the bore of Nickel Alloy 200 Threaded Tee Fittings is counter-bored to acknowledge the pipe, where the width of the left over bore is similar as the indoor pipe diameter.
Table of Contents
- Nickel Alloy 200 Threaded Fittings Specification
- ASTM B564 200 Nickel Alloy Threaded Fittings Equivalent Grades
- Grade 200 Nickel 200 Threaded Fittings Chemical Composition
- ASTM B564 Nickel 200 Threaded Fittings Mechanical Properties
- Alloy 200 Threaded Fittings Types
- Other Types of Nickel 200 Threaded Fittings in Stock
- Thickness Chart of Nickel Alloy 200 Threaded Fittings
- Alloy 200 Threaded Forged Fittings Size Range & Dimensions
Nickel Alloy 200 Street Elbow, Alloy 200 Threaded Forged 90 deg. Elbow, Nickel DIN 2.4066 Forged Threaded Fittings, Nickel 200 Threaded Coupling, ASTM B564 Ni-200 Threaded Tee Supplier in Mumbai, India.
Get a best quote for ASME B16.9 Nickel 200 Seamless Fittings from Leading Manufacturer, Buy Alloy 200 Threaded Elbow at Best Price in India.
The biggest use of such Nickel Alloy 200 Threaded Cross Fittings is in their highest pressure systems, like steam and hydraulic lines. These Nickel Alloy 200 Threaded Cap Fittings are well manufactured and the quality of it is preserved as per the global quality standards. Our existing ranges of complete products like Nickel Alloy 200 Threaded Coupling Fittings are extremely required in the market, where we provide these highest quality products at economical rates. We are specialized in manufacturing high standard quality of Nickel Alloy 200 Threaded Bend Fittings, which usually slips over the pipe. Nickel Alloy 200 Threaded Union Fittings are normally made up in the company of a within diameter of the alloy that is bigger than the exterior diameter of the pipe to some extent.
Nickel Alloy 200 Threaded Fittings Specification
| Threaded Forged Fittings Specifications | ASTM B564 / ASME SB564 |
|---|---|
| Threaded Forged Fittings size | 1/8” NB to 4” NB ( Screwed-Threaded) |
| Threaded Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Threaded Forged Fittings Types | Threaded Fittings, Screwed Fittings |
| Threaded Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Threaded End-3000/ 6000/ 9000lbs |
| Threaded Forged Fittings Thread | NPT, BSPT, BSPP |
| Threaded Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Threaded Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | Threaded 90º Elbows, Threaded 45º Elbows, Threaded Tees, Threaded Cross, Threaded Couplings, Threaded Reducers, Threaded Inserts, Threaded Caps, Threaded Nipples, Threaded Unions, Threaded Forged Pipe Fittings, Threaded Equal Tees & Reducing Tees, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B564 Nickel 200 Threaded Fittings
| Products | Size | |
|---|---|---|
| ASTM B564 Nickel Alloy 200 90° Threaded Elbow | ASTM B564 Nickel Alloy 200 45° Threaded Elbow | Sizes 1/8″– 4″ |
| ASTM B564 Nickel Alloy 200 Screwed Bushing | ASTM B564 Nickel Alloy 200 Threaded Pipe Nipple | |
| ASTM B564 Nickel Alloy 200 Threaded Pipe End Cap | ASTM B564 Nickel Alloy 200 Screwed Coupling | |
| ASTM B564 Nickel Alloy 200 Threaded Tee | ASTM B564 Nickel Alloy 200 Threaded Union | |
| ASTM B564 Nickel Alloy 200 Threaded Cross | ASTM B564 Nickel Alloy 200 Threaded Insert | |
| ASTM B564 Nickel Alloy 200 Threaded Forged Plug | ASTM B564 Nickel Alloy 200 Threaded Street Elbow | |
ASTM B564 Nickel Alloy 200 Threaded Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
ASTM B564 Nickel 200 Threaded Fittings Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
ASTM B564 Alloy 200 Threaded Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Nickel 200 Threaded Fittings Types
ASTM B564 Nickel 200 45° Threaded Elbow
ASTM B564 Nickel 200 90° Threaded Elbow
ASTM B564 Nickel 200 Threaded Equal Tee

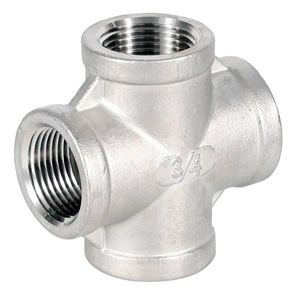

ASTM B564 Nickel 200 Threaded Cross

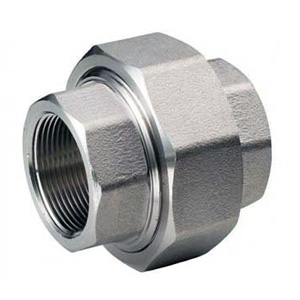

ASTM B564 Nickel 200 Threaded Union

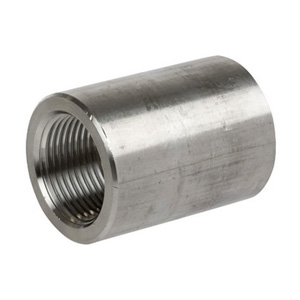

ASTM B564 Nickel 200 Threaded Full Coupling
ASTM B564 Nickel 200 Threaded Pipe End Cap

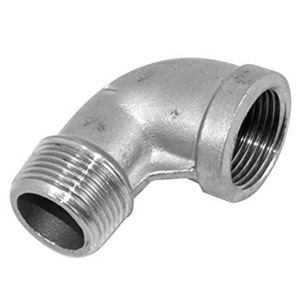

ASTM B564 Nickel 200 Threaded Street Elbow

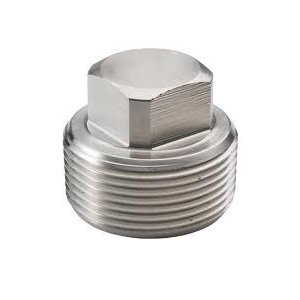

ASTM B564 Nickel 200 Threaded Plug

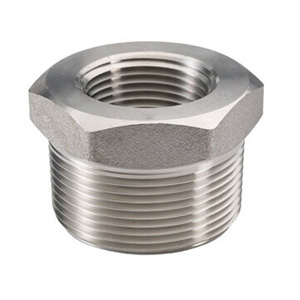

ASTM B564 Nickel 200 Threaded Bushing

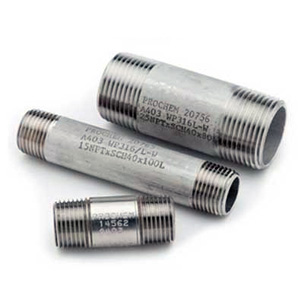

ASTM B564 Nickel 200 Threaded Nipples
Nickel Alloy 200 Threaded Fittings Manufacturing Standards
| ASTM B564 – ASME SB564 | Standard Specification for Wrought Austenitic Nickel Alloy Piping Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Other Types of Nickel Alloy 200 Threaded Fittings in Stock
|
|
Nickel Alloy 200 High Pressure Threaded Forged Pipe Fittings
| Pressure Class | 2000lb/ 3000lb/ 6000lbs |
| Nickel 200 Threaded Forged Fittings Products | Threaded 90º Elbows, Threaded 45º Elbows, Threaded Tees, Threaded Cross, Threaded Couplings, Threaded Reducers, Threaded Inserts, Threaded Caps, Threaded Nipples, and Threaded Unions, Forged Threaded Pipe Fittings, Threaded, Threaded Plug |
| Dimension Specifications | ASME 16.11, MSSP-79, 83, 95, 97, BS 3799 |
| Size | 1/8′-4′ (DN6~DN100) |
Nickel ASTM B564 Gr. 200 Threaded Forged Fittings Size Range & Dimensions
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
ASTM B564 Nickel 200 90º ELBOW, 45º ELBOW, CROSS, TEE Forged Fittings Dimensions
| Nominal Pipe Size | Centre to End Elbows, Tee, Crosses A | Centre to End 45º Elbows C | Outside Diameter of Band H | Minimum Wall Thickness G | Lengths of Thread Min | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | B | L2 | |
| 1/8 | 13/16 | 13/16 | 31/32 | 11/16 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | .125 | .125 | .250 | .25 | .2639 |
| 1/4 | 13/16 | 31/32 | 1-1/8 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | 1-5/16 | .125 | .130 | .260 | .32 | .4018 |
| 3/8 | 3/32 | 1-1/8 | 1-5/16 | 3/4 | 7/8 | 1 | 1 | 1-5/16 | 1-1/2 | .125 | .138 | .275 | .36 | .4078 |
| 1/2 | 1-1/8 | 1-5/16 | 1-1/2 | 7/8 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | .125 | .161 | .321 | .43 | .5337 |
| 3/4 | 1-5/16 | 1-1/2 | 1-3/4 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | 2-3/16 | .123 | .168 | .336 | .50 | .5457 |
| 1 | 1-1/2 | 1-3/4 | 2 | 1-1/8 | 1-5/16 | 1-3/8 | 1-13/16 | 2-3/16 | 2-7/16 | .145 | .196 | .391 | .58 | .6828 |
| 1-1/4 | 1-3/4 | 2 | 2-3/8 | 1-15/16 | 1-3/8 | 1-11/16 | 2-3/16 | 2-7/16 | 2-31/32 | .153 | .208 | .417 | .67 | .7068 |
| 1-1/2 | 2 | 2-3/8 | 2-1/2 | 1-3/8 | 1-11/16 | 1-23/32 | 2-7/16 | 2-31/32 | 3-5/16 | .158 | .218 | .436 | .70 | .7235 |
| 2 | 2-3/8 | 2-1/2 | 3-3/4 | 1-11/16 | 1-23/32 | 2-1/16 | 2-31/32 | 3-5/16 | 4 | .168 | .238 | .476 | .75 | .7565 |
| 2-1/2 | 3 | 3-1/4 | 3-3/4 | 2-1/16 | 2-1/16 | 2-1/2 | 3-5/8 | 4 | 4 | .221 | .301 | .602 | .932 | 1.138 |
| 3 | 3-3/8 | 3-3/4 | 4-3/16 | 2-1/2 | 2-1/2 | 3-1/8 | 4-5/16 | 4-3/4 | 4-3/4 | .236 | .327 | .655 | 1.016 | 1.200 |
| 4 | 3-3/16 | 4-1/2 | 4-1/2 | 3-1/8 | 3-1/8 | 3-1/8 | 5-3/4 | 5 | 6 | .258 | .368 | .735 | 1.094 | 1.300 |
