Titanium DIN 3.703 Forged Full Coupling, Ti. Alloy Gr.2 Threaded Forged 90 deg. Elbow, ASME B16.11 Titanium Grade 2 Nipples, Gr.2 Titanium Alloy End Cap Manufacturer in India.
Unifit Metalloys Inc is a renowned exporter and trader of Titanium Alloy Grade 2 Threaded Fittings, which is broadly used in diverse application in industries like petrochemical, oil & gas, processing, etc. These Titanium Grade 2 Threaded Elbow Fittings are thoroughly tested in make sure in giving one of the highest standard qualities with surviving under intense situations. Titanium Grade 2 Threaded Tee Fittings comes in an outward look of a hollow cylinder, by having concentric circles in its inner diameter of the cylinder.
Table of Contents
- Titanium Alloy Gr.2 Threaded Fittings Specification
- ASTM B381 Gr.2 Titanium Alloy Threaded Fittings Equivalent Grades
- Titanium Gr.2 Threaded Fittings Chemical Composition
- ASTM B381 Titanium Grade 2 Threaded Fittings Mechanical Properties
- Ti. Gr.2 Threaded Fittings Types
- Other Types of Titanium Grade 2 Threaded Fittings in Stock
- Titanium Grade 2 Threaded Forged Fittings Size Range & Dimensions
ASME B16.11 Titanium Grade 2 Threaded 45 deg. Elbow, Titanium Alloy Gr.2 Threaded Cross, Titanium UNS R50400 Forged Threaded Fittings, Titanium Gr 2 Threaded Bushing, Ti. Gr.2 Threaded Pipe Cap Supplier in Mumbai, India.
Get a best quote for ASME B16.9 Titanium Grade 2 Seamless Fittings from Leading Manufacturer, Buy Ti. Gr.2 Threaded Elbow at Best Price in India.
Our variety of Ti. Gr.2 Threaded Cross Fittings is being used to connect the ends of two pipes or tubes of different diameters. Meanwhile, these Titanium Grade 2 Threaded Cap Fittings are being accessible as per the global and nationwide designs and models. Titanium Grade 2 Threaded Coupling Fittings are also offered in different sizes, specifications, thickness and grades as per the necessities of the customers. These Titanium Grade 2 Threaded Bend Fittings which are being offered by us are pretty much commended by our customers that are based in India and abroad. We undertake a series of deep drawn elements in Titanium Grade 2 Threaded Union Fittings for to meet the requirements and standards of our clients. These Titanium Grade 2 Threaded Plug Fittings are available in different sizes, standards, classes, shapes and grades that make quite popular among the mass buyers and industries as well.
Titanium Alloy Gr.2 Threaded Fittings Specification
| Threaded Forged Fittings Specifications | ASTM B381 / ASME SB381 |
|---|---|
| Threaded Forged Fittings size | 1/8” NB to 4” NB ( Screwed-Threaded) |
| Threaded Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Threaded Forged Fittings Types | Threaded Fittings, Screwed Fittings |
| Threaded Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Threaded End-3000/ 6000/ 9000lbs |
| Threaded Forged Fittings Thread | NPT, BSPT, BSPP |
| Threaded Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Threaded Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | Threaded 90º Elbows, Threaded 45º Elbows, Threaded Tees, Threaded Cross, Threaded Couplings, Threaded Reducers, Threaded Inserts, Threaded Caps, Threaded Nipples, Threaded Unions, Threaded Forged Pipe Fittings, Threaded Equal Tees & Reducing Tees, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B381 Titanium Grade 2 Threaded Fittings
| Products | Size | |
|---|---|---|
| ASTM B381 Titanium Alloy Gr.2 90° Threaded Elbow | ASTM B381 Titanium Alloy Gr.2 45° Threaded Elbow | Sizes 1/8″– 4″ |
| ASTM B381 Titanium Alloy Gr.2 Screwed Bushing | ASTM B381 Titanium Alloy Gr.2 Threaded Pipe Nipple | |
| ASTM B381 Titanium Alloy Gr.2 Threaded Pipe End Cap | ASTM B381 Titanium Alloy Gr.2 Screwed Coupling | |
| ASTM B381 Titanium Alloy Gr.2 Threaded Tee | ASTM B381 Titanium Alloy Gr.2 Threaded Union | |
| ASTM B381 Titanium Alloy Gr.2 Threaded Cross | ASTM B381 Titanium Alloy Gr.2 Threaded Insert | |
| ASTM B381 Titanium Alloy Gr.2 Threaded Forged Plug | ASTM B381 Titanium Alloy Gr.2 Threaded Street Elbow | |
ASTM B381 Titanium Alloy Gr.2 Threaded Fittings Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Grade 2 | R50400 | 3.7035 |
ASTM B381 Titanium Grade 2 Threaded Fittings Chemical Composition
| Element | Ti | C | Fe | H | N | O |
| Titanium Gr 2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max |
ASTM B381 Titanium Alloy Gr.2 Threaded Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti. Gr.2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Titanium Grade 2 Threaded Fittings Types

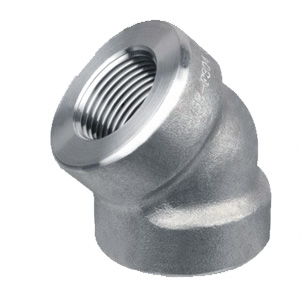

ASTM B381 Titanium Grade 2 45° Threaded Elbow

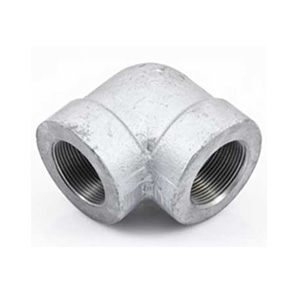

ASTM B381 Titanium Grade 2 90° Threaded Elbow
ASTM B381 Titanium Grade 2 Threaded Equal Tee
ASTM B381 Titanium Grade 2 Threaded Cross
ASTM B381 Titanium Grade 2 Threaded Union
ASTM B381 Titanium Grade 2 Threaded Full Coupling
ASTM B381 Titanium Grade 2 Threaded Pipe End Cap

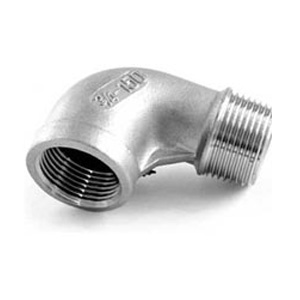

ASTM B381 Titanium Grade 2 Threaded Street Elbow
ASTM B381 Titanium Grade 2 Threaded Plug

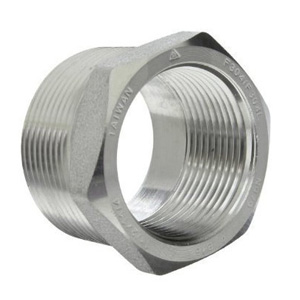

ASTM B381 Titanium Grade 2 Threaded Bushing
ASTM B381 Titanium Grade 2 Threaded Nipples
Titanium Alloy Gr.2 Threaded Fittings Manufacturing Standards
| ASTM B381 – ASME SB381 | Standard Specification for Wrought Austenitic Titanium Alloy Piping Fittings |
| ASME B16.11 | Forged Fittings, Socket – Welding and Threaded |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Other Types of Titanium Alloy Gr.2 Threaded Fittings in Stock
|
|
Titanium Alloy Gr.2 High Pressure Threaded Forged Pipe Fittings
| Pressure Class | 2000lb/ 3000lb/ 6000lbs |
| Titanium Grade 2 Threaded Forged Fittings Products | Threaded 90º Elbows, Threaded 45º Elbows, Threaded Tees, Threaded Cross, Threaded Couplings, Threaded Reducers, Threaded Inserts, Threaded Caps, Threaded Nipples, and Threaded Unions, Forged Threaded Pipe Fittings, Threaded, Threaded Plug |
| Dimension Specifications | ASME 16.11, MSSP-79, 83, 95, 97, BS 3799 |
| Size | 1/8′-4′ (DN6~DN100) |
Titanium ASTM B381 Gr Gr.2 Threaded Forged Fittings Size Range & Dimensions
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
ASTM B381 Titanium Grade 2 90º ELBOW, 45º ELBOW, CROSS, TEE Forged Fittings Dimensions
| Nominal Pipe Size | Centre to End Elbows, Tee, Crosses A | Centre to End 45º Elbows C | Outside Diameter of Band H | Minimum Wall Thickness G | Lengths of Thread Min | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | B | L2 | |
| 1/8 | 13/16 | 13/16 | 31/32 | 11/16 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | .125 | .125 | .250 | .25 | .2639 |
| 1/4 | 13/16 | 31/32 | 1-1/8 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | 1-5/16 | .125 | .130 | .260 | .32 | .4018 |
| 3/8 | 3/32 | 1-1/8 | 1-5/16 | 3/4 | 7/8 | 1 | 1 | 1-5/16 | 1-1/2 | .125 | .138 | .275 | .36 | .4078 |
| 1/2 | 1-1/8 | 1-5/16 | 1-1/2 | 7/8 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | .125 | .161 | .321 | .43 | .5337 |
| 3/4 | 1-5/16 | 1-1/2 | 1-3/4 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | 2-3/16 | .123 | .168 | .336 | .50 | .5457 |
| 1 | 1-1/2 | 1-3/4 | 2 | 1-1/8 | 1-5/16 | 1-3/8 | 1-13/16 | 2-3/16 | 2-7/16 | .145 | .196 | .391 | .58 | .6828 |
| 1-1/4 | 1-3/4 | 2 | 2-3/8 | 1-15/16 | 1-3/8 | 1-11/16 | 2-3/16 | 2-7/16 | 2-31/32 | .153 | .208 | .417 | .67 | .7068 |
| 1-1/2 | 2 | 2-3/8 | 2-1/2 | 1-3/8 | 1-11/16 | 1-23/32 | 2-7/16 | 2-31/32 | 3-5/16 | .158 | .218 | .436 | .70 | .7235 |
| 2 | 2-3/8 | 2-1/2 | 3-3/4 | 1-11/16 | 1-23/32 | 2-1/16 | 2-31/32 | 3-5/16 | 4 | .168 | .238 | .476 | .75 | .7565 |
| 2-1/2 | 3 | 3-1/4 | 3-3/4 | 2-1/16 | 2-1/16 | 2-1/2 | 3-5/8 | 4 | 4 | .221 | .301 | .602 | .932 | 1.138 |
| 3 | 3-3/8 | 3-3/4 | 4-3/16 | 2-1/2 | 2-1/2 | 3-1/8 | 4-5/16 | 4-3/4 | 4-3/4 | .236 | .327 | .655 | 1.016 | 1.200 |
| 4 | 3-3/16 | 4-1/2 | 4-1/2 | 3-1/8 | 3-1/8 | 3-1/8 | 5-3/4 | 5 | 6 | .258 | .368 | .735 | 1.094 | 1.300 |
