ASTM A182 Stainless Steel F304 Threaded Fittings, Stainless Steel 304 45 deg Elbow, F304 Stainless Steel Threaded Hex Head Bushing, SS DIN 1.4301 Threaded Hex Plug Manufacturer in India.
Unifit Metalloys Inc is a prominent manufacturer of Stainless Steel 304 Threaded Fittings, which is used as per international standard quality of raw materials and find application all over different sectors. Stainless Steel 304 Threaded Elbow Fittings is a ferritic and non-heat treatable product that provides excellent resistance to an elevated temperature oxidation and corrosion. Positive feeds and slow speeds combined in the company of sharp tooling surfaces and rigid mounts optimize the machining of these Stainless Steel 304 Threaded Tee Fittings. Most general welding processes can be productively employed by means of Stainless Steel 304 Threaded Cross Fittings.
Table of Contents
- Stainless Steel 304 Threaded Fittings Specification
- ASTM A182 F304 Stainless Steel Threaded Fittings Equivalent Grades
- Grade F304 Stainless Steel Threaded Fittings Chemical Composition
- ASTM A182 Stainless Steel 304 Threaded Fittings Mechanical Properties
- SS 304 Threaded Fittings Types
- Other Types of Grade 304 Stainless Steel Threaded Fittings in Stock
- Thickness Chart of Stainless Steel 304 Threaded Fittings
- SS 304 Threaded Forged Fittings Size Range & Dimensions
SS UNS S30400 90 Deg Threaded Elbow Stockist, 304 Stainless Steel Threaded Boss, Stainless Steel EN X5CrNi18-10 Threaded Reducing Tee, SS 304 Threaded 90° Outlet Elbow Supplier in Mumbai, India.
Get a best quote for ASME B16.9 SS 304 Seamless Fittings from Leading Manufacturer, Buy SS 304 Threaded Elbow at Best Price in India.
Because of its high chromium content, Stainless Steel 304 Threaded Cap Fittings is more hard than other any other stainless steels to spin, weld, bend and draw. Stainless Steel 304 Threaded Bend Fittings are used for several applications such as in boiler baffles, furnace components, oil burner parts, X-ray tube bases, kiln linings, annealing boxes, industrial mufflers, glass molds, and more. SS UNS S30400 Threaded Coupling Fittings are available in customized length, sizes and shapes at market leading prices. Stainless Steel 304 Threaded Union Fittings is a stabilized austenitic material, which is quite similar to other alloys by means of an addition of Tantalum and Columbium content in it. Well, the columbium content in Stainless Steel 304 Threaded Bushing Fittings serves to form a stabilized type of stainless steel that is relatively resistant to chromium carbide precipitation.
Stainless Steel 304 Threaded Fittings Specification
| Threaded Forged Fittings Specifications | ASTM A182/ ASME SA182 |
|---|---|
| Threaded Forged Fittings size | 1/8” NB to 4” NB ( Screwed-Threaded) |
| Threaded Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Threaded Forged Fittings Types | Threaded Fittings, Screwed Fittings |
| Threaded Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Threaded End-3000/ 6000/ 9000lbs |
| Threaded Forged Fittings Thread | NPT, BSPT, BSPP |
| Threaded Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Threaded Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | Threaded 90º Elbows, Threaded 45º Elbows, Threaded Tees, Threaded Cross, Threaded Couplings, Threaded Reducers, Threaded Inserts, Threaded Caps, Threaded Nipples, Threaded Unions, Threaded Forged Pipe Fittings, Threaded Equal Tees & Reducing Tees, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM A182 F304 Stainless Steel Threaded Fittings
| Products | Size | |
|---|---|---|
| ASTM A182 Stainless Steel F304 90° Threaded Elbow | ASTM A182 Stainless Steel F304 45° Threaded Elbow | Sizes 1/8″– 4″ |
| ASTM A182 Stainless Steel F304 Screwed Bushing | ASTM A182 Stainless Steel F304 Threaded Pipe Nipple | |
| ASTM A182 Stainless Steel F304 Threaded Pipe End Cap | ASTM A182 Stainless Steel F304 Screwed Coupling | |
| ASTM A182 Stainless Steel F304 Threaded Tee | ASTM A182 Stainless Steel F304 Threaded Union | |
| ASTM A182 Stainless Steel F304 Threaded Cross | ASTM A182 Stainless Steel F304 Threaded Insert | |
| ASTM A182 Stainless Steel F304 Threaded Forged Plug | ASTM A182 Stainless Steel F304 Threaded Street Elbow | |
ASTM A182 F304 Stainless Steel Threaded Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
Grade F304 Stainless Steel Threaded Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 11 | - |
ASTM A182 Stainless Steel 304 Threaded Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 304 Threaded Fittings Types

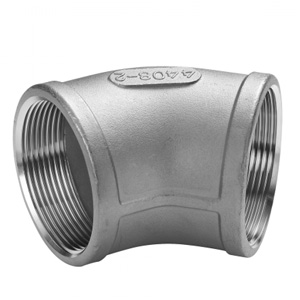

Stainless Steel 304 45° Threaded Elbow

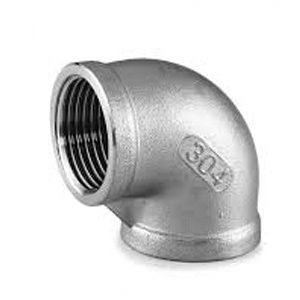

Stainless Steel 304 90° Threaded Elbow

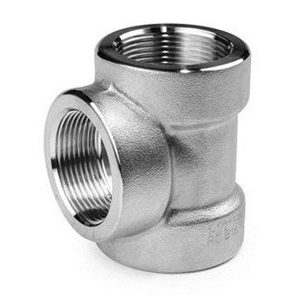

Stainless Steel 304 Threaded Equal Tee
Stainless Steel 304 Threaded Cross
Stainless Steel 304 Threaded Union
Stainless Steel 304 Threaded Full Coupling

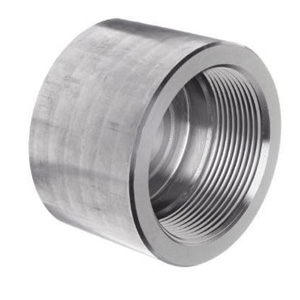

Stainless Steel 304 Threaded Pipe End Cap

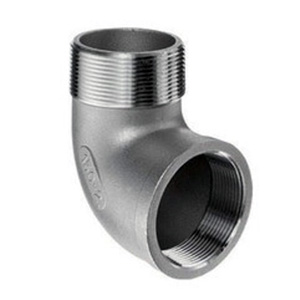

Stainless Steel 304 Threaded Street Elbow

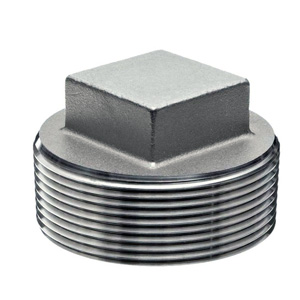

Stainless Steel 304 Threaded Plug

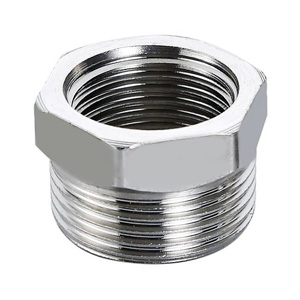

Stainless Steel 304 Threaded Bushing

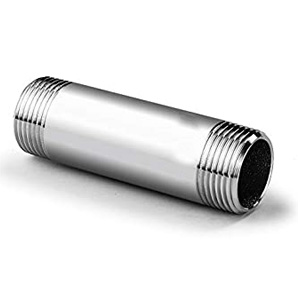

Stainless Steel 304 Threaded Nipples
Stainless Steel 304 Threaded Fittings Manufacturing Standards
| American Steel Forged Fittings Standard | |
| Standard Code | Standard Name |
| ANSI ASME SA-182 | Forged fittings |
| ANSI ASME B16.11 | Threaded forged fittings |
| MSS SP-79 | Threaded reducing Inserts |
| MSS SP-83 | Class 3000 steel Threaded Unions |
| MSS SP-95 | Swaged nipples and round plugs |
| MSS SP-97 | SW,TH and BW ends for integrally reinforced forged branch outlet |
Other Types of Grade 304 Stainless Steel Threaded Fittings in Stock
|
|
SS ASTM A182 F304 Threaded Fittings Class, Size & Wall Thickness
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 / XS | SCH 160 | XXS |
SS ASTM A182 304 Threaded Forged Fittings Size Range & Dimensions
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
